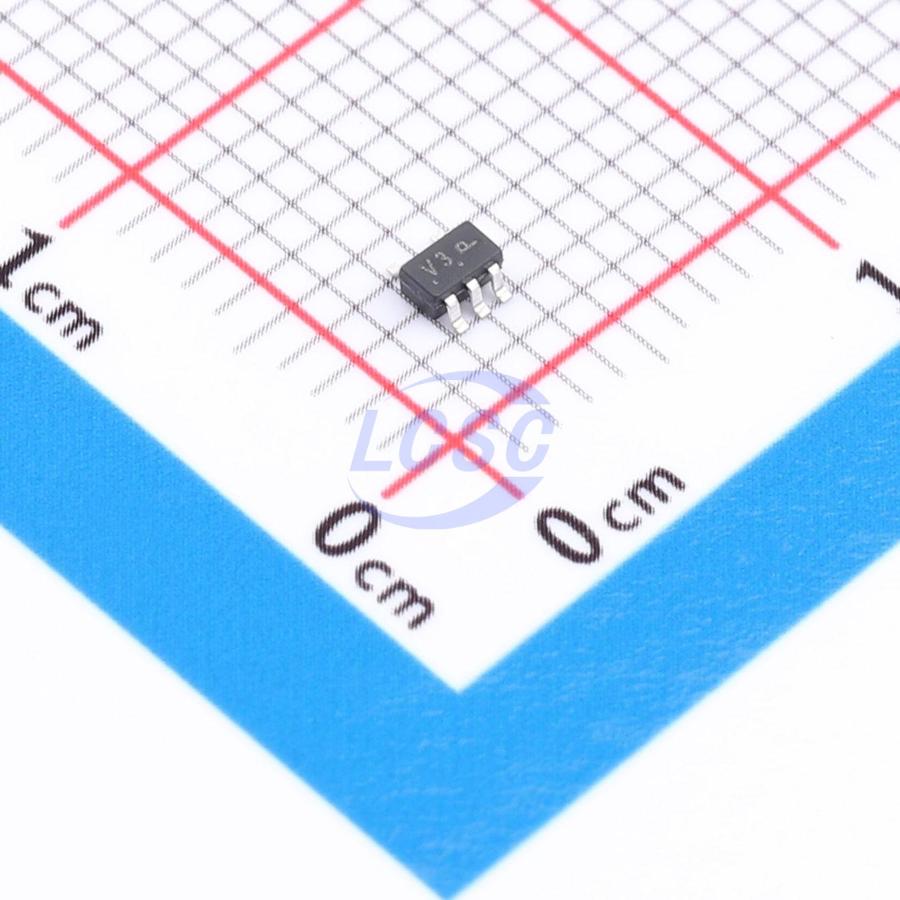

MC74VHC1G02DFT1G-TP
1uA 2V~5.5V 7.5ns@5.5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74VHC1G02DFT1G-TP
- Store part #
- C53100505
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,000 in stock
#C53100505
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.28 | ₹62.80 |
| 100+ | ₹4.93 | ₹493.00 |
| 300+ | ₹4.26 | ₹1,278.00 |
| 3,000+ | ₹3.76 | ₹11,280.00 |
| 6,000+ | ₹3.35 | ₹20,100.00 |
| 9,000+ | ₹3.15 | ₹28,350.00 |
10 × ₹6.28
₹62.80
excl. GST
₹74.10 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74VHC1G02DFT1G-TP
₹62.80 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 7.5ns@5.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.1 g
Overview
MC74VHC1G02 is a single 2-input NOR gate with the function Y = A+B (with overbar).
Key features
- Operating voltage range: 2.0~5.5V
- Low power consumption
- High noise immunity
- Balanced propagation delay
- Specified operating temperature range: -40°C to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | NC7S02P5X-TP#C42460220TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,440 | ₹6.51 · 2,440 in stock | View |
 | 74AHC1G02SE-TP#C52098182TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,980 | ₹6.38 · 2,980 in stock | View |
 | TP74AHC1G02C5#C52205179TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹7.38 · 2,990 in stock | View |
 | SN74AHC1G02DCKR-TP#C41408037TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 5,180 | ₹5.11 · 5,180 in stock | View |
 | 74HC1G02GW#C52205093TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,350 | ₹6.24 · 2,350 in stock | View |
