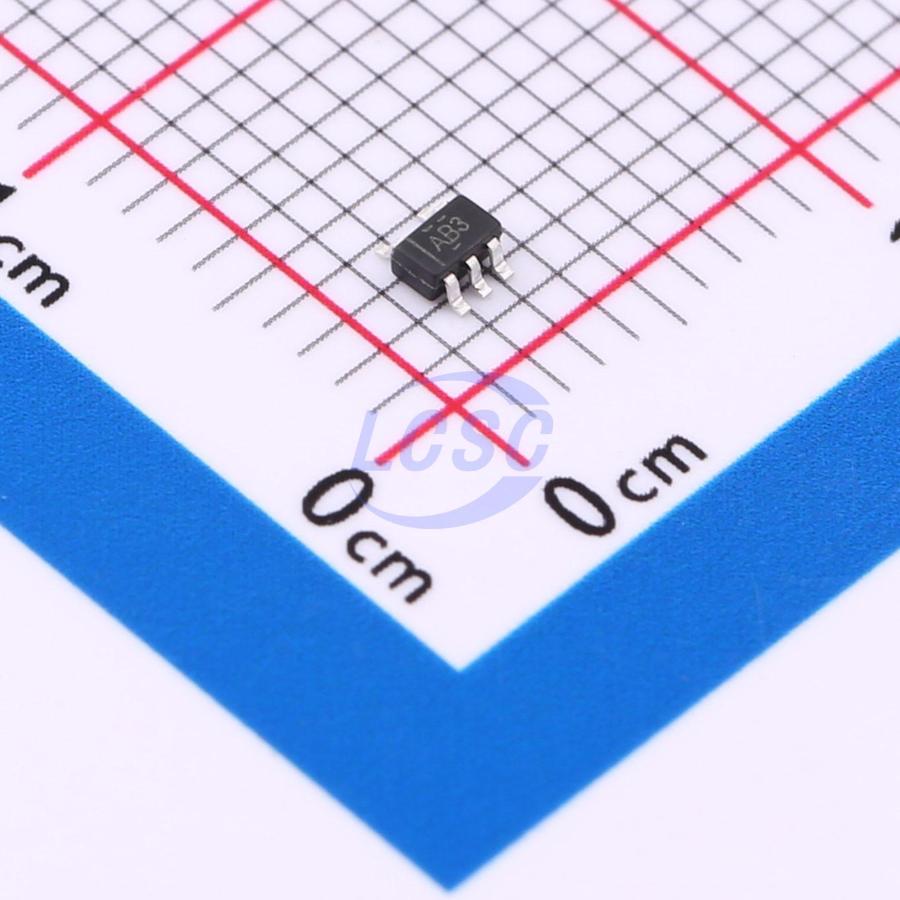

SN74AHC1G02DCKR-TP
1uA 2V~5.5V 7.9ns@3.3V,15pF SOT-353 Gates and Inverters
SOT-353RoHSActive
2-INPUT NOR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AHC1G02DCKR-TP
- Store part #
- C41408037
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,180 in stock
#C41408037
Stock & price checked 3 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.11 | ₹51.10 |
| 100+ | ₹4.00 | ₹400.00 |
| 300+ | ₹3.44 | ₹1,032.00 |
| 3,000+ | ₹3.02 | ₹9,060.00 |
| 6,000+ | ₹2.69 | ₹16,140.00 |
| 9,000+ | ₹2.51 | ₹22,590.00 |
10 × ₹5.11
₹51.10
excl. GST
₹60.30 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G02DCKR-TP
₹51.10 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - High
- 1.5V~3.85V
- Input Logic Level - Low
- 500mV~1.65V
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74AHC Series
- Output Logic Level - High
- 1.9V~4.5V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 25mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV~360mV
- Propagation Delay
- 7.9ns@3.3V,15pF
- Current - Output Low(IOL)
- 25mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.031 g
Overview
The SN74AHC1G02DCKR-TP is a 2-input NOR gate Device which provides the Function v = (A + B) (overline) in positive logic.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu-ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 2.0V to 5.5V
- ±24 mA Output Drive (VCC = 3.0V)
- High Noise Immunity
- Power Down Protection
- Compact package: SOT-353
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74VHC1G02DFT1G-TP#C53100505TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.28 · 3,000 in stock | View |
 | NC7S02P5X-TP#C42460220TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,440 | ₹6.51 · 2,440 in stock | View |
 | 74AHC1G02SE-TP#C52098182TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,980 | ₹6.38 · 2,980 in stock | View |
 | TP74AHC1G02C5#C52205179TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹7.38 · 2,990 in stock | View |
 | TC7SH02FU-TP#C54195008TECH PUBLIC · SOT353 | TECH PUBLIC | SOT353 | 2,990 | ₹6.34 · 2,990 in stock | View |
