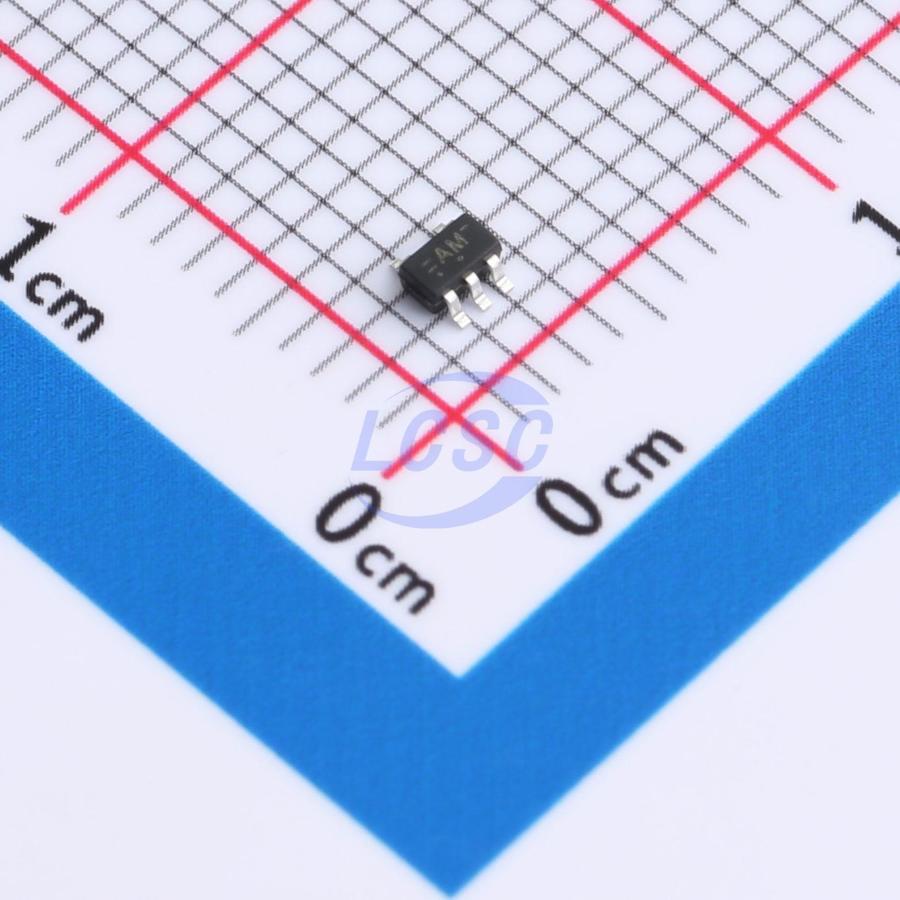

74AHC1G125GW-TP
2V~5.5V 1 1 3ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
BUS BUFFER/LINE DRIVER 3-STATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G125GW-TP
- Store part #
- C42394077
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,700 in stock
#C42394077
Stock & price checked 46 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹3.11 | ₹31.10 |
| 100+ | ₹3.04 | ₹304.00 |
| 300+ | ₹2.99 | ₹897.00 |
| 1,000+ | ₹2.95 | ₹2,950.00 |
10 × ₹3.11
₹31.10
excl. GST
₹36.70 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G125GW-TP
₹31.10 for 10 + GST
Specifications
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 10uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 32mA
- Series
- 74AHC
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3ns@5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
The is a single bus buffer/line driver with 3 - state output. When the output enable (OE) is high the output will be disabled. In contrast, when the OE(overline) is low, true data will pass from A input to the Y output. This device has power - down protective circuit to prevent the device from destruction when it is powered down.
Applications
- AV Receiver
- Audio Dock:Portable
- Blu - ray Player and Home Theater
- Embedded PC
- Personal Digital Assistant(PDA)
- Power:Telecom/Server AC/DC Supply:Single
- Controller:Analog and Digital
- Solid State Drive(SSD):Client and Enterprise
- Wireless Headset,Keyboard,and Mouse
Key features
- Operate from 2.0V to 5.5V
- Inputs Accept Voltages to 5.5V
- High Noise Immunity
- Low Power Dissipation
- ESD Protection Exceeds JESD 22
- -2000 - V Human - Body Model (A114 - A)
- -200 - V Machine Model (A115 - A)
- -1000 - V Charged - Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G125DCKR-TP#C42394023TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,860 | ₹8.23 · 3,860 in stock | View |
 | TC7SH125FU-TP#C54195014TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,980 | ₹6.34 · 2,980 in stock | View |
 | TC7SH126FU-TP#C54195016TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.34 · 3,000 in stock | View |
 | TC7SH34FU-TP#C54195024TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹6.34 · 3,000 in stock | View |
 | TC7SH17FU-TP#C54195020TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,960 | ₹6.34 · 2,960 in stock | View |
