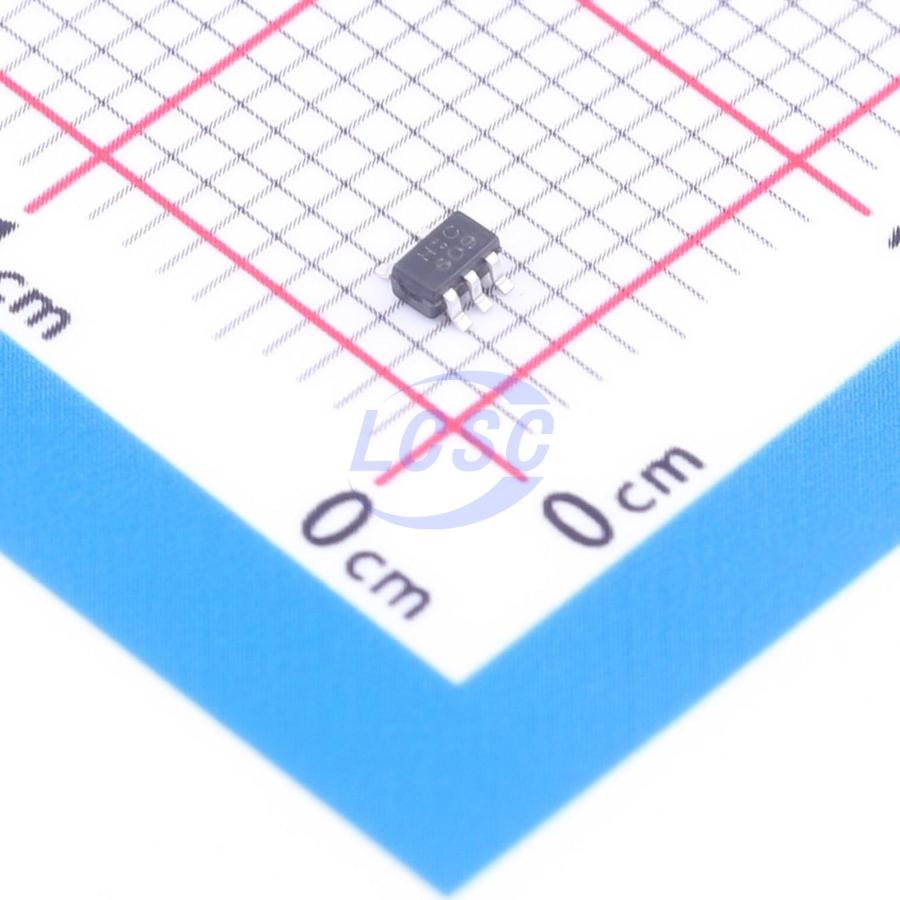

TC7SH126FU-TP

The TC7SH126 is a single bus buffer gate. The device is designed for Vcc operation from 2 V to 5.5 V and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. The TC7SH126 is a single line driver with tri-state outputs. When the output enable input is low, the output is disabled. The TC7SH126 is available in SOT23-5 and SOT353 packages.

Applications

• Cable modem termination systems
• High-speed data acquisition and generation
• Motor control: high voltage
• Power line communication modems
• Solid-state drives: internal or external
• Video broadcast and infrastructure: scalable platforms
• Video broadcast: IP-based multi-format transcoders
• Video communication systems

Key features

• Wide supply voltage range: 2 V to 5.5 V
• Maximum propagation delay TpD of 4.5 ns at Vcc = 3.3 V
• Low power consumption, maximum Icc of 10 μA
• Output drive current of ±24 mA at Vcc = 3.3 V
• Latch-up performance exceeds 100 mA per JESD 78 Class II
• ESD protection exceeds JESD 22
• HBM ESD 2000 V (A114-A)
• CDM ESD 1000 V (C101)
• Operating temperature range: -40°C to 125°C
• Available packages: SOT23-5 and SOT353
