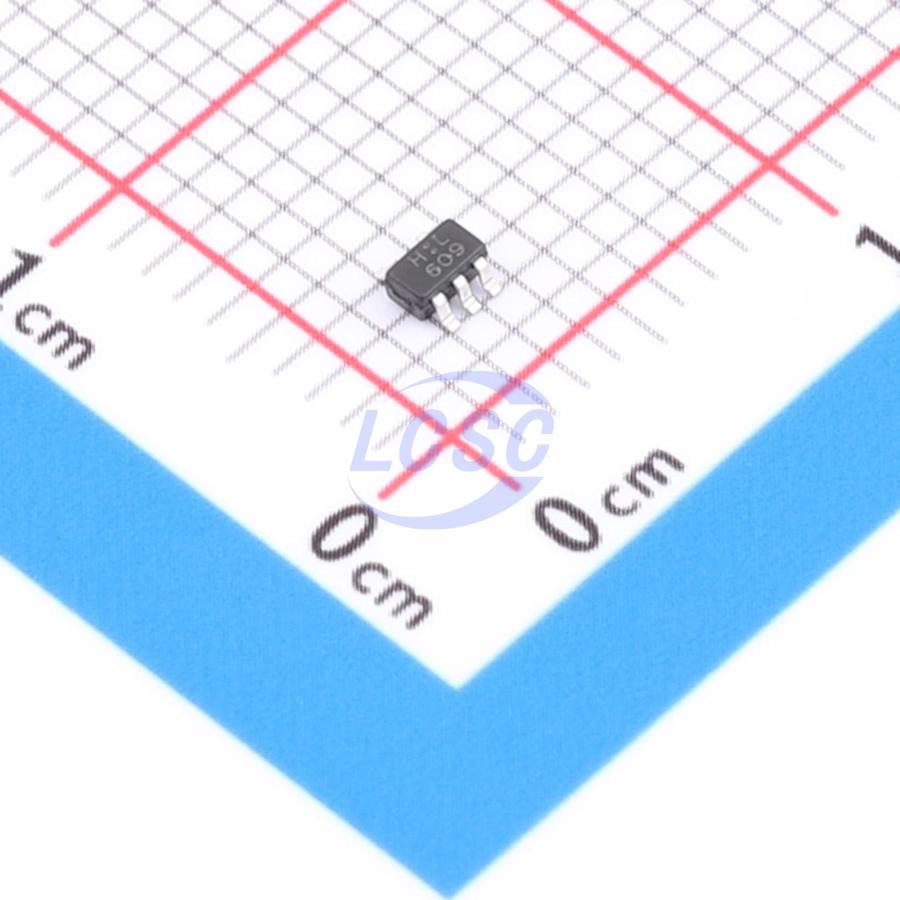

TC7SH17FU-TP
Schmitt trigger 2V~5.5V 1 1 6ns@5.5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TC7SH17FU-TP
- Store part #
- C54195020
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,960 in stock
#C54195020
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.34 | ₹63.40 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.34
₹63.40
excl. GST
₹74.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SH17FU-TP
₹63.40 for 10 + GST
Specifications
- Current - Output High(IOH)
- 32mA
- Input type
- Schmitt trigger
- Voltage - Supply
- 2V~5.5V
- Series
- TC7SH
- Current - Output Low(IOL)
- 32mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 10uA
- Propagation Delay
- 6ns@5.5V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
TC7SH17 is a single Schmitt-trigger buffer. The device is designed for operation with VCC ranging from 2V to 5.5V and can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V environments. The TC7SH17 contains one buffer that performs the Boolean function Y = A. This CMOS device offers high output drive capability while maintaining low quiescent power consumption over a wide VCC operating range. The TC7SH17 is available in SOT23-5 and SOT353 packages.
Applications
- Active Noise Cancellation (ANC)
- Blood Pressure Monitor
- Embedded PC
- SSD: Client and Enterprise
- TV: LCD/Digital and HDTV
- Tablet: Enterprise
- Video Analytics: Server
- Wireless Headset, Keyboard and Mouse
- Power Supply: Telecom/Server AC/DC Controller
Key features
- Wide supply voltage range: 2V to 5.5V
- Maximum propagation delay 6.5ns at VCC = 3.3V
- Low power consumption, 10μA (ICC maximum)
- Output drive current ±24mA at VCC = 3.3V
- Latch-up performance exceeds 100mA per JESD 78 Class II
- ESD protection exceeds JESD 22
- 2000V Human Body Model (A114-A)
- 1000V Charged Device Model (C101)
- Operating temperature range: -40°C to 125°C
- Available packages: SOT23-5 and SOT353
