TECH PUBLIC

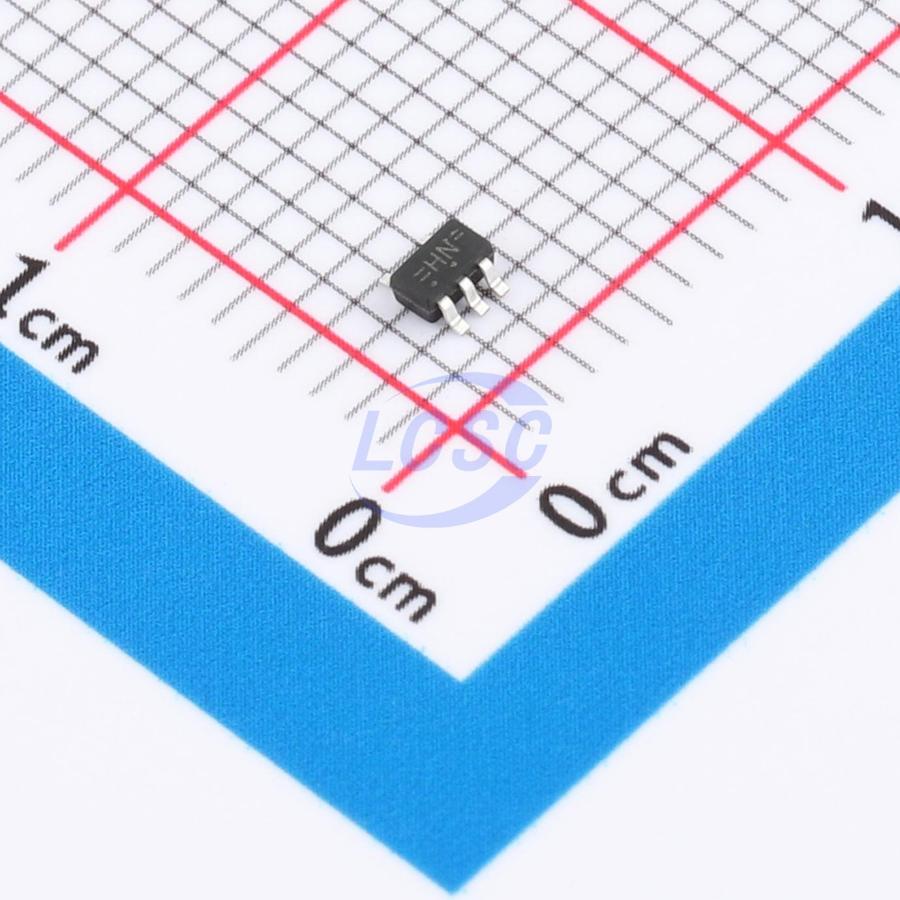

74HC1G126GW

2V~6V 1 1 21ns@6.0V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers

SOT-353RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74HC1G126GW
Store part #: C52205101
Package / case: SOT-353
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,340 in stock

#C52205101

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹7.28	₹72.80
100+	₹5.72	₹572.00
300+	₹4.93	₹1,479.00
3,000+	₹4.35	₹13,050.00
6,000+	₹3.88	₹23,280.00
9,000+	₹3.65	₹32,850.00

Quantity (min 10, multiples of 10)

10 × ₹7.28

₹72.80

excl. GST

₹85.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74HC1G126GW

₹72.80 for 10 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 7.8mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Operating Temperature: -40℃~+125℃
Number of Elements: 1
Quiescent Supply Current: 10uA
Propagation Delay: 21ns@6.0V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

74HC1G126 is a single buffer/line driver with 3-state output. The inputs include clamping diodes, which enables the use of current-limiting resistors to interface the inputs to voltages exceeding VCC.

Applications

AV receivers
Audio docks
IP phones
Embedded PCs
Power supplies

Key features

Operating voltage range: 2.0~6.0V
High noise immunity
Balanced propagation delay
Low power consumption, max I<sub>CC</sub> of 10μA
ESD protection exceeds JESD 22 standard
Human Body Model: 2000V
Machine Model: 200V
Charged Device Model: 1000V

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
74HC1G125GW#C52205099TECH PUBLIC · SOT-353	TECH PUBLIC	SOT-353	5,450	₹7.58 · 5,450 in stock	View
74AHC1G126GW-TP#C46472323TECH PUBLIC · SOT-353	TECH PUBLIC	SOT-353	1,220	₹5.46 · 1,220 in stock	View
SN74AHC1G126DCKR-TP#C46472324TECH PUBLIC · SOT-353	TECH PUBLIC	SOT-353	1,620	₹5.69 · 1,620 in stock	View
74AHC1G126SE-TP#C52098174TECH PUBLIC · SOT-353	TECH PUBLIC	SOT-353	2,890	₹6.42 · 2,890 in stock	View
SN74AHC1G125DCKR-TP#C42394023TECH PUBLIC · SOT-353	TECH PUBLIC	SOT-353	3,860	₹8.23 · 3,860 in stock	View
