TECH PUBLIC

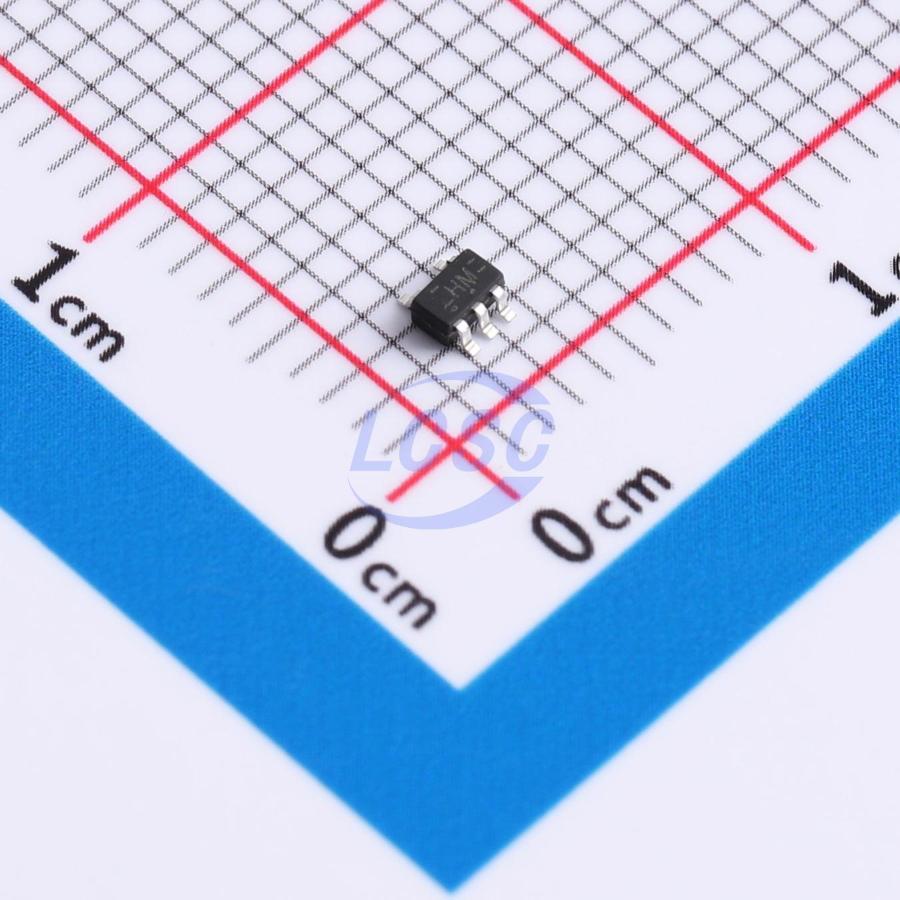

74HC1G125GW

2V~6V 1 1 10ns@4.5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers

SOT-353RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: 74HC1G125GW
Store part #: C52205099
Package / case: SOT-353
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

5,450 in stock

#C52205099

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹7.58	₹75.80
100+	₹5.98	₹598.00
300+	₹5.17	₹1,551.00
3,000+	₹4.58	₹13,740.00
6,000+	₹4.09	₹24,540.00
9,000+	₹3.85	₹34,650.00

Quantity (min 10, multiples of 10)

10 × ₹7.58

₹75.80

excl. GST

₹89.44 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74HC1G125GW

₹75.80 for 10 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 7.8mA
Series: 74HC
Voltage - Supply: 2V~6V
Output Type: Tri-State
Current - Output Low(IOL): 7.8mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Propagation Delay: 10ns@4.5V,50pF

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

The 74HC1G125 is a dual buffer. The inputs include clamping diodes, enabling input interfacing to voltages exceeding VCC using current-limiting resistors.

Applications

AV receivers
Audio docking stations
IP phones
Embedded PCs
Personal digital assistants
Power supplies

Key features

Operating voltage range: 2.0~6.0V
High noise immunity
Balanced propagation delay
Low power consumption, max ICC of 10μA
ESD protection exceeding JESD 22 standard
Human Body Model (A114-A) 2000V
Machine Model (A115-A) 200V
Charged Device Model (C101) 1000V
