TECH PUBLIC

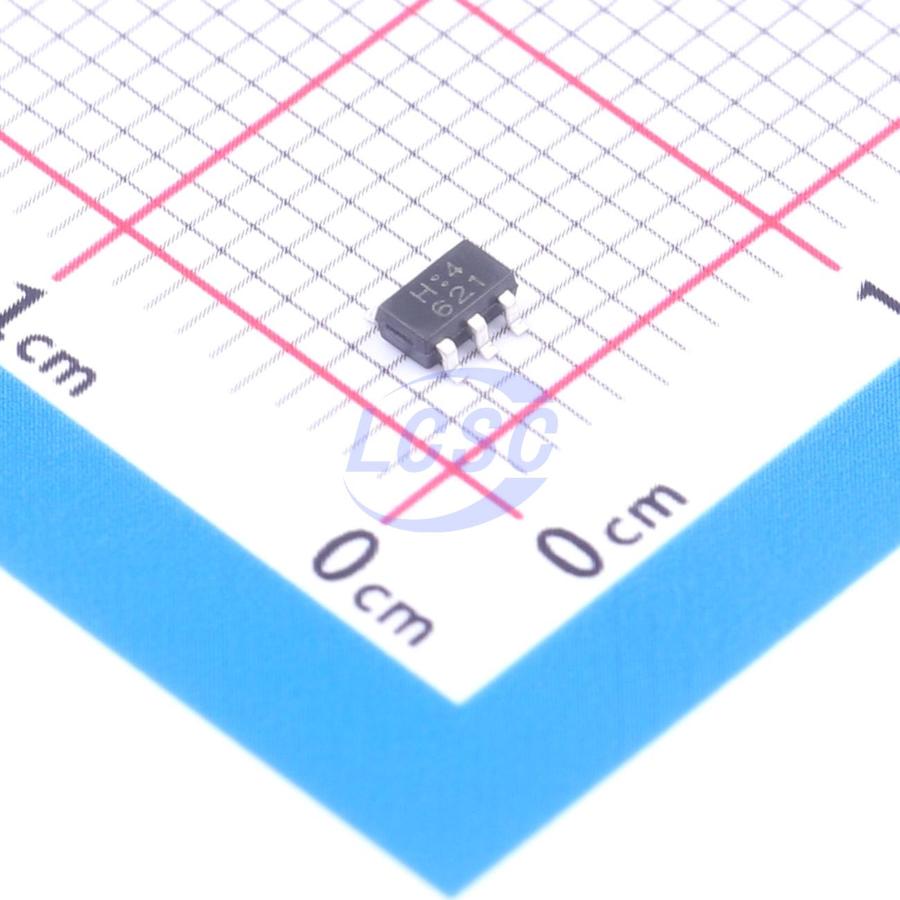

TC7SH32F-TP

10uA 2V~5.5V 7.2ns@2V,15pF SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TC7SH32F-TP
Store part #: C54195021
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,000 in stock

#C54195021

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹5.81	₹58.10
100+	₹4.58	₹458.00
300+	₹3.97	₹1,191.00
3,000+	₹3.51	₹10,530.00
6,000+	₹3.14	₹18,840.00
9,000+	₹2.95	₹26,550.00

Quantity (min 10, multiples of 10)

10 × ₹5.81

₹58.10

excl. GST

₹68.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TC7SH32F-TP

₹58.10 for 10 + GST

Specifications

Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.3V;2.4V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 2V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Propagation Delay: 7.2ns@2V,15pF
Output Logic Level - Low: 400mV;450mV;500mV;650mV
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

The TC7SH32 is a single 2-input OR gate. The device is designed for operation with VCC ranging from 2V to 5.5V and can be driven by 3.3V or 5V devices. This feature allows these devices to be used as translators in mixed 3.3V and 5V environments. The TC7SH32 performs the Boolean function Y = A + B or Ȳ = Ā · B̄ in positive logic. This CMOS device maintains low quiescent power consumption across a wide VCC operating range while providing high output drive capability. The TC7SH32 is available in SOT23-5 and SOT353 packages.

Applications

Active Noise Cancellation (ANC)
Blood Pressure Monitor
Embedded PC
SSD: Client and Enterprise
TV: LCD/Digital and HDTV
Tablet: Enterprise
Video Analytics: Server
Wireless Headset, Keyboard and Mouse
Power Supply: Telecom/Server AC/DC Controller

Key features

Wide supply voltage range: 2V to 5.5V
Maximum propagation delay of 3.6ns at VCC = 3.3V
Low power consumption, maximum ICC of 10μA
Output drive current of ±24mA at VCC = 3.3V
Latch-up performance exceeds 100mA per JESD 78 Class II
ESD protection exceeds JESD 22
Human Body Model 2000V (A114-A)
Charged Device Model 1000V (C101)
Operating temperature range: -40°C to 125°C
Available packages: SOT23-5 and SOT353
