NexperiaDatasheet (PDF)

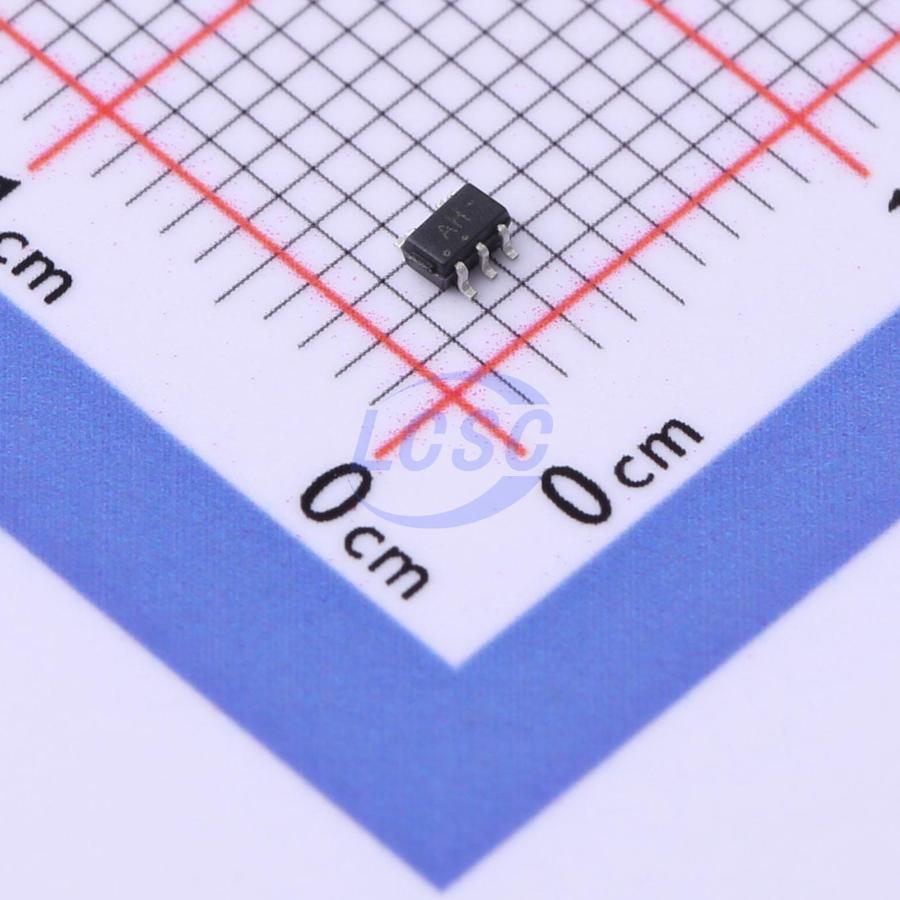

74AHC1G86GW,125
StandardCMOS 2V~5.5V 4.9ns@5V,50pF 40uA SOT-353-5 Gates and Inverters RoHS
SOT-353-5ROHS3 CompliantActive
2-input EXCLUSIVE-OR gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC1G86GW,125
- Store part #
- C554319
- Package / case
- SOT-353-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,965 in stock
#C554319
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.57 | ₹72.85 |
| 50+ | ₹11.44 | ₹572.00 |
| 150+ | ₹9.88 | ₹1,482.00 |
| 500+ | ₹8.71 | ₹4,355.00 |
| 3,000+ | ₹7.77 | ₹23,310.00 |
| 6,000+ | ₹7.30 | ₹43,800.00 |
5 × ₹14.57
₹72.85
excl. GST
₹85.96 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G86GW,125
₹72.85 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 4.9ns@5V,50pF
- Output Logic Level - Low
- 100mV;550mV
- Features
- Overvoltage-tolerant input
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.4V;3.7V
- Quiescent Current(Iq)
- 40uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.03 g
Overview
The 74AHC1G86; 74AHCT1G86 is a single 2-input EXCLUSIVE-OR gate. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Applications
- Level shifting in mixed-voltage environments
Key features
- Wide supply voltage range from 2.0 to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Symmetrical output impedance
- Balanced propagation delays
- Input levels: For 74AHC1G86: CMOS level; For 74AHCT1G86: TTL level
- Multiple package options
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 ℃ to +125 ℃
