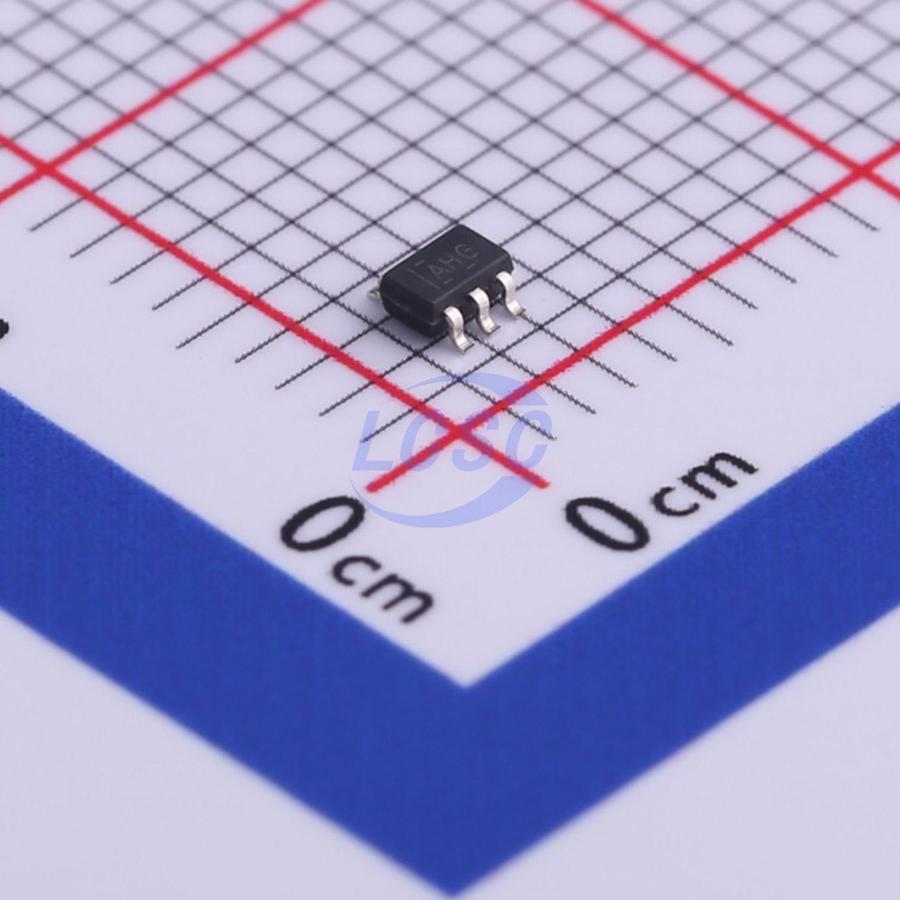

SN74AHC1G86DCKR
Schmitt trigger 2V~5.5V 8.8ns@5V,50pF 1uA SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single 2-Input Exclusive-OR Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHC1G86DCKR
- Store part #
- C484740
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,710 in stock
#C484740
Stock & price checked 34 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.14 | ₹91.40 |
| 100+ | ₹7.26 | ₹726.00 |
| 300+ | ₹6.32 | ₹1,896.00 |
| 3,000+ | ₹5.36 | ₹16,080.00 |
| 6,000+ | ₹4.80 | ₹28,800.00 |
| 9,000+ | ₹4.51 | ₹40,590.00 |
10 × ₹9.14
₹91.40
excl. GST
₹107.85 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G86DCKR
₹91.40 for 10 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;440mV
- Propagation Delay
- 8.8ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.017 g
Overview
The SN74AHC1G86 is a single 2-input exclusive-OR gate. The device performs the Boolean function Y = A Φ(overline) x B(overline) or Y = A(overline)B + A·B(overline) in positive logic.
Applications
- Cameras
- Programmable Logic Controllers
- Telecom Infrastructure
- Wireless Headsets
- Motor Drives and Controls
- TVs
- Set-top-boxes
- Audio
Key features
- Operating Range of 2 V to 5.5 V
- Max tpd of 8 ns at 5 V
- Low Power Consumption, 10 μA Max ICC
- ±8-mA Output Drive at 5 V
- Schmitt-Trigger Action at All Inputs Makes the Circuit Tolerant for Slower Input Rise and Fall Time
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22 – 2000-V Human-Body Model, 200-V Machine Model, 1000-V Charged-Device Model
