DIODES

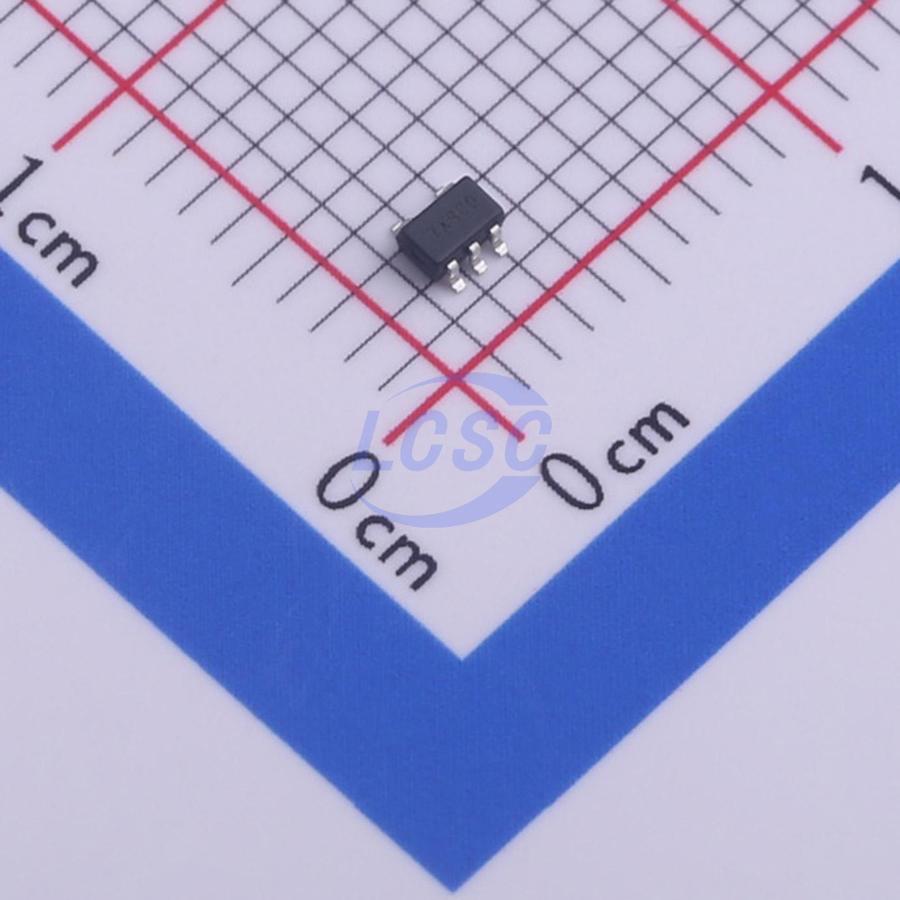

74AHC1G86SE-7

Schmitt trigger 2V~5.5V 8.8ns@5V,50pF 1uA SOT-353 Gates and Inverters RoHS

SOT-353ROHS3 CompliantActive

SINGLE 2 INPUT EXCLUSIVE-OR GATE

Manufacturer: DIODES
Manufacturer part #: 74AHC1G86SE-7
Store part #: C460494
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,130 in stock

#C460494

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹11.76	₹117.60
100+	₹9.83	₹983.00
300+	₹8.86	₹2,658.00
3,000+	₹8.14	₹24,420.00
6,000+	₹7.55	₹45,300.00
9,000+	₹7.26	₹65,340.00

Quantity (min 10, multiples of 10)

10 × ₹11.76

₹117.60

excl. GST

₹138.77 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G86SE-7

₹117.60 for 10 + GST

Specifications

Input Type: Schmitt trigger
output type: Push-pull
Logic Family: 74AHC Series
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 360mV
Propagation Delay: 8.8ns@5V,50pF
Input Logic Level - Low: 500mV~1.65V
Input Logic Level - High: 1.5V~3.85V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 3.94V
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 8mA
Number of Channels: 1;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.015 g

Overview

The 74AHC1G86 is a single 2-input positive exclusive-OR gate with a standard push-pull output. The device is designed for operation with a power supply range of 2.0V to 5.5V. The gate performs the positive Boolean function: Y = A ⊕ B or Y = A¯B + A B¯

Applications

General Purpose Logic
Wide array of products such as:
PCs, networking, notebooks, netbooks, PDAs
Computer peripherals, hard drives, CD/DVD ROM
TV, DVD, DVR, set top box
Personal Navigation / GPS
MP3 players, Cameras, Video Recorders

Key features

Supply Voltage Range from 2.0V to 5.5V
± 8 mA Output Drive at 5.0V
CMOS low power consumption
Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for Slower Input Rise and Fall Time
ESD Protection per JESD 22:
Exceeds 200-V Machine Model (A115-A)
Exceeds 2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
Latch-Up Exceeds 100mA per JESD 78, Class II
SOT25 and SOT353: Assembled with “Green” Molding Compound (no Br, Sb) Lead Free Finish / RoHS Compliant

Alternatives

Similar parts — check the datasheet before substituting.
