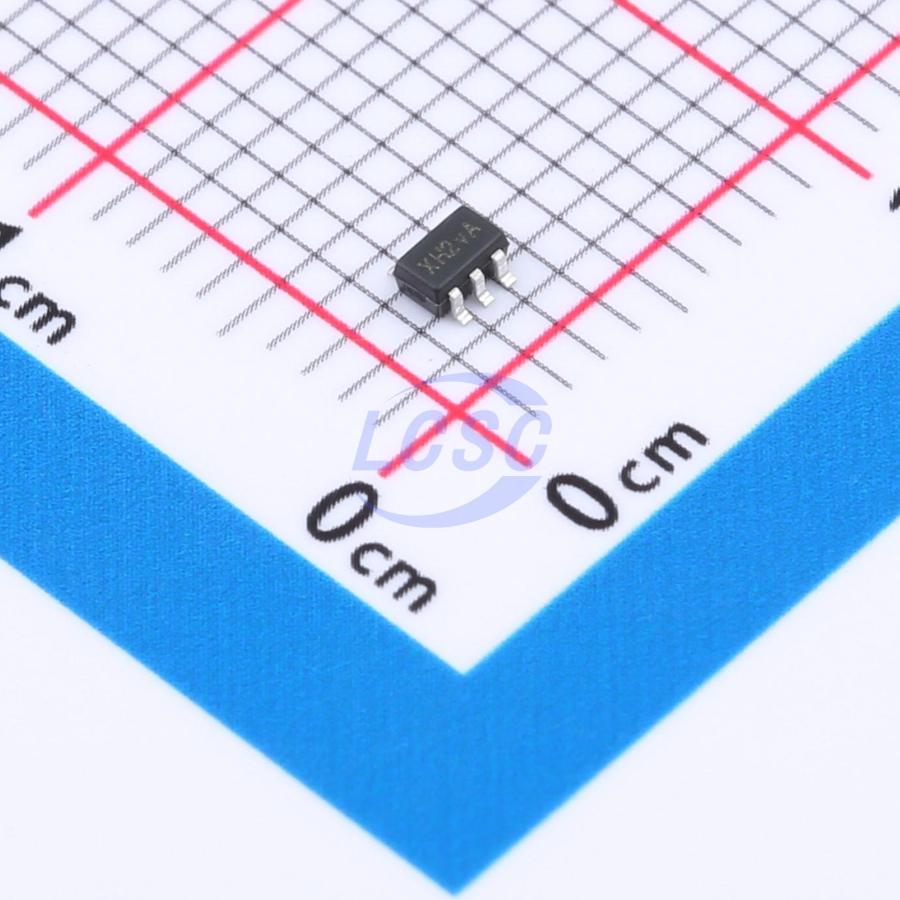

SINGLE 2 INPUT POSITIVE NAND GATE

Manufacturer: DIODES
Manufacturer part #: 74AUP1G00SE-7
Store part #: C842317
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,745 in stock

#C842317

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹21.10	₹105.50
50+	₹18.60	₹930.00
150+	₹17.52	₹2,628.00
500+	₹16.18	₹8,090.00
3,000+	₹15.58	₹46,740.00
6,000+	₹15.23	₹91,380.00

Quantity (min 5, multiples of 5)

5 × ₹21.10

₹105.50

excl. GST

₹124.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AUP1G00SE-7

₹105.50 for 5 + GST

Specifications

Input Type: Schmitt trigger
output type: Push-pull
Logic Family: 74AUP Series
Voltage - Supply: 800mV~3.6V
Output Logic Level - Low: 450mV
Propagation Delay: 6.5ns@3.3V,30pF
Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 700mV~900mV
Input Logic Level - High: 1.6V~2V
Output Logic Level - High: 2.55V
Quiescent Current(Iq): 900nA
Current - Output High(IOH): 4mA
Number of Channels: 1;2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.048 g

Overview

The Advanced Ultra Low Power (AUP) CMOS logic family is designed for low power and extended battery life in portable applications. The 74AUP1G00 is a single two-input positive NAND gate with a standard push-pull output designed for operation over a power supply range of 0.8V to 3.6V. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = (A • B)(overline) or Y = A(overline) + B(overline)

Applications

Tablets, E-readers
Cell Phones, Personal Navigation / GPS
MP3 Players, Cameras, Video Recorders
PCs, Ultrabooks, Notebooks, Netbooks
Computer Peripherals, Hard Drives, SSDs, CD/DVD ROMs
TVs, DVDs, DVRs, Set-Top Boxes

Key features

Advanced Ultra Low Power (AUP) CMOS
Supply Voltage Range from 0.8V to 3.6V
±4 mA Output Drive at 3.0V
Low Static Power Consumption ΔIcc < 0.9 μA
Low Dynamic Power Consumption CpD = 6 pF (Typical at 3.6V)
Schmitt Trigger Action at all inputs makes the circuit tolerant for slower input rise and fall time. The hysteresis is typically 250 mV at VCC = 3.0V
IOFF Supports Partial-Power-Down Mode Operation
ESD Protection Exceeds JESD 22 2000-V Human Body Model (A114)
Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Leadless Packages Named per JESD30E
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
