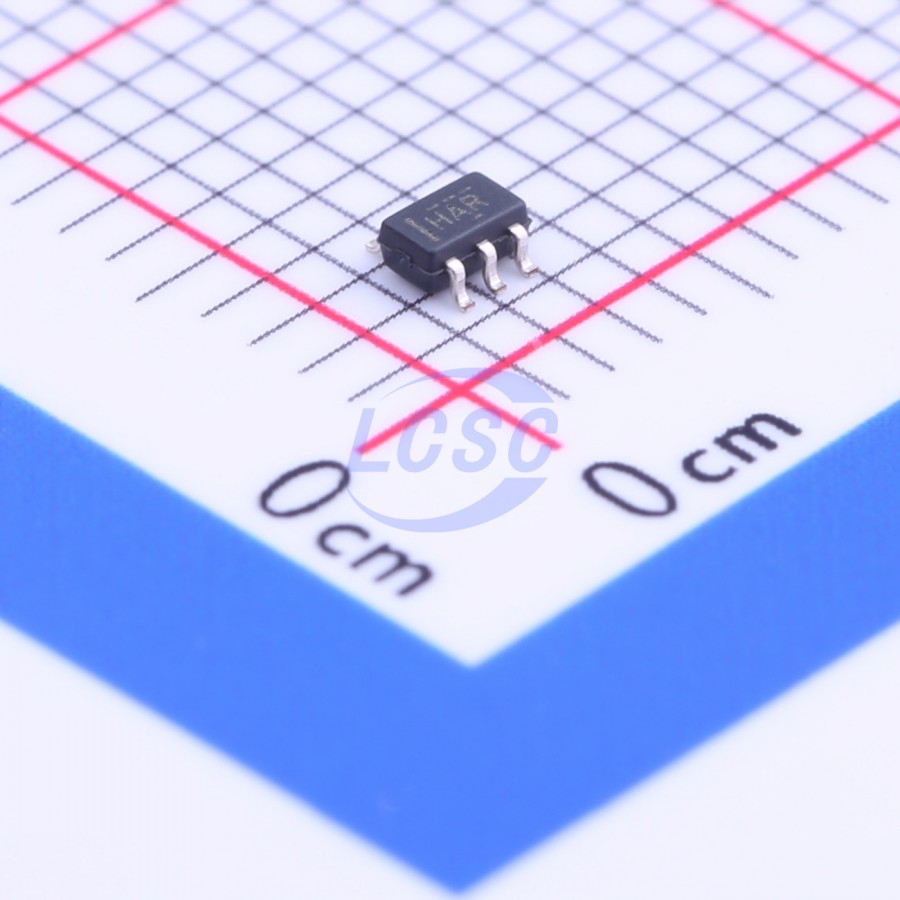

SN74AUP1G00DCKR

Schmitt trigger 800mV~3.6V 6.5ns@3.3V,30pF 500nA SC-70-5 Gates and Inverters RoHS

SC-70-5ROHS3 CompliantActive

Low-Power Single 2-Input Positive-NAND Gate

Manufacturer: TI
Manufacturer part #: SN74AUP1G00DCKR
Store part #: C206053
Package / case: SC-70-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,682 in stock

#C206053

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹45.10	₹45.10
10+	₹36.00	₹360.00
30+	₹31.66	₹949.80
100+	₹27.54	₹2,754.00
500+	₹26.46	₹13,230.00
1,000+	₹25.81	₹25,810.00

Quantity (min 1)

1 × ₹45.10

₹45.10

excl. GST

₹53.22 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74AUP1G00DCKR

₹45.10 for 1 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74AUP Series
Voltage - Supply: 800mV~3.6V
Output Logic Level - Low: 450mV
Propagation Delay: 6.5ns@3.3V,30pF
Features: Live insertion protection;Local shutdown mode;Rear drive protection;Overvoltage-tolerant input
Input Logic Level - Low: 700mV~900mV
Input Logic Level - High: 1.6V~2V
Operating Temperature: -40℃~+85℃
Output Logic Level - High: 2.6V~2.72V
Quiescent Current(Iq): 500nA
Current - Output High(IOH): 4mA
Number of Channels: 1;2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.033 g

Overview

This single 2-input positive-NAND gate performs the Boolean function Y (dot equals) AB (overline) or Y = A (overline) + B (overline) in positive logic.

Applications

ATCA Solutions
Active Noise Cancellation (ANC)
Barcode Scanner
Blood Pressure Monitor
CPAP Machine
Cable Solutions
DLP 3D Machine Vision, Hyperspectral Imaging, Optical Networking, and Spectroscopy
E-Book
Embedded PC
Field Transmitter: Temperature or Pressure Sensor
Fingerprint Biometrics
HVAC: Heating, Ventilating, and Air Conditioning
Network-Attached Storage (NAS) Server
Motherboard and PSU
Software Defined Radio (SDR)
TV: High-Definition (HDTV), LCD, and Digital Video Communications System
Wireless Data Access Card, Headset, Keyboard, Mouse, and LAN Card
X-ray: Baggage Scanner, Medical, and Dental

Key features

ESD Performance Tested Per JESD 22 2000-V Human-Body Model (A114-B, Class II) 1000-V Charged-Device Model (C101)
Available in the Ultra Small 0.64 mm² Package (DPW) with 0.5 mm Pitch
Low Static-Power Consumption (I₍CC₎ = 0.9 μA Max)
Low Dynamic-Power Consumption ΔCₚd = 4 pF Typical at 3.3 V
Low Input Capacitance Cᵢ = 1.5 pF Typical
Low Noise Overshoot and Undershoot < 10% of V₍CC₎
|₍off₎ Supports Live Insertion, Partial-Power-Down Mode, and Back-Drive Protection
Input Hysteresis Allows Slow Input Transition and Better Switching Noise Immunity at Input (V₍hys₎ = 250 mV Typical at 3.3 V)
Wide Operating V₍CC₎ Range of 0.8 V to 3.6 V
Optimized for 3.3-V Operation
3.6-V I/O Tolerant to Support Mixed-Mode Signal Operation
t₍pd₎ = 4.8 ns Maximum at 3.3 V
Suitable for Point-to-Point Applications
Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
74AUP1G00SE-7#C842317DIODES · SOT-353	DIODES	SOT-353	2,745	₹21.10 · 2,745 in stock	View
TP74AUP1G00C5#C51886116TECH PUBLIC · SOT-353	TECH PUBLIC	SOT-353	2,990	₹5.93 · 2,990 in stock	View
74AUP1G00GW-Q100H#C554894Nexperia · TSSOP-5-1.3mm	Nexperia	TSSOP-5-1.3mm	100	₹26.14 · 100 in stock	View
SN74AUP1G00DCKR-TP#C51886118TECH PUBLIC · SOT-353	TECH PUBLIC	SOT-353	2,930	₹5.32 · 2,930 in stock	View
74AUP1G00GW-TP#C51886117TECH PUBLIC · SOT-353	TECH PUBLIC	SOT-353	2,570	₹5.01 · 2,570 in stock	View
