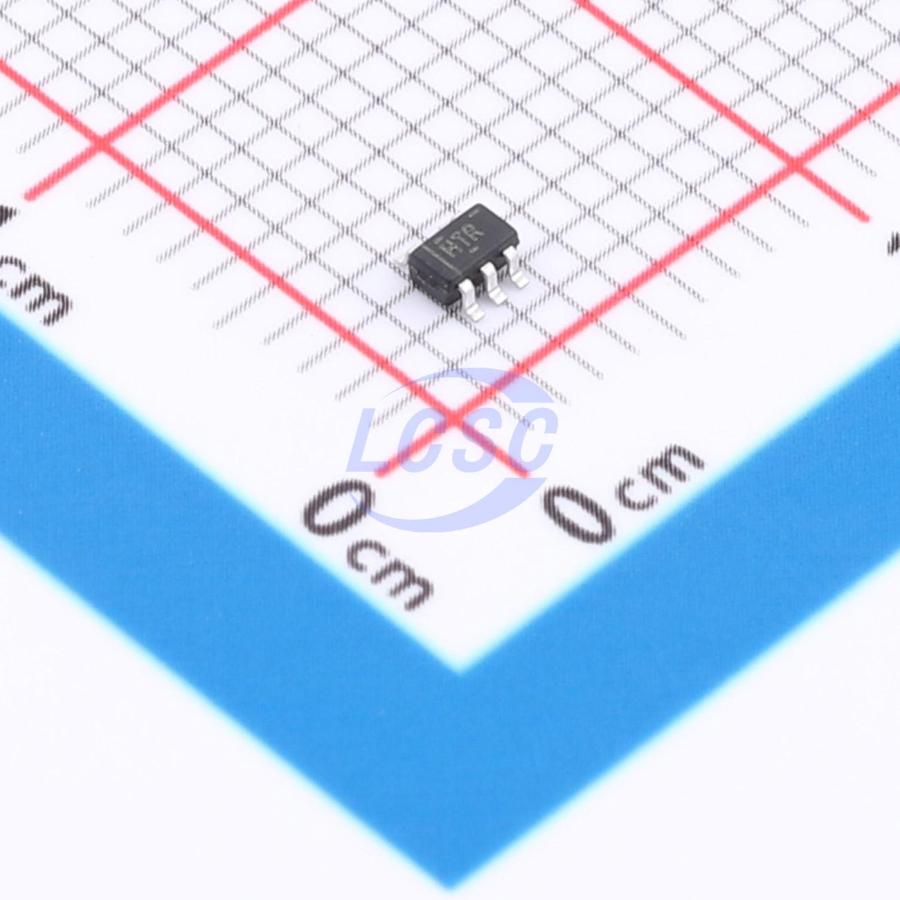

74AUP1G06GW-TP
0.8V~3.6V 1 1 2.2ns@3.3V,5pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP1G06GW-TP
- Store part #
- C51886135
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,495 in stock
#C51886135
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.03 | ₹50.15 |
| 50+ | ₹7.87 | ₹393.50 |
| 150+ | ₹6.79 | ₹1,018.50 |
| 500+ | ₹5.98 | ₹2,990.00 |
| 3,000+ | ₹5.33 | ₹15,990.00 |
| 6,000+ | ₹5.00 | ₹30,000.00 |
5 × ₹10.03
₹50.15
excl. GST
₹59.18 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP1G06GW-TP
₹50.15 for 5 + GST
Specifications
- Function
- Power-off isolation
- Series
- 74AUP
- Voltage - Supply
- 0.8V~3.6V
- Current - Output Low(IOL)
- 4mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 500nA
- Propagation Delay
- 2.2ns@3.3V,5pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The 74AUP1G06GW-TP is a single inverting buffer with open-drain output, implementing the function Y = Ā in positive logic. The open-drain output can be connected with other open-drain outputs to realize active-low wired-OR or active-high wired-AND functions.
Applications
- AV receivers
- Audio docking stations
- Embedded PCs
- Solid-state drives
- Wireless headphones, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V ~ 3.6V
- Inputs tolerant up to 3.6V
- I_OFF supports partial power-down mode
- Low quiescent current; I_CC = 0.5μA (max)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AUP1G07DCKR-TP#C49230996TECH PUBLIC · SOT353 | TECH PUBLIC | SOT353 | 3,660 | ₹9.80 · 3,660 in stock | View |
 | TP74AUP1G07C5#C49231004TECH PUBLIC · SOT353 | TECH PUBLIC | SOT353 | 2,900 | ₹11.58 · 2,900 in stock | View |
 | 74AUP1G240GW-TP#C51939524TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹7.21 · 2,990 in stock | View |
 | 74AUP1G07GW-TP#C49230940TECH PUBLIC · SOT353 | TECH PUBLIC | SOT353 | 2,730 | ₹9.80 · 2,730 in stock | View |
 | 74AUP1G125GW-TP#C49230941TECH PUBLIC · SOT353 | TECH PUBLIC | SOT353 | 2,160 | ₹9.80 · 2,160 in stock | View |
