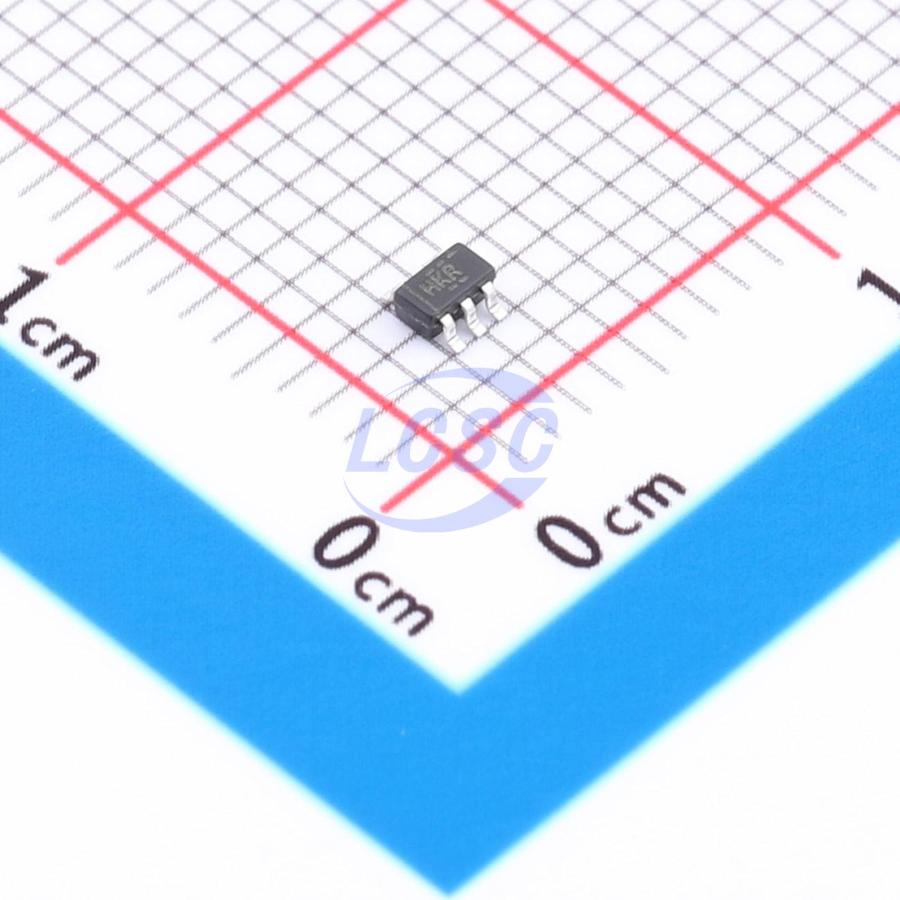

74AUP1G240GW-TP
Schmitt trigger 0.8V~3.6V 1 1 2.3ns@3.3V,5pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP1G240GW-TP
- Store part #
- C51939524
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C51939524
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.21 | ₹72.10 |
| 100+ | ₹5.65 | ₹565.00 |
| 300+ | ₹4.87 | ₹1,461.00 |
| 3,000+ | ₹4.29 | ₹12,870.00 |
| 6,000+ | ₹3.81 | ₹22,860.00 |
| 9,000+ | ₹3.59 | ₹32,310.00 |
10 × ₹7.21
₹72.10
excl. GST
₹85.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP1G240GW-TP
₹72.10 for 10 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 0.8V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 500nA
- Function
- Power-off isolation;Output enable
- Series
- 74AUP
- Current - Output Low(IOL)
- 4mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.3ns@3.3V,5pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 1 g
Overview
This device is a 1-bit inverting buffer/line driver with 3-state outputs. It features an output enable (OE) function. When OE is HIGH, the outputs are placed in a high-impedance off-state. All inputs are equipped with Schmitt-trigger action, allowing the circuit to tolerate slow input rise and fall times.
Applications
- AV receivers
- Embedded PCs
- Personal digital assistants
- Telecom/server AC/DC power supplies: single controller: analog and digital
- Solid-state drives: client and enterprise
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs accept voltages up to 3.6V
- IOFF supports partial power-down mode
- Low quiescent current; ICC = 0.5μA (maximum)
- ESD protection exceeds JESD 22: 2000-V HBM (A114-A), 200-V MM (A115-A), 1000-V CDM (C101)
