TECH PUBLICDatasheet (PDF)

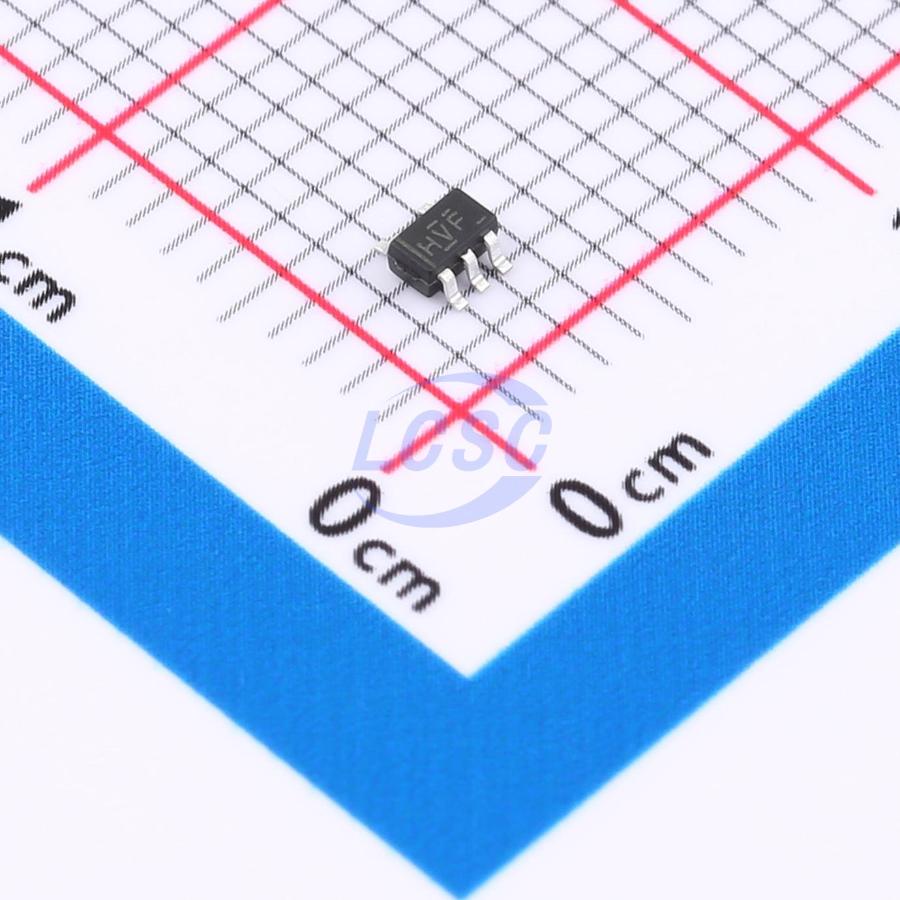

TP74AUP1G07C5
0.8V~3.6V 1 1 2.2ns@3.3V,5pF SOT353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT353ROHS CompliantActive
Low-power open-drain output buffer
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TP74AUP1G07C5
- Store part #
- C49231004
- Package / case
- SOT353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C49231004
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.58 | ₹57.90 |
| 50+ | ₹9.16 | ₹458.00 |
| 150+ | ₹7.95 | ₹1,192.50 |
| 500+ | ₹7.04 | ₹3,520.00 |
| 3,000+ | ₹6.31 | ₹18,930.00 |
| 6,000+ | ₹5.94 | ₹35,640.00 |
5 × ₹11.58
₹57.90
excl. GST
₹68.32 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TP74AUP1G07C5
₹57.90 for 5 + GST
Specifications
- Series
- 74AUP
- Voltage - Supply
- 0.8V~3.6V
- Current - Output Low(IOL)
- 4mA
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 500nA
- Propagation Delay
- 2.2ns@3.3V,5pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The TP74AUP1G07 provides a single non-inverting buffer with open-drain output. The open-drain output can be connected with other open-drain outputs to implement active-low wired-OR and active-high wired-AND functions.
Applications
- AV receivers
- Audio docks: portable
- Blu-ray players and home theaters
- Embedded PCs
- Personal digital assistants (PDAs)
- Power supplies: telecom/server AC/DC power supplies: single controller: analog and digital
- Solid-state drives (SSDs): client and enterprise
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V ~ 3.6V
- Inputs tolerant up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current; I<sub>CC</sub> = 0.5μA (max)
- ESD protection exceeds JESD 22:
- 2000V Human Body Model (A114-A)
- 200V Machine Model (A115-A)
- 1000V Charged Device Model (C101)
