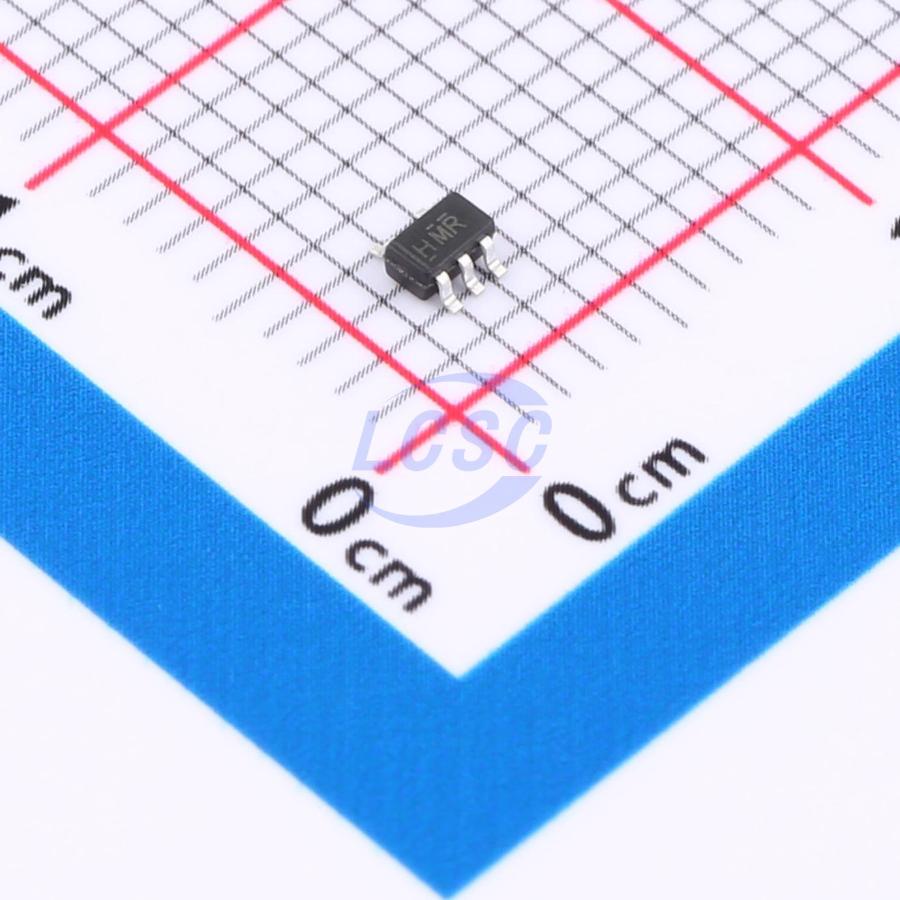

74AUP1G125GW-TP
0.8V~3.6V 1 1 2.4ns@3.3V,5pF SOT353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT353ROHS CompliantActive
BUS BUFFER/LINE DRIVER 3-STATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP1G125GW-TP
- Store part #
- C49230941
- Package / case
- SOT353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,160 in stock
#C49230941
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.80 | ₹98.00 |
| 100+ | ₹7.75 | ₹775.00 |
| 300+ | ₹6.72 | ₹2,016.00 |
| 3,000+ | ₹5.95 | ₹17,850.00 |
| 6,000+ | ₹5.34 | ₹32,040.00 |
| 9,000+ | ₹5.03 | ₹45,270.00 |
10 × ₹9.80
₹98.00
excl. GST
₹115.64 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP1G125GW-TP
₹98.00 for 10 + GST
Specifications
- Voltage - Supply
- 0.8V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 500nA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 4mA
- Series
- 74AUP
- Current - Output Low(IOL)
- 4mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.4ns@3.3V,5pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The 74AUP1G125 is a single bus buffer/line driver with 3-state output. When the output enable (OE) is HIGH, the output is disabled. Conversely, when OE is LOW, true data is propagated from input A to output Y.
Applications
- AV receivers
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- Wireless peripherals
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Inputs tolerant up to 3.6V
- I<sub>OFF</sub> supports partial power-down mode
- Low quiescent current: I<sub>CC</sub> = 0.5μA (maximum)
- ESD protection exceeds JESD 22: HBM 2000V (A114-A), MM 200V (A115-A), CDM 1000V (C101)
