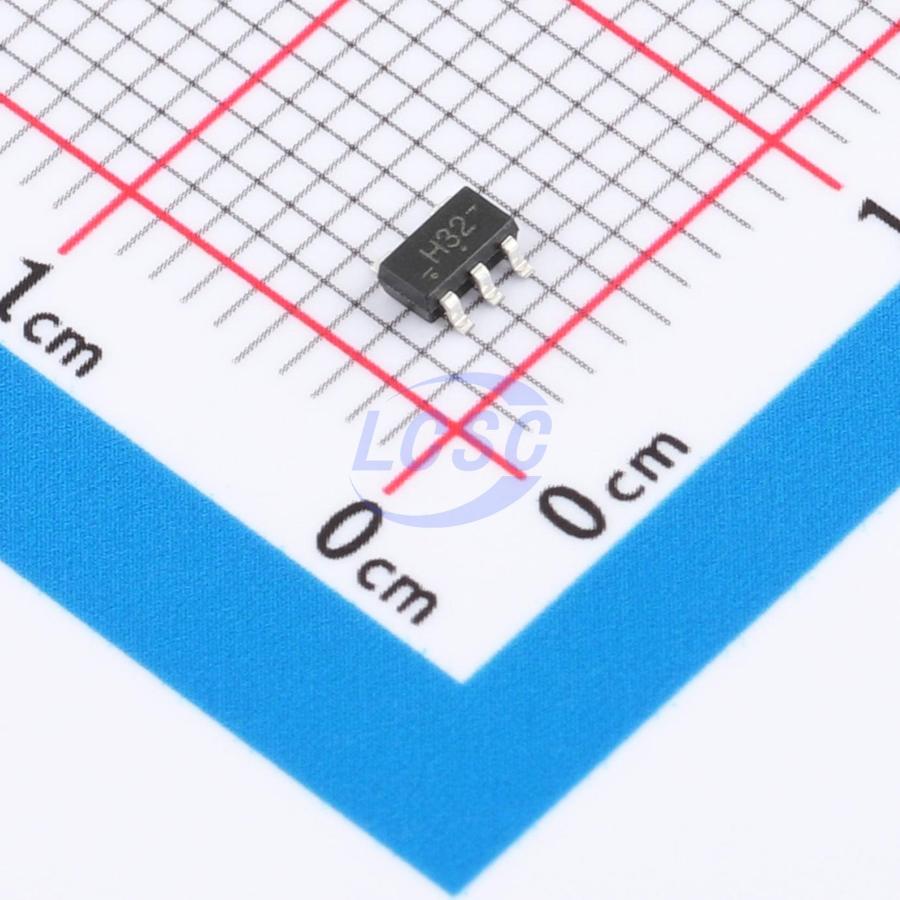

74HC1G32GV
10uA 2V~6V 21ns@6V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC1G32GV
- Store part #
- C52205104
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,730 in stock
#C52205104
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.97 | ₹59.70 |
| 100+ | ₹4.70 | ₹470.00 |
| 300+ | ₹4.07 | ₹1,221.00 |
| 3,000+ | ₹3.60 | ₹10,800.00 |
| 6,000+ | ₹3.21 | ₹19,260.00 |
| 9,000+ | ₹3.03 | ₹27,270.00 |
10 × ₹5.97
₹59.70
excl. GST
₹70.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G32GV
₹59.70 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Logic Family
- 74HC
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;260mV;330mV
- Propagation Delay
- 21ns@6V,50pF
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.046 g
Overview
74HC1G32 is a high-speed CMOS 2-input OR gate fabricated using silicon gate CMOS technology. Combining the low power consumption of CMOS with high-speed performance comparable to the LS-TTL family, it features an internal buffered three-stage circuit architecture that provides wide noise margins and stable output.
Key features
- Basic gate functions aligned with Renesas uni logic series.
- Embossed carrier tape packaging for high-speed automated placement.
- Supply voltage range: 2 to 6V
- Operating temperature range: -40 to +85°C
- |I_OH| = I_OL = 2 mA (min)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC1G32DTT1G-TP#C52205176TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,380 | ₹5.73 · 2,380 in stock | View |
 | NC7S32M5X#C19829497TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,630 | ₹7.20 · 1,630 in stock | View |
 | TC7S32F#C19829493TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,480 | ₹7.46 · 5,480 in stock | View |
 | 74AHC1G32GV#C19829587TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,910 | ₹7.46 · 5,910 in stock | View |
 | TP74AHC1G32S5#C52205198TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,990 | ₹6.77 · 2,990 in stock | View |
