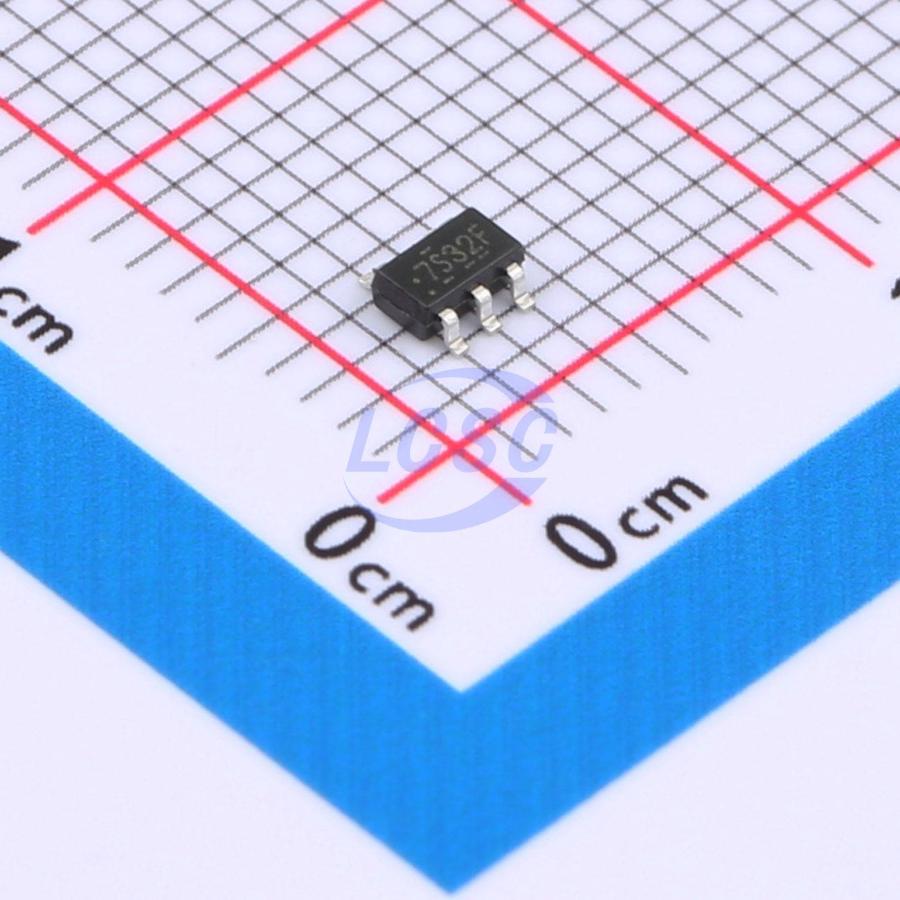

NC7S32M5X
10uA 2V~6V 15ns@5V,15pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
2-input OR Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- NC7S32M5X
- Store part #
- C19829497
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,630 in stock
#C19829497
Stock & price checked 16 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.20 | ₹72.00 |
| 100+ | ₹5.68 | ₹568.00 |
| 300+ | ₹4.92 | ₹1,476.00 |
| 3,000+ | ₹4.35 | ₹13,050.00 |
| 6,000+ | ₹3.89 | ₹23,340.00 |
| 9,000+ | ₹3.66 | ₹32,940.00 |
10 × ₹7.20
₹72.00
excl. GST
₹84.96 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
NC7S32M5X
₹72.00 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~6V
- Number of Channels
- 2;1
- Current - Output High(IOH)
- 2mA
- Propagation Delay
- 15ns@5V,15pF
- Output Logic Level - Low
- 100mV;260mV;330mV
- Current - Output Low(IOL)
- 2mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
TC7S32F are CMOS 2-input OR gate ICs. They realize a high speed operation similar to LS-TTL with a lower power consumption by CMOS features. An inner circuit structure of 3-stages logic gates obtains wider noise immunity and constant output.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- Wide array of products such as: PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Power voltage range: 2.0 ~ 6.0V
- Operation temp. range: -40 ~ +85°C
- |IOH| = IOL = 2mA (min)
- ESD Protection Exceeds ESD 22 - 2000-V Human-Body Model (A114 - A) - 1000-V Charged-Device Model (C101)
- SOT23 - 5 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC1G32DTT1G-TP#C52205176TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,380 | ₹5.73 · 2,380 in stock | View |
 | 74HC1G32GV#C52205104TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,730 | ₹5.97 · 3,730 in stock | View |
 | TC7S32F#C19829493TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,970 | ₹7.46 · 4,970 in stock | View |
 | 74AHC1G32GV#C19829587TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,890 | ₹7.46 · 5,890 in stock | View |
 | TP74AHC1G32S5#C52205198TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,990 | ₹6.77 · 2,990 in stock | View |
