TECH PUBLICDatasheet (PDF)

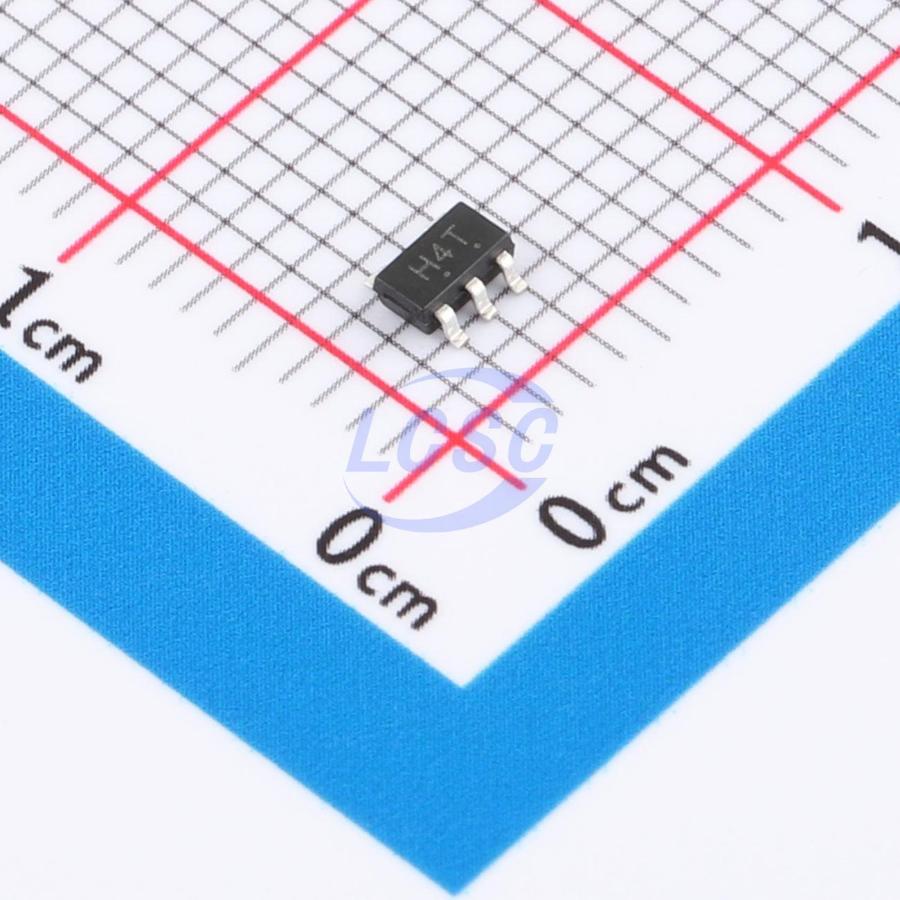

MC74HC1G32DTT1G-TP
10uA 2V~6V 15ns@5V,15pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- MC74HC1G32DTT1G-TP
- Store part #
- C52205176
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,380 in stock
#C52205176
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.73 | ₹57.30 |
| 100+ | ₹4.52 | ₹452.00 |
| 300+ | ₹3.92 | ₹1,176.00 |
| 3,000+ | ₹3.45 | ₹10,350.00 |
| 6,000+ | ₹3.10 | ₹18,600.00 |
| 9,000+ | ₹2.91 | ₹26,190.00 |
10 × ₹5.73
₹57.30
excl. GST
₹67.61 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
MC74HC1G32DTT1G-TP
₹57.30 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Logic Family
- 74HC
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Propagation Delay
- 15ns@5V,15pF
- Output Logic Level - Low
- 100mV;260mV;330mV
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
MC74HC1G32 is a high-speed CMOS 2-input OR gate fabricated using silicon gate CMOS technology. Combining the low-power characteristics of CMOS with high-speed performance comparable to the LS-TTL series, it features an internal three-stage buffered structure that provides wide noise margins and stable output.
Key features
- Basic gate function aligned with Renesas uni logic series.
- Bump tape carrier package for high-speed automated placement.
- Electrical characteristics equivalent to MC74HC1G32.
- Supply voltage range: 2 to 6V.
- Operating temperature range: -40 to +85°C.
- |IOH| = IOL = 2mA(min).
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC1G32GV#C52205104TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,730 | ₹5.97 · 3,730 in stock | View |
 | NC7S32M5X#C19829497TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,630 | ₹7.20 · 1,630 in stock | View |
 | TC7S32F#C19829493TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,970 | ₹7.46 · 4,970 in stock | View |
 | 74AHC1G32GV#C19829587TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,890 | ₹7.46 · 5,890 in stock | View |
 | TP74AHC1G32S5#C52205198TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,990 | ₹6.77 · 2,990 in stock | View |
