TECH PUBLICDatasheet (PDF)

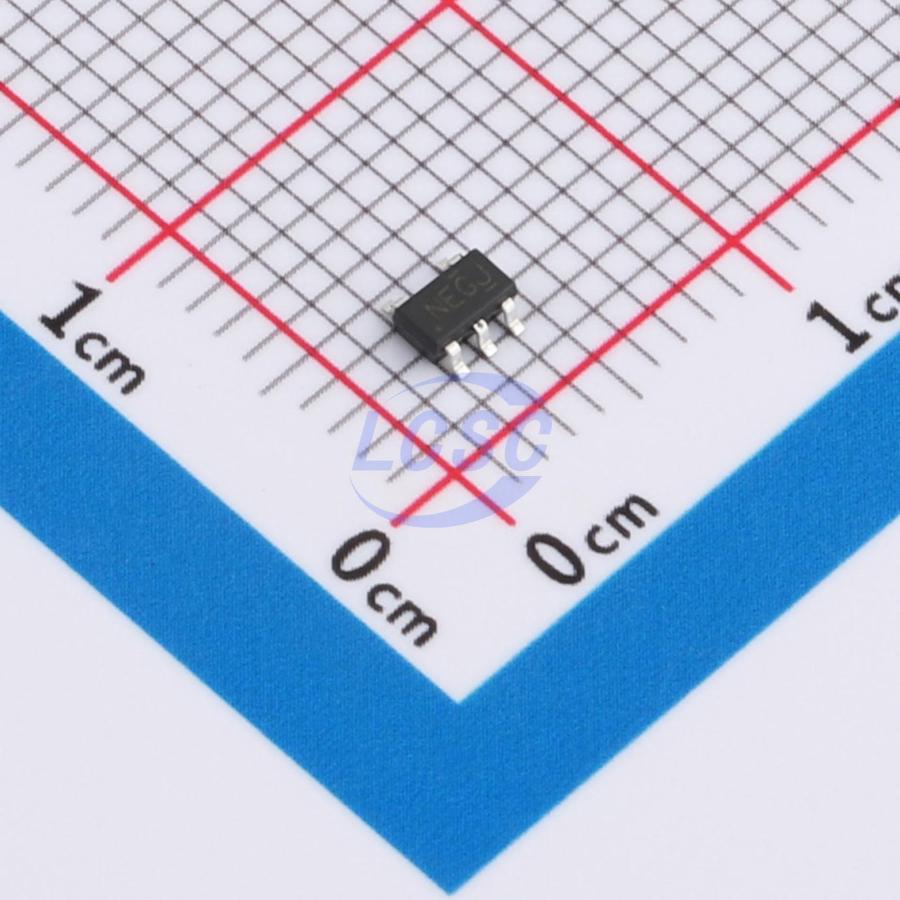

74LV1T32GV-TP
1.6V~5.5V 6ns@5V,15pF 1uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LV1T32GV-TP
- Store part #
- C52098010
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,900 in stock
#C52098010
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹10.62 | ₹53.10 |
| 50+ | ₹8.35 | ₹417.50 |
| 150+ | ₹7.22 | ₹1,083.00 |
| 500+ | ₹6.36 | ₹3,180.00 |
| 3,000+ | ₹5.69 | ₹17,070.00 |
| 6,000+ | ₹5.34 | ₹32,040.00 |
5 × ₹10.62
₹53.10
excl. GST
₹62.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LV1T32GV-TP
₹53.10 for 5 + GST
Specifications
- Logic Family
- 74LV
- Voltage - Supply
- 1.6V~5.5V
- Propagation Delay
- 6ns@5V,15pF
- Output Logic Level - Low
- 300mV
- Input Logic Level - High
- 940mV;990mV;1.135V;1.21V;1.35V;1.47V;2.02V;2.1V
- Input Logic Level - Low
- 580mV;750mV;800mV
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.6V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.037 g
Overview
This device is a low-voltage CMOS gate logic device that operates over a wide voltage range, suitable for industrial, portable, communications, and automotive applications. Output levels are referenced to the supply voltage, supporting 1.8V, 2.5V, 3.3V, and 5V CMOS levels.
Applications
- AV receivers
- Audio docking stations
- Blu-ray players and home theaters
- Embedded PCs
- Personal digital assistants
- Power supplies
- Solid-state drives
- Wireless headsets, keyboards, and mice
Key features
- Operating voltage range: 1.6V to 5.5V
- Low quiescent current: Icc = 10μA (max)
- Output drive capability: ±8mA (at VCC = 5.0V)
- Power-off protection
- ESD protection exceeding JESD 22: HBM 2000V (A114-A), MM 200V (A115-A), CDM 1000V (C101)
