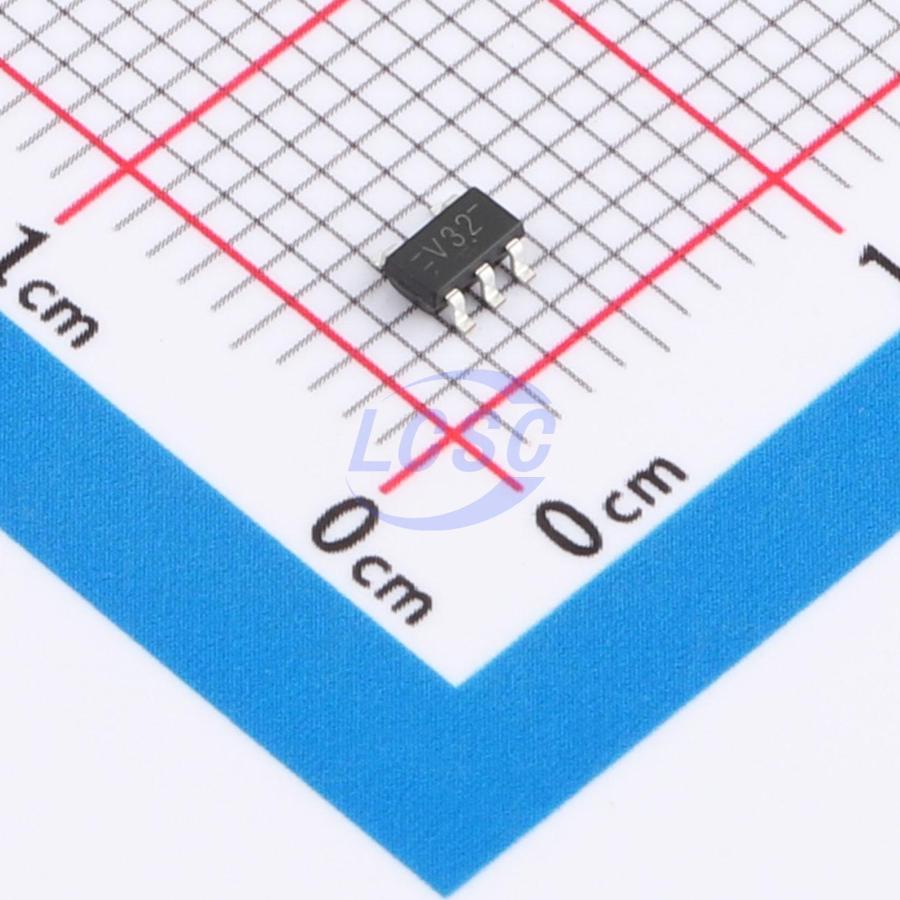

74LVC1G32W5-TP
10uA 1.6V~5.5V 5.5ns@3.3V,15pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G32W5-TP
- Store part #
- C52098144
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,740 in stock
#C52098144
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G32W5-TP
₹58.50 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.6V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Propagation Delay
- 5.5ns@3.3V,15pF
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.038 g
Overview
This device is a single 2-input OR gate that implements the function Y = A + B in positive logic circuits. The device incorporates a built-in power-off protection circuit to prevent damage when the power supply is turned off.
Key features
- Operating voltage range: 1.6V ~ 5.5V
- Low quiescent current: I_CC = 10μA (maximum)
- Output drive capability: ±24mA (VCC=3.0V)
- Power-off protection
- ESD protection exceeds JESD 22 standard
- Human Body Model (A114-A): 2000V
- Charged Device Model (C101): 1000V
- Available in SOT23-5 package
- Available in SOT353 package
