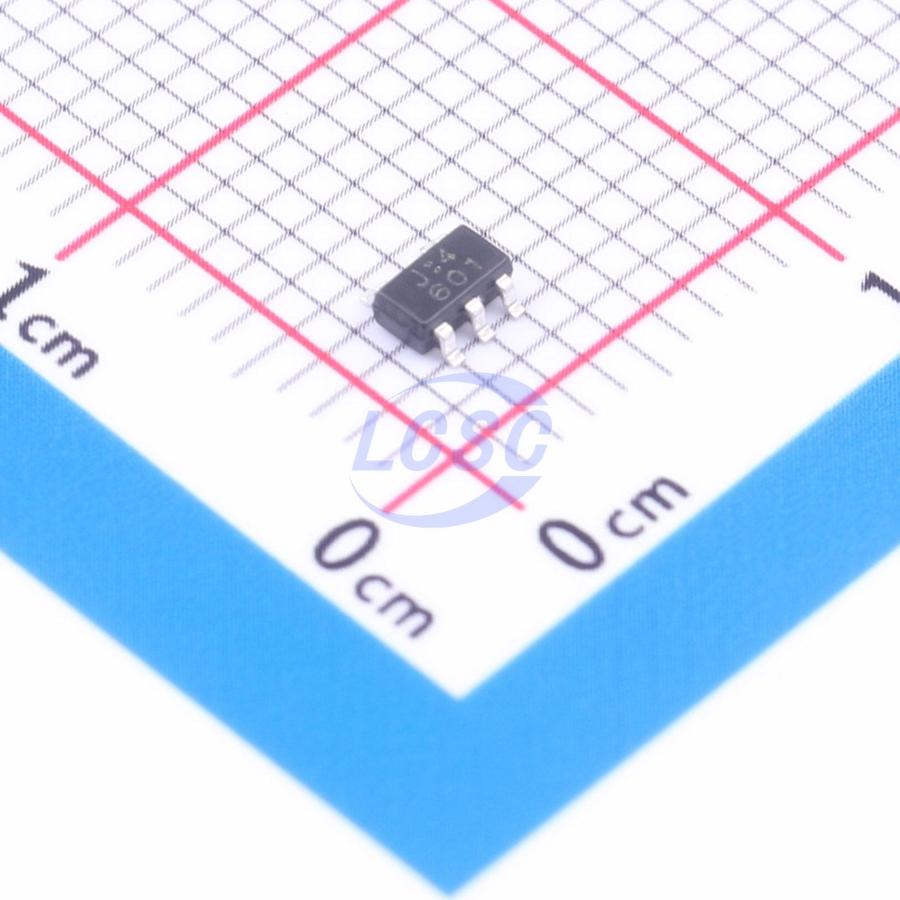

TC7SZ32F-TP

10uA 1.65V~5.5V 3.4ns@5V,15pF SOT-23-5 Gates and Inverters

SOT-23-5RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: TC7SZ32F-TP
Store part #: C54195045
Package / case: SOT-23-5
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,900 in stock

#C54195045

Stock & price checked 21 h ago

Quantity	Unit price	Pack price
10+	₹5.81	₹58.10
100+	₹4.58	₹458.00
300+	₹3.97	₹1,191.00
3,000+	₹3.51	₹10,530.00
6,000+	₹3.14	₹18,840.00
9,000+	₹2.95	₹26,550.00

Quantity (min 10, multiples of 10)

10 × ₹5.81

₹58.10

excl. GST

₹68.56 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

TC7SZ32F-TP

₹58.10 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.2V;1.9V;2.4V;2.3V;3.8V
Quiescent Current(Iq): 10uA
Voltage - Supply: 1.65V~5.5V
Number of Channels: 1;2
Current - Output High(IOH): 32mA
Output Logic Level - Low: 450mV;400mV;500mV;650mV
Propagation Delay: 3.4ns@5V,15pF
Current - Output Low(IOL): 32mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

TC7SZ32 is a single 2-input OR gate. The device is designed for operation at Vcc from 1.65 V to 5.5 V and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. TC7SZ32 performs the Boolean function Y = A + B or Ȳ = Ā · B̄ in positive logic. This CMOS device maintains low quiescent power consumption over a wide Vcc operating range while providing high output drive capability. TC7SZ32 is available in SOT23-5 and SOT353 packages.

Applications

Active Noise Cancellation (ANC)
Blood Pressure Monitor
Embedded PC
SSD: Client and Enterprise
TV: LCD/Digital and HDTV
Tablet: Enterprise
Video Analytics: Server
Wireless Headset, Keyboard and Mouse
Power Supply: Telecom/Server AC/DC Controller

Key features

Wide supply voltage range: 1.65 V to 5.5 V
Maximum propagation delay TpD of 3.6 ns at Vcc = 3.3 V
Low power consumption, maximum quiescent current Icc of 10 μA
Output drive current of ±24 mA at Vcc = 3.3 V
Latch-up performance exceeds 100 mA per JESD 78 Class II
ESD protection exceeds JESD 22
HBM ESD immunity: 2000 V (A114-A)
CDM ESD immunity: 1000 V (C101)
Operating temperature range: -40°C to 125°C
Available packages: SOT23-5 and SOT353
