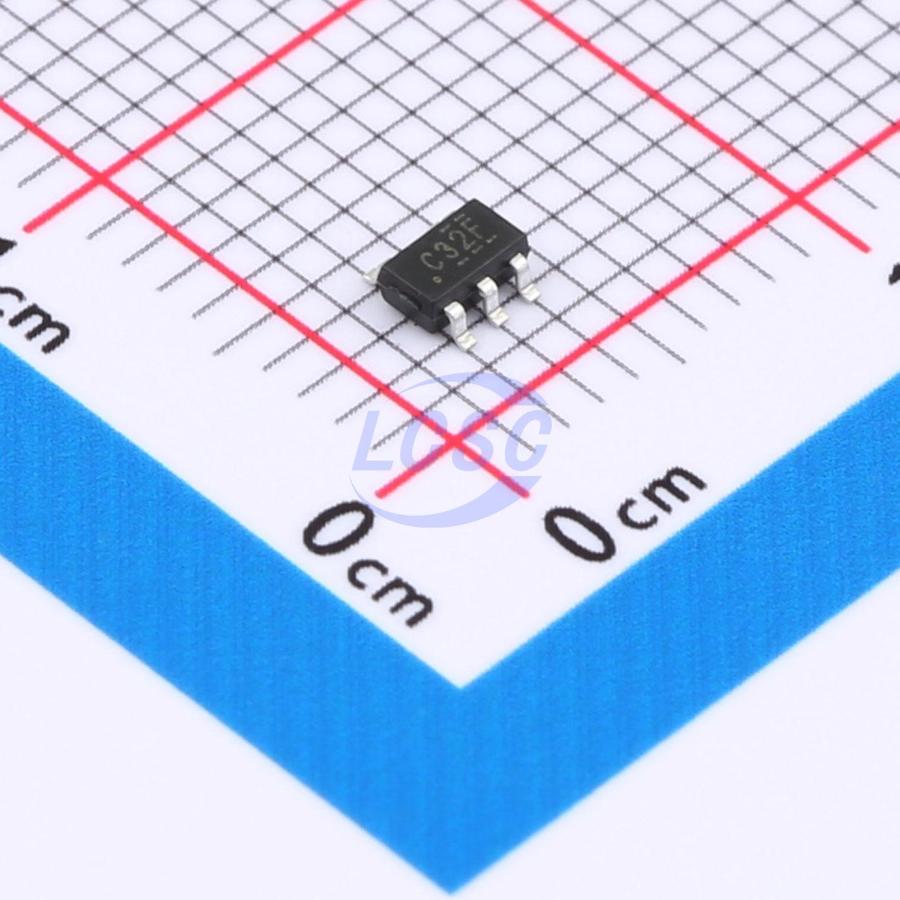

SN74LVC1G32DBVR
10uA 1.6V~5.5V 8ns@3.3V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE 2-INPUT POSITIVE-OR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74LVC1G32DBVR
- Store part #
- C19829663
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,930 in stock
#C19829663
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.68 | ₹66.80 |
| 100+ | ₹5.32 | ₹532.00 |
| 300+ | ₹4.64 | ₹1,392.00 |
| 3,000+ | ₹4.13 | ₹12,390.00 |
| 6,000+ | ₹3.73 | ₹22,380.00 |
| 9,000+ | ₹3.52 | ₹31,680.00 |
10 × ₹6.68
₹66.80
excl. GST
₹78.82 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74LVC1G32DBVR
₹66.80 for 10 + GST
Specifications
- Features
- Local shutdown mode
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Logic Family
- 74LVC
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 1.2V;1.9V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 1.6V~5.5V
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Propagation Delay
- 8ns@3.3V,50pF
- Output Logic Level - Low
- 450mV;300mV;400mV;550mV
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The SN74LVC1G32 is a single 2-input OR gate which provides the Function Y = A + B in positive logic circuit. This device has power-down protective circuit to prevent the device from destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs
- Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 1.6V ~ 5.5V
- Low power current: lCC = 10μA(Max)
- ±24mA output drive (VCC = 3.0V)
- Power down protection
- SOT23-5 Package Available
- SOT353 Package Available
- SOT553 Package Available
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74LVC1G32GV#C19829594TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 5,010 | ₹7.09 · 5,010 in stock | View |
 | 74LVC1G32W5-TP#C52098144TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,740 | ₹5.85 · 2,740 in stock | View |
 | TP74LVC1G32S5#C42460139TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,510 | ₹7.55 · 2,510 in stock | View |
 | NC7SZ32M5X#C19829502TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 820 | ₹7.04 · 820 in stock | View |
 | TC7SZ32F-TP#C54195045TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,900 | ₹5.81 · 2,900 in stock | View |
