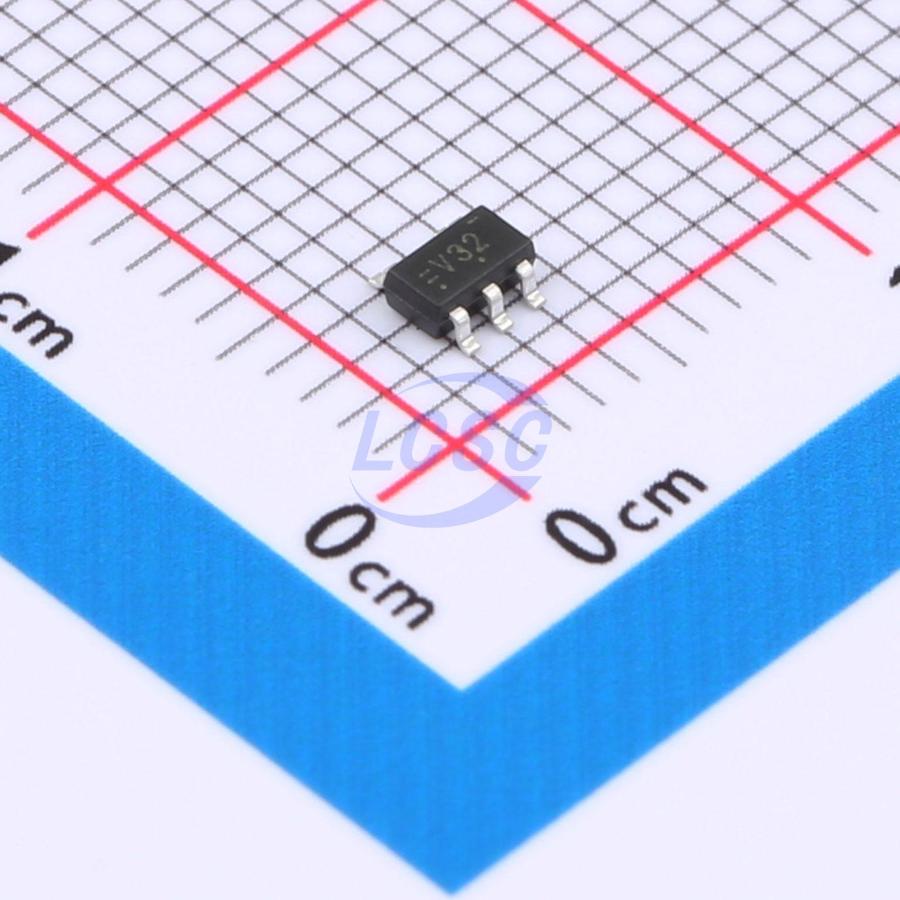

74LVC1G32GV
1.65V~5.5V 8ns@5V,50pF 10uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
SINGLE 2-INPUT POSITIVE-OR GATE
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74LVC1G32GV
- Store part #
- C19829594
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,010 in stock
#C19829594
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.09 | ₹70.90 |
| 100+ | ₹5.53 | ₹553.00 |
| 300+ | ₹4.75 | ₹1,425.00 |
| 3,000+ | ₹4.15 | ₹12,450.00 |
| 6,000+ | ₹3.69 | ₹22,140.00 |
| 9,000+ | ₹3.45 | ₹31,050.00 |
10 × ₹7.09
₹70.90
excl. GST
₹83.66 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G32GV
₹70.90 for 10 + GST
Specifications
- Logic Family
- 74LVC
- Voltage - Supply
- 1.65V~5.5V
- Propagation Delay
- 8ns@5V,50pF
- Output Logic Level - Low
- 100mV;450mV;300mV;400mV;550mV
- Input Logic Level - Low
- 700mV;800mV
- Input Logic Level - High
- 1.7V;2V
- Features
- Local shutdown mode
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.2V;1.9V;2.4V;2.3V;3.8V
- Quiescent Current(Iq)
- 10uA
- Current - Output High(IOH)
- 24mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 24mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The 74LVC1G32 is a single 2-input OR gate which provides the Function Y = A + B in positive logic circuit. This device has power-down protective circuit to prevent the device from destruction when it is powered down.
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs, Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation/GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 1.6V ~ 5.5V
- Low power current: ICC = 10μA(Max)
- ±24mA output drive (VCC = 3.0V)
- Power down protection
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
