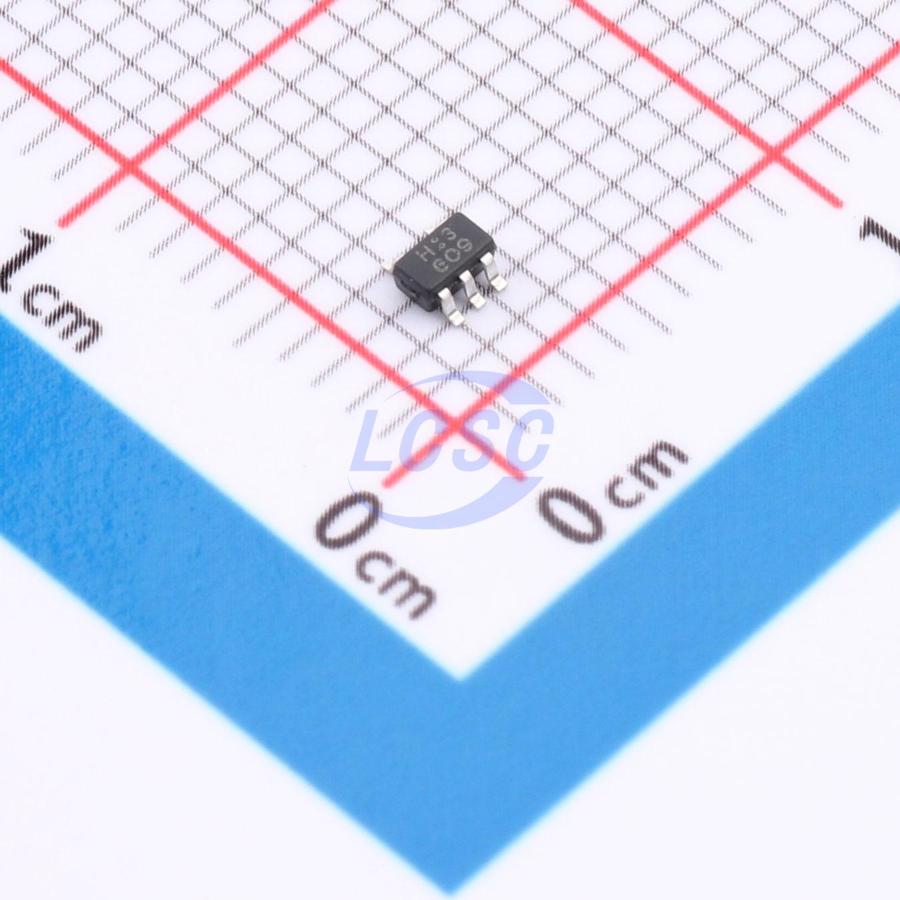

TC7SH02FU-TP
10uA 2V~5.5V 7.2ns@2V,15pF SOT353 Gates and Inverters
SOT353RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TC7SH02FU-TP
- Store part #
- C54195008
- Package / case
- SOT353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C54195008
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹6.34 | ₹63.40 |
| 100+ | ₹5.00 | ₹500.00 |
| 300+ | ₹4.33 | ₹1,299.00 |
| 3,000+ | ₹3.82 | ₹11,460.00 |
| 6,000+ | ₹3.43 | ₹20,580.00 |
| 9,000+ | ₹3.23 | ₹29,070.00 |
10 × ₹6.34
₹63.40
excl. GST
₹74.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TC7SH02FU-TP
₹63.40 for 10 + GST
Specifications
- Input Logic Level - Low
- 700mV;800mV
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.7V;2V
- Output Logic Level - High
- 1.2V;1.9V;2.3V;2.4V;3.8V
- Quiescent Current(Iq)
- 10uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 1;2
- Current - Output High(IOH)
- 32mA
- Propagation Delay
- 7.2ns@2V,15pF
- Output Logic Level - Low
- 300mV;400mV;450mV;550mV
- Current - Output Low(IOL)
- 32mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.03 g
Overview
TC7SH02 is a single 2-input NOR gate. The device is designed for operation with Vcc from 2 V to 5.5 V and can be driven by 3.3 V or 5 V devices. This feature allows these devices to be used as translators in mixed 3.3 V and 5 V environments. The TC7SH02 performs the Boolean function Y = (A + B)‾ (i.e., Y = Ā · B̄) in positive logic. This CMOS device maintains low quiescent power consumption over a wide Vcc operating range while providing high output drive capability. The TC7SH02 is offered in SOT23-5 and SOT353 packages.
Key features
- Wide supply voltage range: 2 V to 5.5 V
- Maximum propagation delay Tpp of 3.6 ns at Vcc = 3.3 V
- Low power consumption, maximum Icc of 10 μA
- Output drive current ±24 mA at Vcc = 3.3 V
- Latch-up performance exceeds 100 mA per JESD 78 Class I
- ESD protection exceeds JESD 22
- HBM ESD protection 2000 V (A114-A)
- CDM ESD protection 1000 V (C101)
- Operating temperature range: -40°C to 125°C
- Available in SOT23-5 and SOT353 packages
