MDD(Microdiode Semiconductor)Datasheet (PDF)

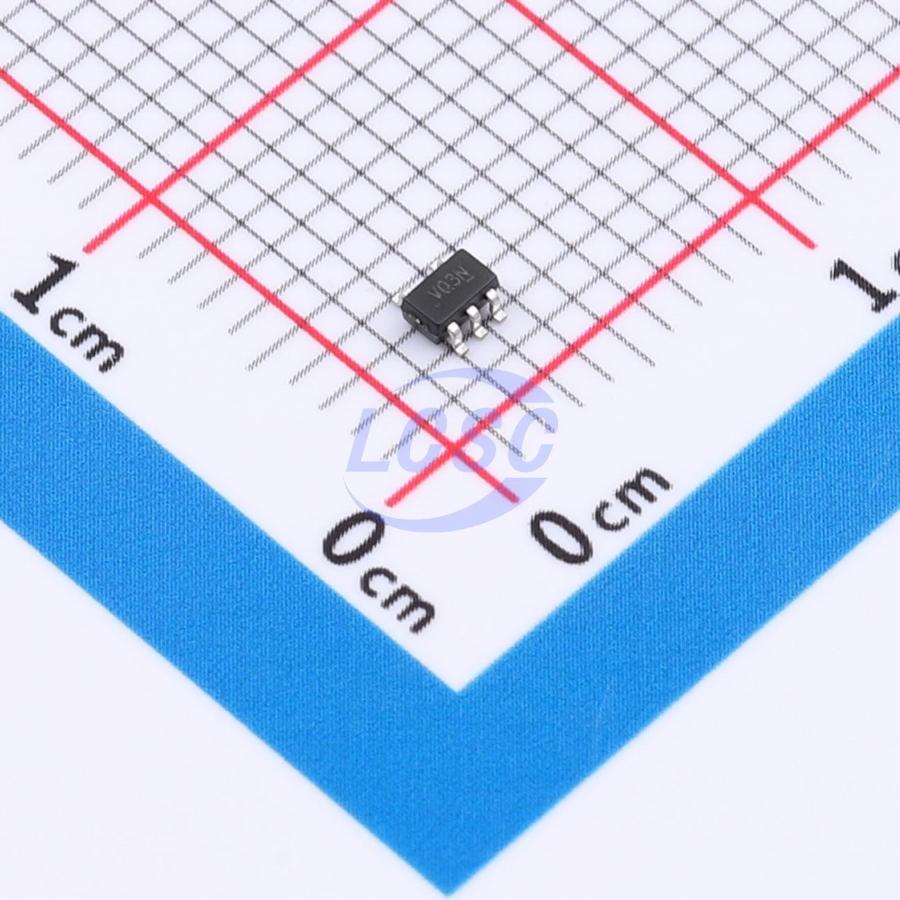

74LVC1G126GW
Schmitt trigger 1.65V~5.5V 1 1 3.6ns@3.3V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers
SOT-353RoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74LVC1G126GW
- Store part #
- C52140429
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,934 in stock
#C52140429
Stock & price checked 29 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹9.01 | ₹9.01 |
| 10+ | ₹7.90 | ₹79.00 |
| 30+ | ₹7.33 | ₹219.90 |
| 100+ | ₹6.92 | ₹692.00 |
| 500+ | ₹6.59 | ₹3,295.00 |
| 1,000+ | ₹6.42 | ₹6,420.00 |
1 × ₹9.01
₹9.01
excl. GST
₹10.63 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74LVC1G126GW
₹9.01 for 1 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 4uA
- Function
- Level shifting;Power-off isolation;Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74LVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Propagation Delay
- 3.6ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 1 g
Overview
The 74LVC1G126 is a single buffer/line driver with three-state output. Its inputs can be driven by 3.3V or 5V devices, making it suitable as a level translator in mixed 3.3V/5V environments. Schmitt-trigger action on all inputs provides tolerance to slower input rise and fall times. The device fully supports partial power-down applications using the IOFF circuit. The IOFF circuit disables the output, preventing potentially destructive backflow current when the device is powered down.
Key features
- Wide supply voltage range: 1.65V ~ 5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- CMOS low power consumption
- IOFF circuit supports partial power-down mode operation
- ±24 mA output drive capability (VCC = 3.0V)
- Latch-up performance exceeds 100 mA
- Direct TTL-level interface compatible
- Compliant with JEDEC standards: JESD8-7 (1.65V to 1.95V), JESD8-5 (2.3V to 2.7V), JESD8C (2.7V to 3.6V), JESD36 (4.5V to 5.5V)
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3B exceeds 8000V; MM JESD22-A115C Class C exceeds 550V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
