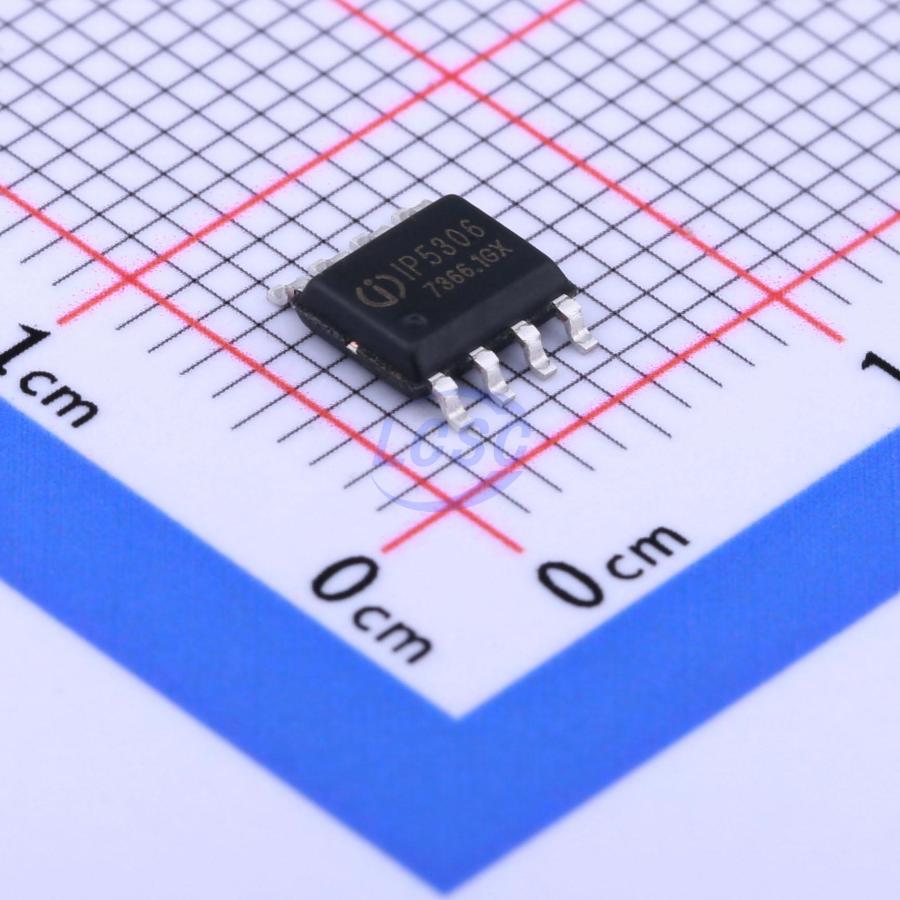

IP5306-I2C
Battery Charging IC Lithium Battery ESOP-8
Highly integrated mobile power supply SOC with 2.1A charging and 2.4A discharging
- Manufacturer
- INJOINIC
- Manufacturer part #
- IP5306-I2C
- Store part #
- C488349
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,590 in stock
#C488349
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹46.28 | ₹231.40 |
| 50+ | ₹37.06 | ₹1,853.00 |
| 150+ | ₹33.10 | ₹4,965.00 |
| 500+ | ₹28.17 | ₹14,085.00 |
| 2,500+ | ₹23.27 | ₹58,175.00 |
| 4,000+ | ₹21.95 | ₹87,800.00 |
5 × ₹46.28
₹231.40
excl. GST
₹273.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
IP5306-I2C
₹231.40 for 5 + GST
Specifications
- Operating Temperature
- 0℃~+70℃
- Interface
- I2C
- Quiescent Current
- 100uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.75V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Over-discharge protection;Overcurrent Protection;Short-Circuit Protection;Overvoltage protection
- The Chip Type
- Charging IC
- Charge Current - Max
- 2.1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.13 g
Overview
IP5306 is a highly integrated multi-function power management SOC combining a boost converter, lithium battery charge management, and battery level indication, providing a complete power solution for power banks. The high integration and rich feature set of the IP5306 require minimal external components in application, effectively reducing the overall solution size and lowering BOM cost. The IP5306 requires only a single inductor to implement both buck and boost functions, and supports low-cost inductors and capacitors. The IP5306 synchronous boost system delivers a maximum output current of 2.4A with conversion efficiency up to 92%. Under no-load conditions, it automatically enters sleep mode, reducing quiescent current to 100uA. The IP5306 adopts switched charging technology, providing a maximum charging current of 2.1A with charging efficiency up to 91%. Built-in IC temperature and input voltage monitoring intelligently regulate the charging current. The IP5306 supports 1, 2, 3, and 4 LED battery level display. The IP5306 is available in an eSOP8L package.
Applications
- Power banks / portable chargers
- Mobile phones, tablets, and other portable devices
Key features
- 2.4A synchronous boost conversion, 2.1A synchronous switch charging
- Boost efficiency up to 92%
- Charging efficiency up to 91%
- Built-in power path management, supports simultaneous charging and discharging
- Adaptive charging current regulation, adaptive adapter support for 4.20/4.30/4.35/4.40V batteries
- Supports 4, 3, 2, 1 LED battery level display
- Power-on button
- Built-in flashlight driver
- Auto-detection of phone insertion and removal
- Smart load detection, automatic standby mode, standby power consumption less than 100μA
- Integrated power MOSFETs, single-inductor charge/discharge implementation
- Multiple protections, high reliability
- Output overcurrent, overvoltage, and short-circuit protection
- Input overvoltage, overcharge, over-discharge, and overcurrent discharge protection
- Full-system overtemperature protection
- ESD 4KV, transient withstand voltage 12V
- I2C interface for flexible, low-cost customizable solutions
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | IP5306-LC#C605440INJOINIC · ESOP-8 | INJOINIC | ESOP-8 | 905 | ₹41.38 · 905 in stock | View |
 | IP5306_4.35V#C384572INJOINIC · SOP-8-EP | INJOINIC | SOP-8-EP | 1,795 | ₹50.38 · 1,795 in stock | View |
 | IP2312U_VSET#C605432INJOINIC · SOP-8-EP | INJOINIC | SOP-8-EP | 16,140 | ₹43.05 · 16,140 in stock | View |
 | IP5407#C2890537INJOINIC · ESOP-8 | INJOINIC | ESOP-8 | 3,990 | ₹22.60 · 3,990 in stock | View |
 | IP2312-4V35#C605433INJOINIC · ESOP-8 | INJOINIC | ESOP-8 | 4,945 | ₹43.37 · 4,945 in stock | View |
