JSM4056

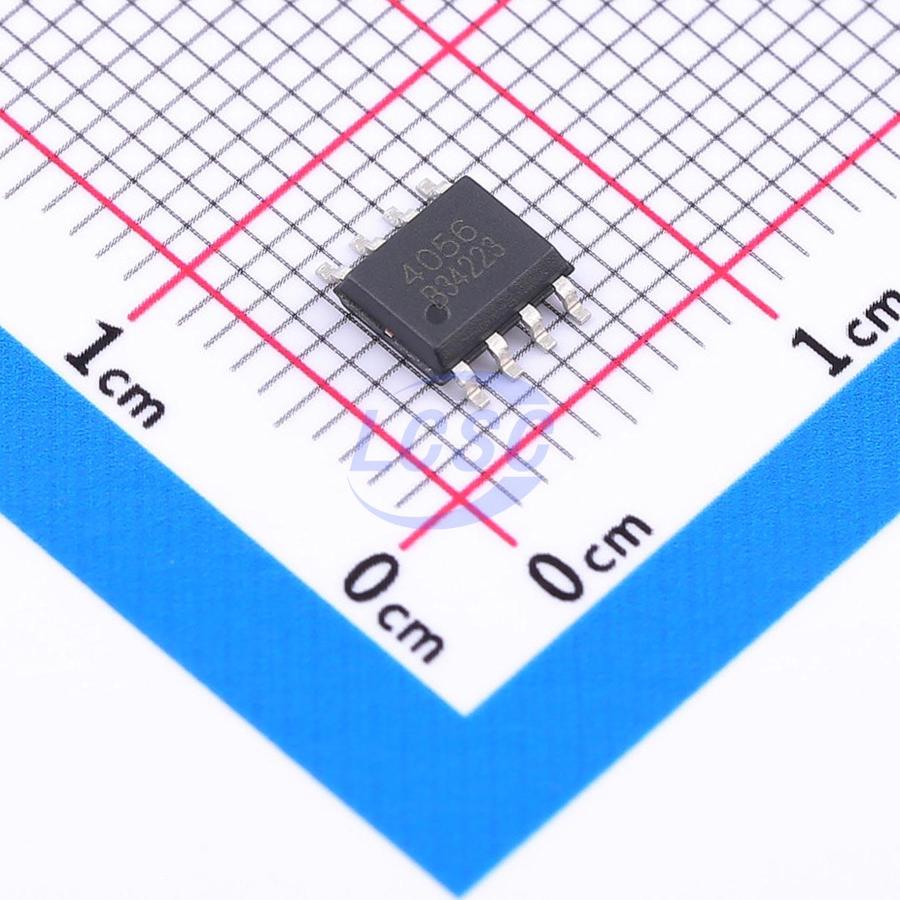

Battery Charging IC Lithium Battery ESOP-8
Single-cell lithium battery charger IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- JSM4056
- Store part #
- C2848864
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
11,970 in stock
#C2848864
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.99 | ₹79.90 |
| 100+ | ₹6.43 | ₹643.00 |
| 300+ | ₹5.65 | ₹1,695.00 |
| 1,000+ | ₹5.07 | ₹5,070.00 |
| 4,000+ | ₹4.59 | ₹18,360.00 |
| 8,000+ | ₹4.35 | ₹34,800.00 |
10 × ₹7.99
₹79.90
excl. GST
₹94.28 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
JSM4056
₹79.90 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4V~6.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.172 g
Overview
The JSM4056 is a single-cell lithium-ion battery constant-current/constant-voltage linear charger. Its simple external application circuit makes it ideal for portable device applications, compatible with both USB power and adapter power sources. An internal reverse-charge protection circuit eliminates the need for an external isolation diode. Thermal feedback automatically adjusts the charging current to limit the chip temperature during high-power operation or elevated ambient temperature conditions. The charge termination voltage is 4.2V, and the charging current can be set via an external resistor. When the charging current drops to 1/10 of the set value, the charging process terminates automatically. When the input voltage is removed, the device automatically enters a low-current standby state, with standby current reduced to 1uA.
Applications
- Charging dock
- Bluetooth headset
- Mobile phone
- Digital camera
- Portable devices
Key features
- Pre-charge voltage: 4.2V
- Battery reverse polarity protection
- Maximum charge current: 1000mA
- Ultra-low quiescent current of 1uA in battery-only mode
- No external MOSFET, sense resistor, or blocking diode required
- Intelligent thermal regulation for maximum charge rate optimization
- Intelligent recharge function
- C/10 charge termination
- 2.94V trickle charge threshold
- Package: ESOP8
