TP4056

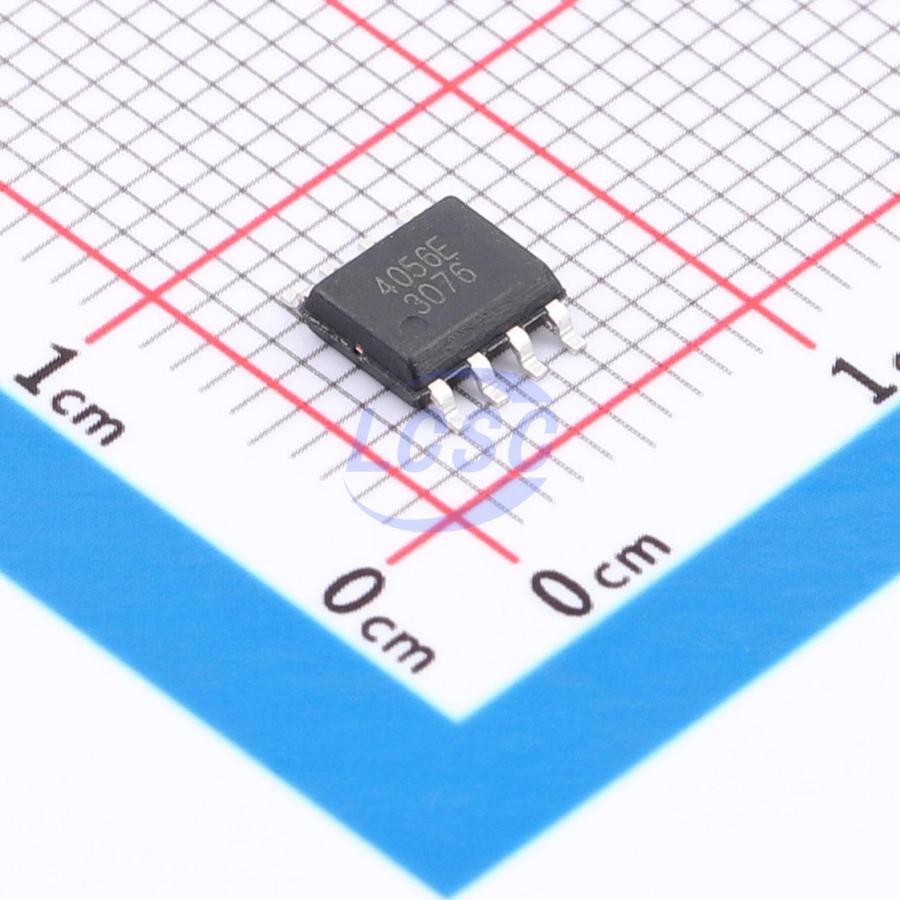

Linear Charging IC Lithium-ion/Polymer ESOP-8
Single-cell lithium battery charger IC
- Manufacturer
- JSMSEMI
- Manufacturer part #
- TP4056
- Store part #
- C22470410
- Package / case
- ESOP-8
- Category
- Battery Management
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
23,600 in stock
#C22470410
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.21 | ₹72.10 |
| 100+ | ₹5.65 | ₹565.00 |
| 300+ | ₹4.86 | ₹1,458.00 |
| 1,000+ | ₹4.27 | ₹4,270.00 |
| 4,000+ | ₹4.06 | ₹16,240.00 |
| 8,000+ | ₹3.82 | ₹30,560.00 |
10 × ₹7.21
₹72.10
excl. GST
₹85.08 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
TP4056
₹72.10 for 10 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Quiescent Current
- 1uA
- 0V Battery Charge
- Not supported
- Type of Battery
- Lithium Battery
- Operating Voltage
- 4.5V~5.5V
- Features
- Constant current charging;Constant voltage charging;Trickle charging;Automatic recharge;Charge termination;Programmable charging current;Soft-start;Under-voltage lockout
- The Chip Type
- Charging IC
- Charge Current - Max
- 1A
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.165 g
Overview
The TP4056 is a complete constant-current/constant-voltage linear charger for single-cell lithium-ion batteries. Its simple external application circuit makes it ideal for portable device applications, suitable for both USB power supply and adapter power operation. An internal reverse-charge protection circuit eliminates the need for an external blocking diode. Thermal feedback automatically adjusts the charge current to limit the die temperature during high-power operation or high ambient temperature conditions. The TP4056 has a charge termination voltage of 4.2V, and the charge current can be set via an external resistor. When the charge current drops to 1/10 of the programmed value, the TP4056 automatically terminates the charging process. When the input voltage is removed, the TP4056 automatically enters a low-current standby state, with the standby current dropping to 1uA.
Applications
- Charging dock
- Bluetooth headsets, GPS
- Mobile phones, PDAs, MP3/MP4 players
- Digital cameras, mini speakers, and other portable devices
Key features
- Pre-charge voltage: 4.2V
- Battery reverse polarity protection
- Maximum charge current: 1000mA
- Ultra-low quiescent current of 1uA (battery-only mode)
- No external MOSFET, sense resistor, or blocking diode required
- Intelligent thermal regulation for maximum charge rate, smart recharge, C/10 charge termination, 2.94V trickle charge threshold
- Package: ESOP8
