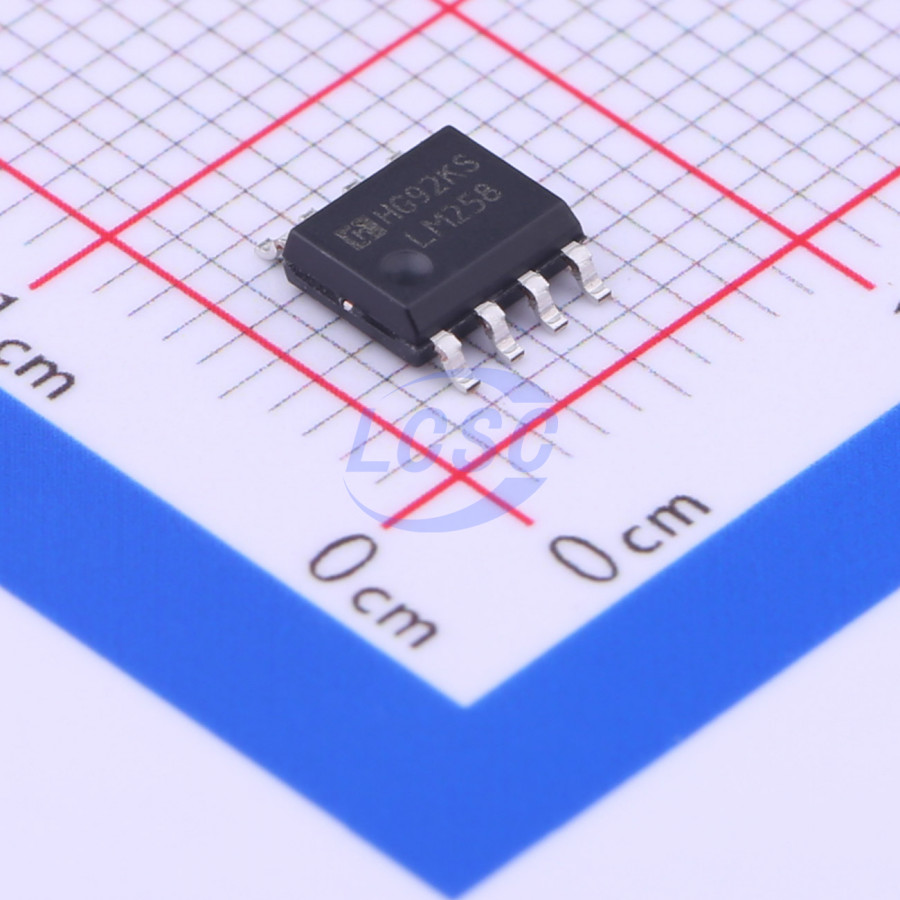

LM258M/TR
20mA 2 3mV 300V/ms 250nA 80dB 700uA 700kHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
Dual Operational Amplifiers
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM258M/TR
- Store part #
- C383067
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,640 in stock
#C383067
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.70 | ₹77.00 |
| 100+ | ₹6.03 | ₹603.00 |
| 300+ | ₹5.20 | ₹1,560.00 |
| 2,500+ | ₹4.58 | ₹11,450.00 |
| 5,000+ | ₹4.07 | ₹20,350.00 |
| 10,000+ | ₹3.82 | ₹38,200.00 |
10 × ₹7.70
₹77.00
excl. GST
₹90.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM258M/TR
₹77.00 for 10 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 2nA
- Operating Temperature
- -25℃~+85℃
- Ib - Input Bias Current
- 250nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 700uA
- Gain Bandwidth Product
- 700kHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.318 g
