HGSEMIDatasheet (PDF)

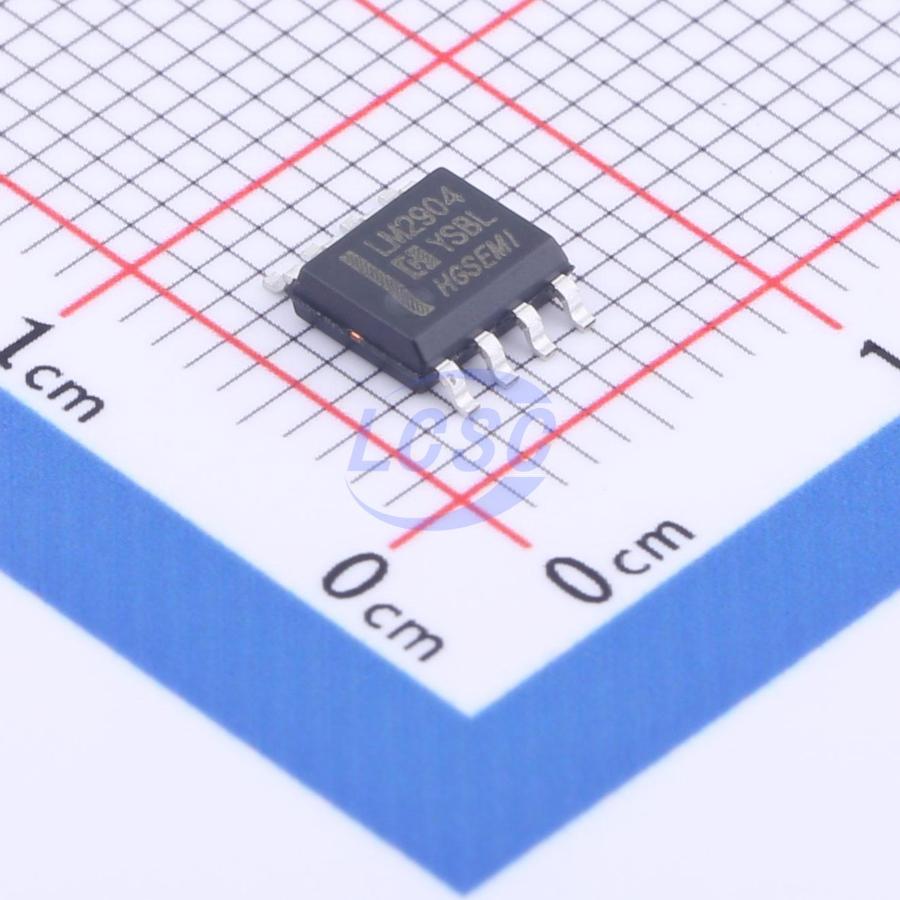

LM2904M/TR
20mA 2 3mV 300V/ms 500nA 80dB 1.2mA 700kHz SOP-8 Instrumentation, Op Amps, Buffer Amps
SOP-8RoHSActive
LMx58, LMx58x, LM2904, LM2904V Dual Operational Amplifiers
- Manufacturer
- HGSEMI
- Manufacturer part #
- LM2904M/TR
- Store part #
- C2688470
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,930 in stock
#C2688470
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.93 | ₹89.30 |
| 100+ | ₹7.16 | ₹716.00 |
| 300+ | ₹6.27 | ₹1,881.00 |
| 2,500+ | ₹5.61 | ₹14,025.00 |
| 5,000+ | ₹5.08 | ₹25,400.00 |
| 10,000+ | ₹4.80 | ₹48,000.00 |
10 × ₹8.93
₹89.30
excl. GST
₹105.37 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LM2904M/TR
₹89.30 for 10 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 300V/ms
- Input Offset Current(Ios)
- 300nA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 80dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 1.2mA
- Gain Bandwidth Product
- 700kHz
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -13V~13V
- Single Supply
- 3V~26V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.202 g
Overview
The LM2904 is a dual low-power differential operational amplifier capable of operating from either a single or dual power supply. It features high open-loop gain, internal compensation, wide common-mode input range, excellent temperature stability, and output short-circuit protection. It is widely used in sensor amplification circuits, DC amplifier modules, audio amplification circuits, and conventional op-amp circuit applications.
Applications
- Sensor signal amplifier
- DC gain
- Audio amplifier
- Other applications
Key features
- Internal frequency compensation
- Short-circuit protection
- Low power consumption: typical 0.5mA @ VCC=5
- Single supply voltage range: 3V ~ 36V
- Dual supply voltage range: ±18V
- Unity-gain bandwidth: up to 1.2MHz
- Package types: DIP-8, SOP-8, MSOP-8, DFN-8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM258M/TR#C383067HGSEMI · SOP-8 | HGSEMI | SOP-8 | 1,640 | ₹7.70 · 1,640 in stock | View |
 | LM358AM/TR#C2683129HGSEMI · SOP-8 | HGSEMI | SOP-8 | 3,330 | ₹9.29 · 3,330 in stock | View |
 | LM258AM/TR#C20613271HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,110 | ₹11.43 · 2,110 in stock | View |
| NJM4580M/TR#C41378163HGSEMI · SOP-8 | HGSEMI | SOP-8 | 3,590 | ₹12.18 · 3,590 in stock | View | |
 | RC4580M/TR#C434475HGSEMI · SOP-8 | HGSEMI | SOP-8 | 2,795 | ₹12.62 · 2,795 in stock | View |
