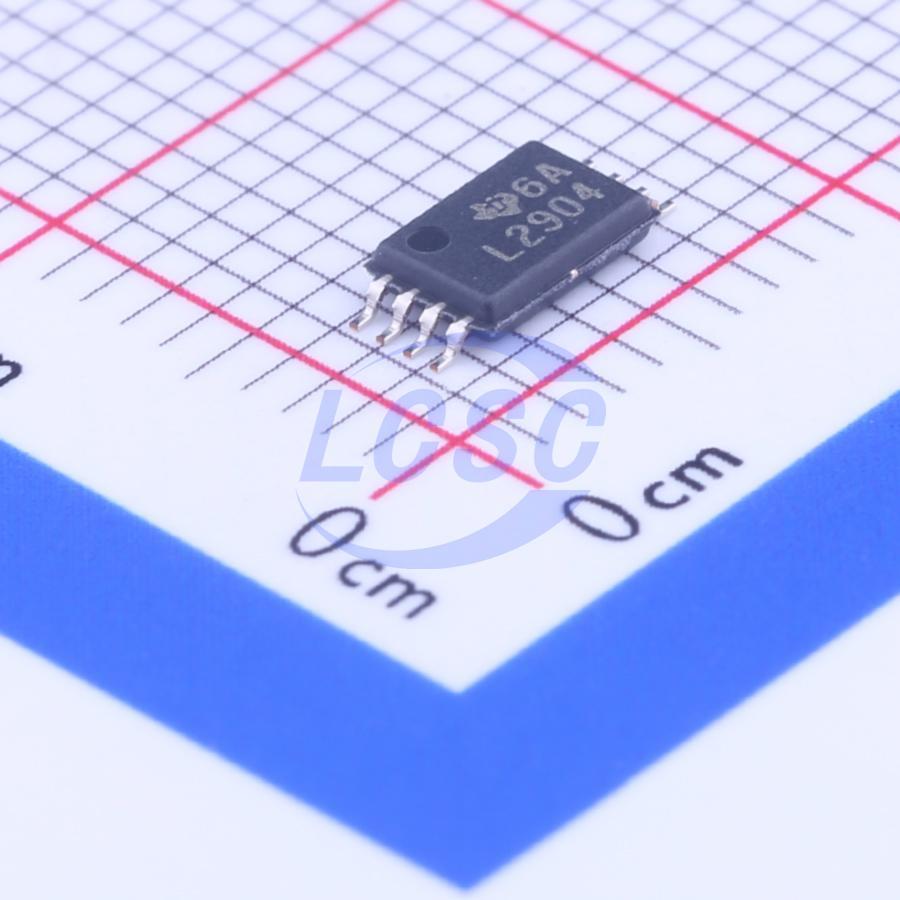

LM2904PWR

These devices consist of two independent, high-gain frequency-compensated operational amplifiers designed to operate from a single supply or split supply over a wide range of voltages.

Applications

• Blu-ray Players and Home Theaters
• Chemical and Gas Sensors
• DVD Recorder and Players
• Digital Multimeter: Bench and Systems
• Digital Multimeter: Handhelds
• Field Transmitter: Temperature Sensors
• Motor Control: AC Induction, Brushed DC, Brushless DC, High-Voltage, Low-Voltage, Permanent Magnet, and Stepper Motor
• Oscilloscopes
• TV: LCD and Digital
• Temperature Sensors or Controllers Using Modbus
• Weigh Scales

Key features

• Wide Supply Ranges – Single Supply: 3 V to 32 V (26 V for LM2904) Dual Supplies: ±1.5 V to ±16 V (±13 V for LM2904)
• Low Supply-Current Drain, Independent of Supply Voltage: 0.7 mA Typical
• Wide Unity Gain Bandwidth: 0.7 MHz
• Common-Mode Input Voltage Range Includes Ground, Allowing Direct Sensing Near Ground
• Low Input Bias and Offset Parameters – Input Offset Voltage: 3 mV Typical A Versions: 2 mV Typical
• Input Offset Current: 2 nA Typical
• Input Bias Current: 20 nA Typical A Versions: 15 nA Typical
• Differential Input Voltage Range Equal to Maximum-Rated Supply Voltage: 32 V (26 V for LM2904)
• Open-Loop Differential Voltage Gain: 100 dB Typical
• Internal Frequency Compensation
• On Products Compliant to MIL-PRF-38535, All Parameters are Tested Unless Otherwise Noted. On All Other Products, Production Processing Does Not Necessarily Include Testing of All Parameters.
