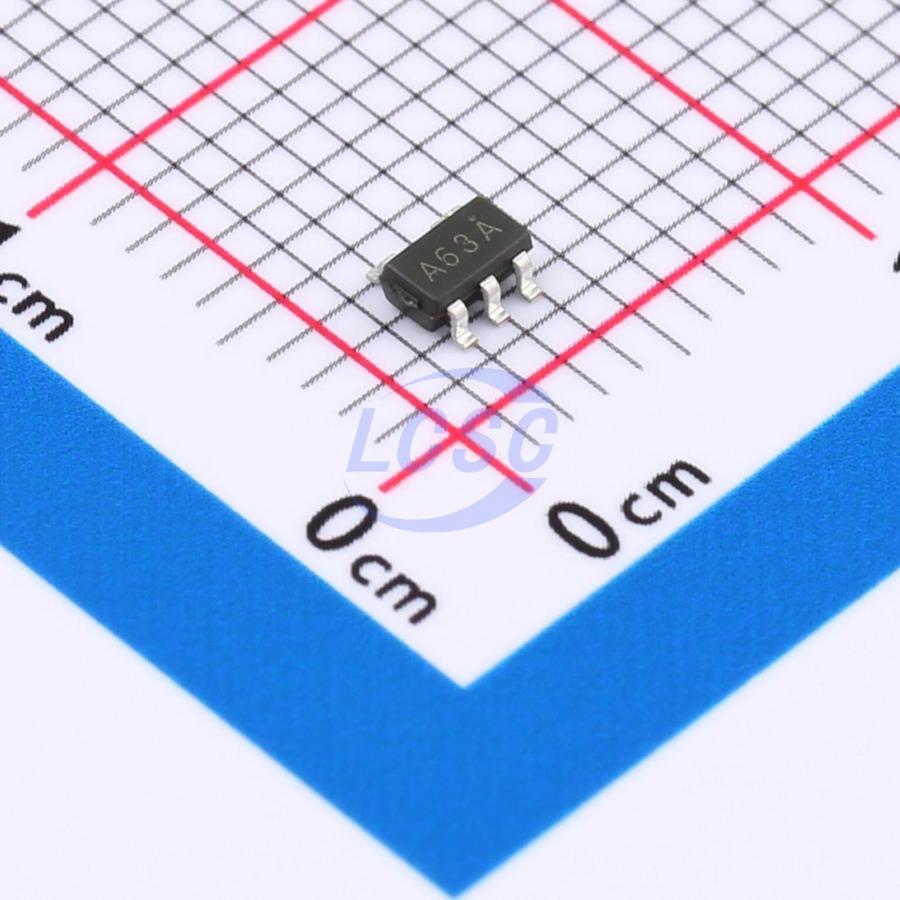

LM321
1 5mV 400V/ms 100dB 150nA 1MHz 100uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
1MHz, Low Power Single Op Amp
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- LM321
- Store part #
- C41431785
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,740 in stock
#C41431785
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.91 | ₹59.10 |
| 100+ | ₹4.78 | ₹478.00 |
| 300+ | ₹4.19 | ₹1,257.00 |
| 3,000+ | ₹3.48 | ₹10,440.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.96 | ₹26,640.00 |
10 × ₹5.91
₹59.10
excl. GST
₹69.74 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321
₹59.10 for 10 + GST
Specifications
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 5mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Ib - Input Bias Current
- 150nA
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 100uA
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.039 g
Overview
The LM321 brings performance and economy to low power systems. With a high unity gain frequency and a guaranteed 0.4V/μs Slew rate, the quiescent current is only 100μA(5V). The input common mode range includes ground and therefore the device is able to operate in single supply applications as well as in dual supply applications. It is also capable of comfortably driving large capacitive loads. Overall the LM321 is a low power, wide supply range performance op amp that can be designed into a wide range of applications at an economical price without sacrificing valuable board space.
Applications
- Chargers
- Desktops
- Active Filters
- Medical Equipment
- Battery and Power Supply Control
- Industrial controls and instruments
- Communications infrastructure
- Piezo Electrical Transducer Amplifier
Key features
- General Purpose, Low Cost
- Gain Bandwidth Product: 1MHz
- Low supply current 100μA
- Offset Voltage: 5.0mV
- Low input bias current 45nA
- Low Input Offset Current 3nA
- Wide Supply Voltage Range: 3V to 32V
- Operating Temperature: -40°C~+85°C
- Type Package: SOT23-5
