TECH PUBLIC

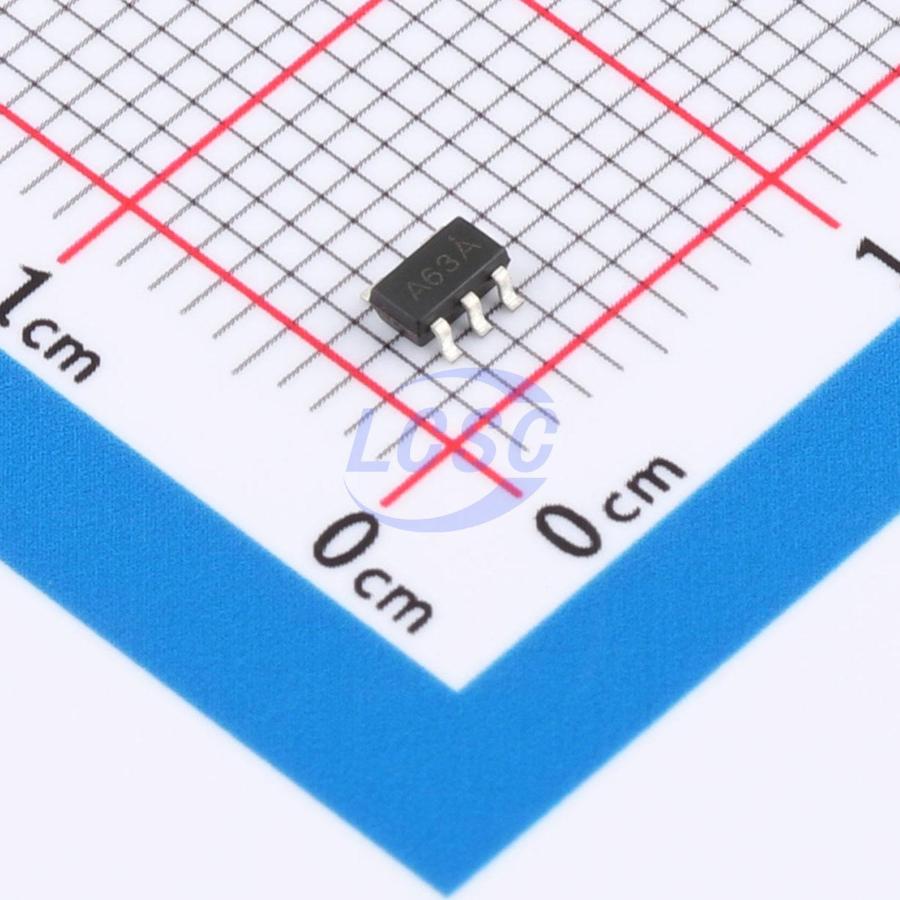

LM321MFX-TP

40mA 1 2mV 400V/ms 90dB 45nA 1MHz 100uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: TECH PUBLIC
Manufacturer part #: LM321MFX-TP
Store part #: C52205310
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,350 in stock

#C52205310

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
10+	₹5.37	₹53.70
100+	₹4.23	₹423.00
300+	₹3.66	₹1,098.00
3,000+	₹3.24	₹9,720.00
6,000+	₹2.90	₹17,400.00
9,000+	₹2.73	₹24,570.00

Quantity (min 10, multiples of 10)

10 × ₹5.37

₹53.70

excl. GST

₹63.37 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LM321MFX-TP

₹53.70 for 10 + GST

Specifications

Output Current: 40mA
Number of Channels: 1
Vos - Input Offset Voltage: 2mV
Slew Rate: 400V/ms
Input Offset Current(Ios): 3nA
Operating Temperature: -40℃~+85℃
Common Mode Rejection Ratio(CMRR): 90dB
Ib - Input Bias Current: 45nA
Gain Bandwidth Product: 1MHz
Quiescent Current: 100uA
Single Supply: 3V~32V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.038 g

Overview

The LM321 delivers a balance of performance and cost-efficiency for low-power systems. It features a high unity-gain bandwidth and a guaranteed slew rate of 0.4V/μs, with a quiescent current of only 100μA (at 5V). The input common-mode range includes ground, enabling operation in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. Overall, the LM321 is a low-power, wide supply range, high-performance op-amp that can be designed into a wide range of applications at an affordable price without consuming valuable board space.

Applications

Chargers
Desktop
Active Filters
Medical Equipment
Battery & Power Management
Industrial Control & Instrumentation
Communications Infrastructure
Piezoelectric Sensor Amplifiers

Key features

General purpose, low cost
Gain bandwidth product: 1MHz
Low supply current: 100μA
Offset voltage: 5.0mV
Low input bias current: 45nA
Low input offset current: 3nA
Wide supply voltage range: 3V ~ 32V
Operating temperature range: -40℃ ~ +85℃
Package type: SOT23-5
