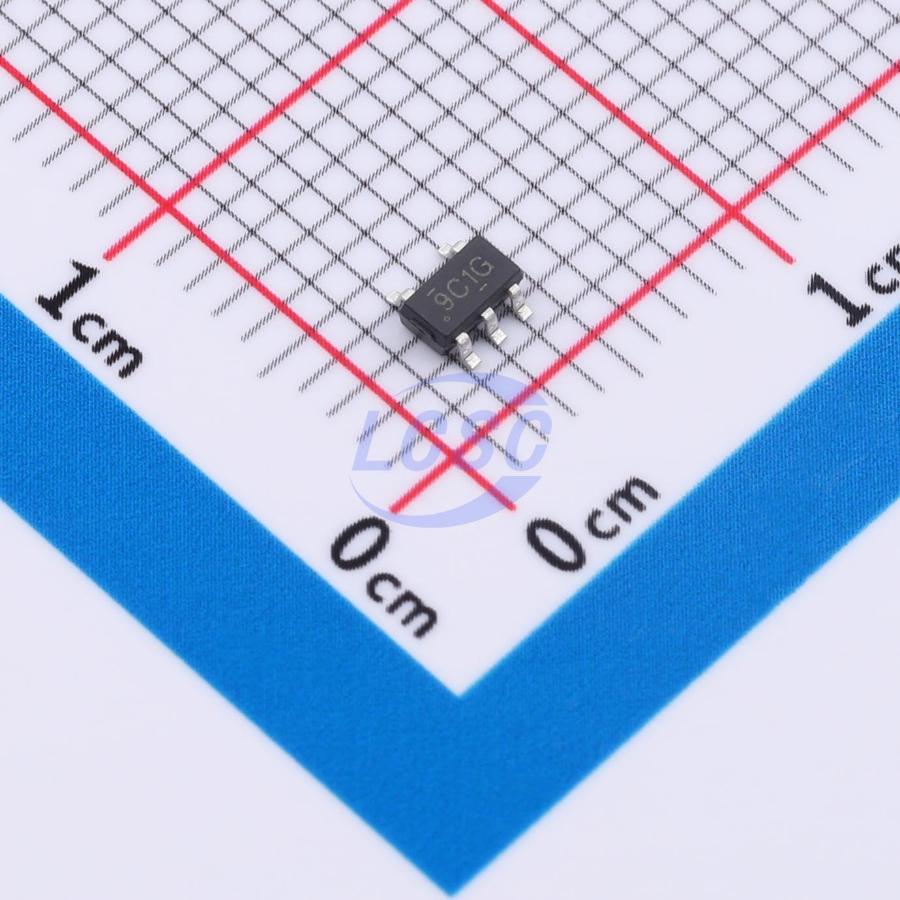

TS321IDBVR-TP
40mA 1 2mV 400V/ms 90dB 45nA 1MHz 100uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TS321IDBVR-TP
- Store part #
- C52817327
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,875 in stock
#C52817327
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.18 | ₹90.90 |
| 50+ | ₹14.28 | ₹714.00 |
| 150+ | ₹12.33 | ₹1,849.50 |
| 500+ | ₹10.86 | ₹5,430.00 |
| 3,000+ | ₹9.70 | ₹29,100.00 |
| 6,000+ | ₹9.12 | ₹54,720.00 |
5 × ₹18.18
₹90.90
excl. GST
₹107.26 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS321IDBVR-TP
₹90.90 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 45nA
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 100uA
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
Applications
- Chargers
- Desktop
- Active Filters
- Medical Devices
- Battery and Power Control
Key features
- General purpose, low cost
- Gain Bandwidth Product: 1MHz
- Low supply current: 100μA
- Input offset voltage: 5.0mV
- Low input bias current: 45nA
- Low input offset current: 3nA
- Wide supply voltage range: 3V to 32V
- Dual supply range: ±1.5V to ±16V
- Operating temperature: -40°C ~ +85°C
- Package type: SOT23-5
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TS321ILT-TP#C52817328TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 7,805 | ₹18.69 · 7,805 in stock | View |
 | LM321MFX-TP#C52205310TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,350 | ₹5.37 · 2,350 in stock | View |
| TL343IDBVR-TP#C53100560TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,695 | ₹15.76 · 2,695 in stock | View | |
 | LM321#C41431785TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,740 | ₹5.91 · 1,740 in stock | View |
 | TPV721LS5#C46472786TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,735 | ₹21.86 · 2,735 in stock | View |
