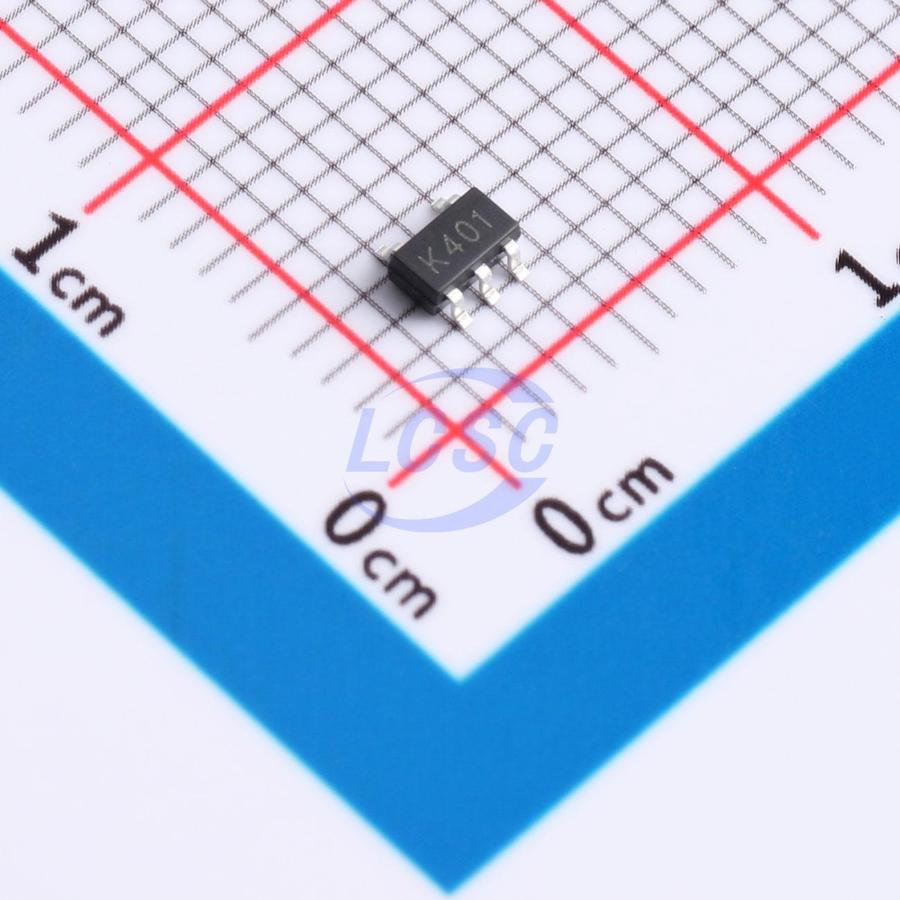

TS321ILT-TP
40mA 1 2mV 400V/ms 90dB 45nA 1MHz 100uA SOT-23-5 Instrumentation, Op Amps, Buffer Amps
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- TS321ILT-TP
- Store part #
- C52817328
- Package / case
- SOT-23-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,805 in stock
#C52817328
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.69 | ₹93.45 |
| 50+ | ₹14.69 | ₹734.50 |
| 150+ | ₹12.67 | ₹1,900.50 |
| 500+ | ₹11.18 | ₹5,590.00 |
| 3,000+ | ₹9.98 | ₹29,940.00 |
| 6,000+ | ₹9.37 | ₹56,220.00 |
5 × ₹18.69
₹93.45
excl. GST
₹110.27 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
TS321ILT-TP
₹93.45 for 5 + GST
Specifications
- Output Current
- 40mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 2mV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 3nA
- Operating Temperature
- -40℃~+85℃
- Common Mode Rejection Ratio(CMRR)
- 90dB
- Ib - Input Bias Current
- 45nA
- Gain Bandwidth Product
- 1MHz
- Quiescent Current
- 100uA
- Dual Supply
- -16V~-1.5V;1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The TS321 strikes a balance between performance and cost for low-power systems. It features a high unity-gain bandwidth and a guaranteed slew rate of 0.4V/μs, with a quiescent current of only 100μA (5V). The input common-mode range includes ground, enabling operation in both single-supply and dual-supply applications. It also drives large capacitive loads with ease. Overall, the TS321 is a high-performance op-amp with low power consumption and wide supply voltage range, offering a cost-effective solution for a broad range of applications without occupying valuable board space.
Applications
- Chargers
- Desktop
- Active Filters
- Medical Equipment
- Battery & Power Management
Key features
- General purpose, low cost
- Gain Bandwidth Product: 1MHz
- Low supply current: 100μA
- Offset voltage: 5.0mV
- Low input bias current: 45nA
- Low input offset current: 3nA
- Wide supply voltage range: 3V ~ 32V
- Dual supply range: ±1.5V ~ ±16V
- Operating temperature: -40℃ ~ +85℃
- Package type: SOT23-5
