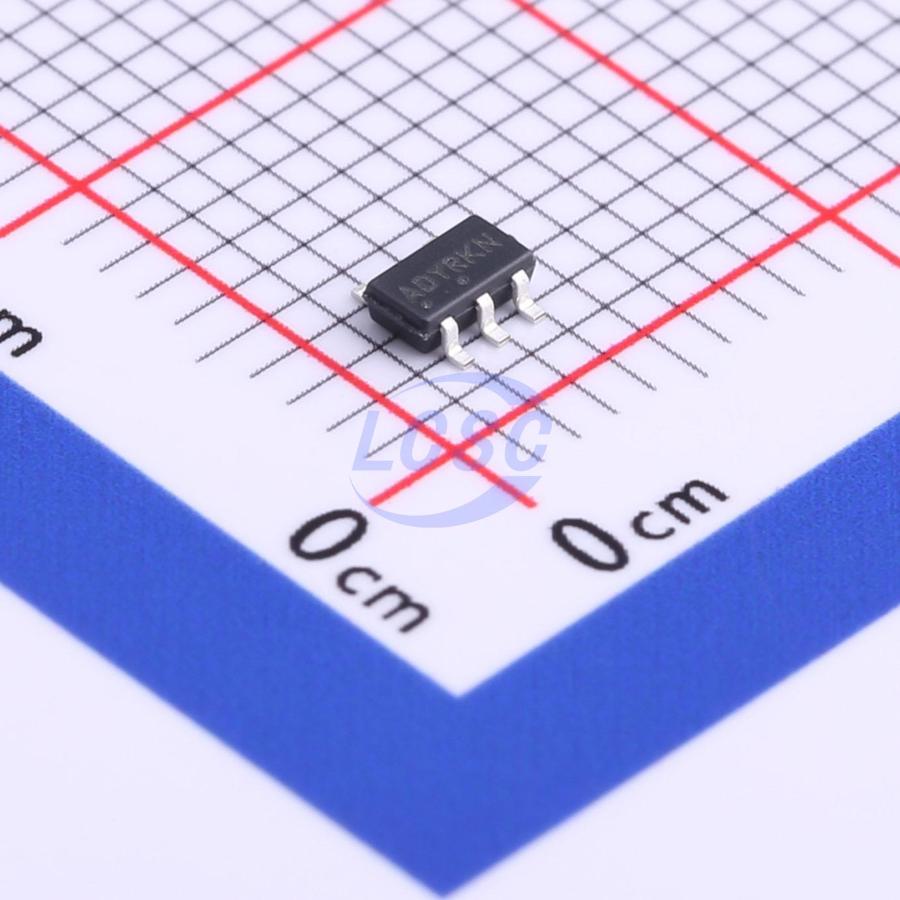

LM321SN3T1G
20mA 1 300uV 400V/ms 500nA 100dB 250uA 750kHz TSOP-5-1.5mm Instrumentation, Op Amps, Buffer Amps RoHS
TSOP-5-1.5mmROHS3 CompliantActive
Single Channel Operational Amplifier
- Manufacturer
- onsemi
- Manufacturer part #
- LM321SN3T1G
- Store part #
- C457686
- Package / case
- TSOP-5-1.5mm
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
15,680 in stock
#C457686
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.85 | ₹69.25 |
| 50+ | ₹10.66 | ₹533.00 |
| 150+ | ₹9.08 | ₹1,362.00 |
| 500+ | ₹7.89 | ₹3,945.00 |
| 3,000+ | ₹6.93 | ₹20,790.00 |
| 6,000+ | ₹6.46 | ₹38,760.00 |
5 × ₹13.85
₹69.25
excl. GST
₹81.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LM321SN3T1G
₹69.25 for 5 + GST
Specifications
- Output Current
- 20mA
- Number of Channels
- 1
- Vos - Input Offset Voltage
- 300uV
- Slew Rate
- 400V/ms
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 500nA
- Common Mode Rejection Ratio(CMRR)
- 100dB
- Input Offset Voltage Drift(Vos TC)
- 7uV/℃
- Quiescent Current
- 250uA
- Gain Bandwidth Product
- 750kHz
- Features
- Built-in compensation;ESD protection
- Input Voltage Noise Density
- 40nV/√Hz@1kHz
- Dual Supply
- -1.5V~16V
- Single Supply
- 3V~32V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.043 g
Overview
LM321 is a general purpose, single channel op amp with internal compensation and a true differential input stage. This op amp features a wide supply voltage ranging from 3 V to 32 V for single supplies and ±1.5 to ±16 V for split supplies, suiting a variety of applications. LM321 is unity gain stable even with large capacitive loads up to 1.5 nF. LM321 is available in a space-saving TSOP−5/SOT23−5 package.
Applications
- Gain Stage
- Active Filter
- Signal Processing
Key features
- Wide Supply Voltage Range: 3 V to 32 V
- Short Circuit Protected Outputs
- True Differential Input Stage
- Low Input Bias Currents
- Internally Compensated
- Single and Split Supply Operation
- Unity Gain Stable with 1.5 nF Capacitive Load
- This Device is Pb-Free, Halogen Free/BFR Free and is RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LM321G-AE5-R#C100068UTC · SOT-23-5 | UTC | SOT-23-5 | 16,973 | ₹15.06 · 16,973 in stock | View |
 | LM321A#C55336051WPMtek · SOT-23-5 | WPMtek | SOT-23-5 | 2,070 | ₹9.12 · 2,070 in stock | View |
 | LM321MF#C19723728HANSCHIP semiconductor · SOT-23-5 | HANSCHIP semiconductor | SOT-23-5 | 12,020 | ₹4.30 · 12,020 in stock | View |
 | LM321#C395460IDCHIP · SOT-23-5 | IDCHIP | SOT-23-5 | 21,310 | ₹6.15 · 21,310 in stock | View |
 | LM321M5X/TR#C398143HGSEMI · SOT-23-5 | HGSEMI | SOT-23-5 | 4,660 | ₹5.31 · 4,660 in stock | View |
