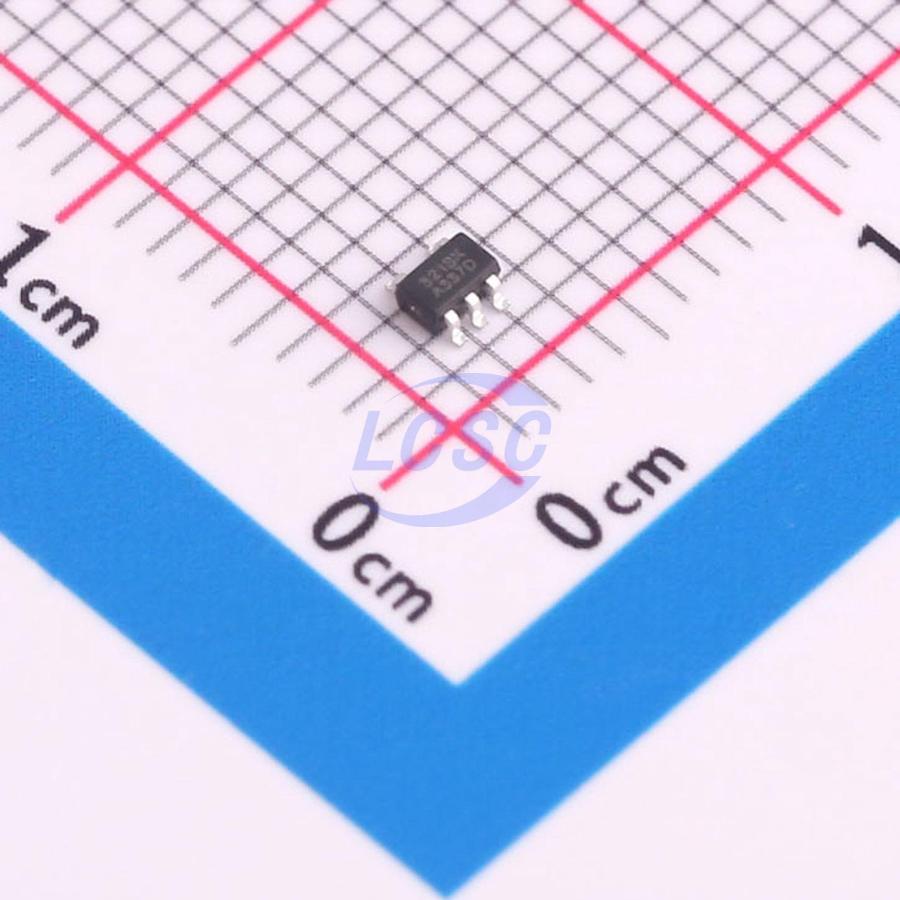

RS321BKXC5

120mA 1 4.5mV 450V/ms 10pA 85dB 85uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-353 Instrumentation, Op Amps, Buffer Amps

SOT-353RoHSActive

1MHz, Precision, Rail-to-Rail I/O CMoS Operational Amplifier

Manufacturer: RUNIC
Manufacturer part #: RS321BKXC5
Store part #: C2983747
Package / case: SOT-353
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,630 in stock

#C2983747

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹18.55	₹92.75
50+	₹13.87	₹693.50
150+	₹11.52	₹1,728.00
500+	₹9.76	₹4,880.00

Quantity (min 5, multiples of 5)

5 × ₹18.55

₹92.75

excl. GST

₹109.45 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

RS321BKXC5

₹92.75 for 5 + GST

Specifications

Output Current: 120mA
Number of Channels: 1
Vos - Input Offset Voltage: 4.5mV
Slew Rate: 450V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+125℃
Ib - Input Bias Current: 10pA
Common Mode Rejection Ratio(CMRR): 85dB
Input Offset Voltage Drift(Vos TC): 2uV/℃
Quiescent Current: 85uA
Gain Bandwidth Product: 1MHz
Features: Built-in compensation
Input Voltage Noise Density: 22nV/√Hz@1kHz
Dual Supply: -1.25V~2.75V
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Single Supply: 2.5V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.042 g

Overview

HIGH GAIN BANDWIDTH: 1MHz RAIL-TO-RAIL INPUT AND OUTPUT ±4.5mV Max Vos INPUT VOLTAGE RANGE: -0.1V to +5.68 with VS = 5.5V SUPPLY RANGE: +2.5V to +5.5V SPECIFIED UP TO ±125°C Micro SIZE PACKAGES: SOT353(SC70-5)

Applications

SENSORS
PHOTODIODE AMPLIFICATION
ACTIVE FILTERS
TEST EQUIPMENT DRIVING A/D CONVERTERS
