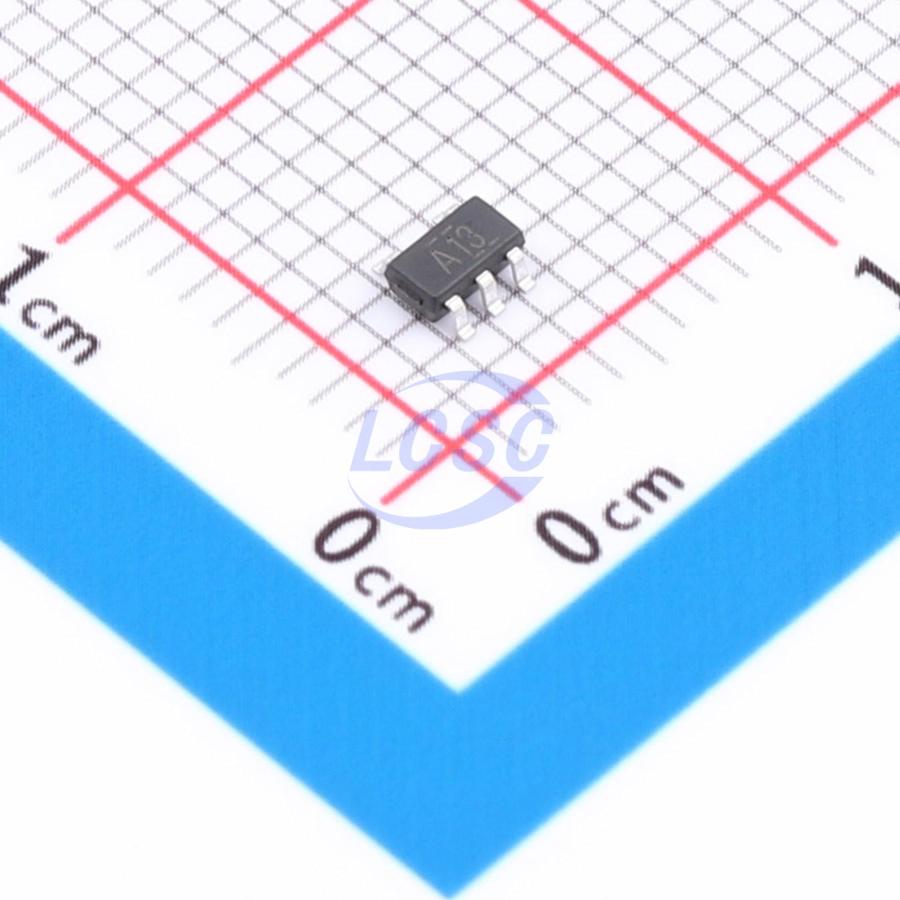

LMV321M5X/TR

30mA 1 800uV 500V/ms 70dB 10pA 75uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOT-23-5 Instrumentation, Op Amps, Buffer Amps

SOT-23-5RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: LMV321M5X/TR
Store part #: C51889725
Package / case: SOT-23-5
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

9,320 in stock

#C51889725

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹6.10	₹61.00
100+	₹4.84	₹484.00
300+	₹4.22	₹1,266.00
3,000+	₹3.76	₹11,280.00
6,000+	₹3.37	₹20,220.00
9,000+	₹3.19	₹28,710.00

Quantity (min 10, multiples of 10)

10 × ₹6.10

₹61.00

excl. GST

₹71.98 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

LMV321M5X/TR

₹61.00 for 10 + GST

Specifications

Output Current: 30mA
Number of Channels: 1
Vos - Input Offset Voltage: 800uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 500pA
Operating Temperature: -40℃~+105℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 75uA
Gain Bandwidth Product: 1.5MHz
Features: Built-in compensation
Input Voltage Noise Density: 27nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.036 g

Overview

LMV321 (single), LMV358 (dual), and LMV324 (quad) are rail-to-rail input, voltage feedback, low-power op-amps featuring wide input common-mode voltage range and output swing. The minimum operating voltage is as low as 2.1V, with a recommended maximum of 5.5V. This family delivers a 1.5MHz gain-bandwidth product at approximately 45μA quiescent current per amplifier. The ultra-low input bias current (approximately 10pA) makes these devices suitable for integrators, photodiode amplifiers, and piezoelectric sensors. Rail-to-rail input and output buffering also supports specific IC designs in single-supply systems. Applications include security monitoring, portable equipment, battery and power control, and signal processing and interfacing in low-power sensor systems.

Key features

Low power consumption
Rail-to-rail input and output, typical offset voltage 0.8mV
Unity-gain stable
Gain bandwidth product 1.5MHz
Low input bias current: 10pA level, less than 1nA
Operating voltage range 2.1V~5.5V
Low supply current: 45μA per channel
