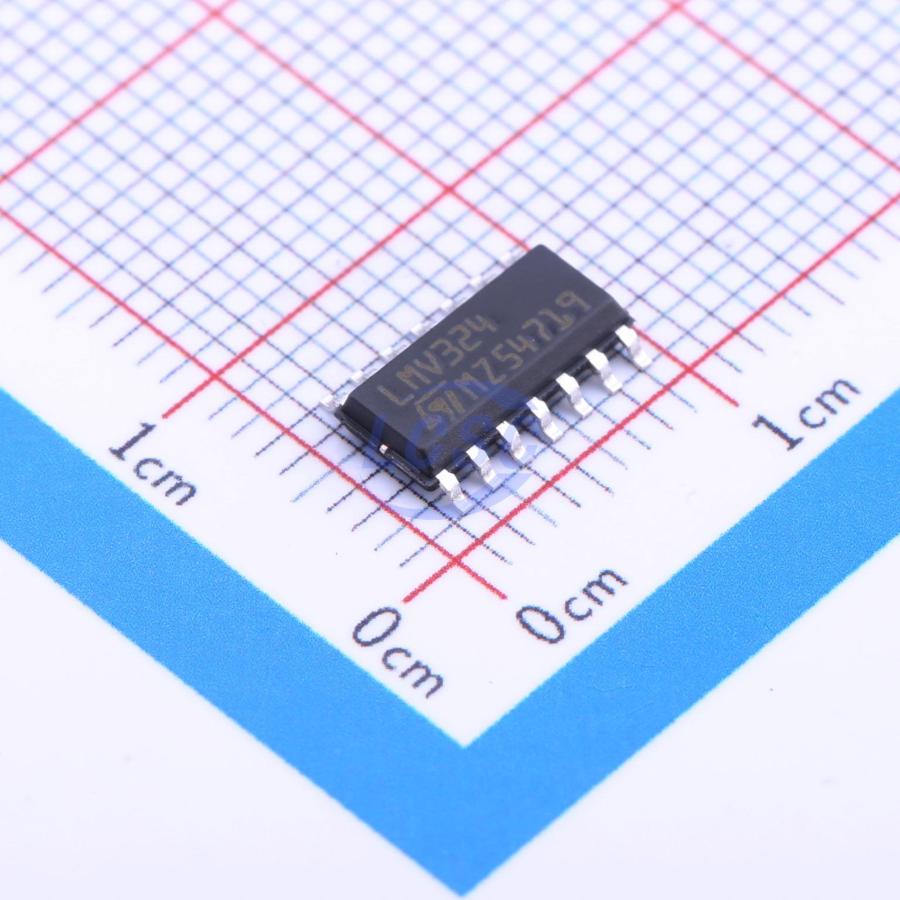

LMV324IDT
46mA 4 3mV 450V/ms 95dB 95nA 145uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output SOIC-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOIC-14ROHS3 CompliantActive
Low-power, input/output rail-to-rail operational amplifier
- Manufacturer
- ST
- Manufacturer part #
- LMV324IDT
- Store part #
- C89884
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,383 in stock
#C89884
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹68.43 | ₹68.43 |
| 10+ | ₹53.87 | ₹538.70 |
| 30+ | ₹47.58 | ₹1,427.40 |
| 100+ | ₹39.76 | ₹3,976.00 |
| 500+ | ₹36.28 | ₹18,140.00 |
| 1,000+ | ₹34.11 | ₹34,110.00 |
1 × ₹68.43
₹68.43
excl. GST
₹80.75 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV324IDT
₹68.43 for 1 + GST
Specifications
- Output Current
- 46mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 3mV
- Slew Rate
- 450V/ms
- Input Offset Current(Ios)
- 1nA
- Operating Temperature
- -40℃~+125℃
- Common Mode Rejection Ratio(CMRR)
- 95dB
- Ib - Input Bias Current
- 95nA
- Input Offset Voltage Drift(Vos TC)
- 9uV/℃
- Quiescent Current
- 145uA
- Gain Bandwidth Product
- 1MHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.7V~6V
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.263 g
Overview
The LMV321/358/324 family (single, dual, and quad) answers the need for low cost, general-purpose operational amplifiers. They operate with voltages as low as 2.7 V and feature both input and output rail-to-rail, 145 μA consumption current, and 1 MHz gain bandwidth product (GBP). With such a low consumption and a sufficient GBP for many applications, these op amps are well suited for any kind of battery supplied and portable equipment application. The LMV321 device is housed in the space-saving 5-pin SOT23-5 package, which simplifies board design. The SOT23-5 has two pinning configurations to answer all application requirements.
Applications
- Battery powered electronic equipment
- Personal medical care (glucose meters)
- Laptops
Key features
- Operating range from V_CC = 2.7 to 6 V
- Rail-to-rail input and output
- Extended V_icm (V_DD - 0.2 V to V_CC + 0.2 V)
- Low supply current (145 μA)
- Gain bandwidth product (1 MHz)
- ESD tolerance (2 kV)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV324ADTR(XBLW)#C18723611XBLW · SOP-14 | XBLW | SOP-14 | 2,735 | ₹22.50 · 2,735 in stock | View |
 | LMV324IDR(MS)#C20627195MSKSEMI · SOIC-14 | MSKSEMI | SOIC-14 | 620 | ₹14.58 · 620 in stock | View |
 | RS324AXP#C2887731RUNIC · SOP-14 | RUNIC | SOP-14 | 7,715 | ₹30.20 · 7,715 in stock | View |
 | COS324TR#C2897458COSINE · TSSOP-14 | COSINE | TSSOP-14 | 3,830 | ₹24.82 · 3,830 in stock | View |
 | LMV324#C395458IDCHIP · SOP-14 | IDCHIP | SOP-14 | 2,860 | ₹17.01 · 2,860 in stock | View |
