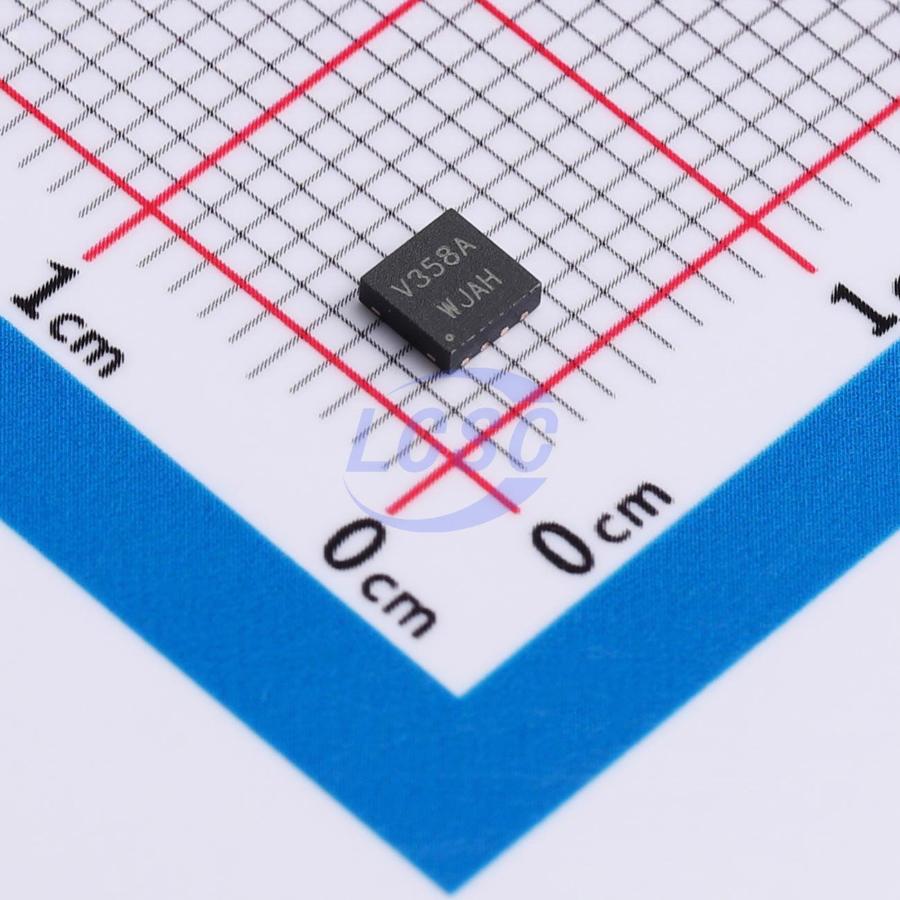

LMV358ADQ3/TR

30mA 2 800uV 500V/ms 70dB 10pA 45uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output DFN-8(3x3) Instrumentation, Op Amps, Buffer Amps

DFN-8(3x3)RoHSActive

Manufacturer: HGSEMI
Manufacturer part #: LMV358ADQ3/TR
Store part #: C52160363
Package / case: DFN-8(3x3)
Category: Instrumentation, Op Amps, Buffer Amps
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,990 in stock

#C52160363

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹17.74	₹88.70
50+	₹14.09	₹704.50
150+	₹12.28	₹1,842.00
500+	₹10.90	₹5,450.00
2,500+	₹9.82	₹24,550.00
5,000+	₹9.26	₹46,300.00

Quantity (min 5, multiples of 5)

5 × ₹17.74

₹88.70

excl. GST

₹104.67 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

LMV358ADQ3/TR

₹88.70 for 5 + GST

Specifications

Output Current: 30mA
Number of Channels: 2
Vos - Input Offset Voltage: 800uV
Slew Rate: 500V/ms
Input Offset Current(Ios): 10pA
Operating Temperature: -40℃~+105℃
Common Mode Rejection Ratio(CMRR): 70dB
Ib - Input Bias Current: 10pA
Input Offset Voltage Drift(Vos TC): 2.7uV/℃
Quiescent Current: 45uA
Gain Bandwidth Product: 1.5MHz
Input Voltage Noise Density: 27nV/√Hz@1kHz
Rail to Rail: Rail-to-Rail Input, Rail-to-Rail Output
Dual Supply: -2.75V~-1.25V;1.25V~2.75V
Single Supply: 2.1V~5.5V

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.174 g

Overview

LMV321A (single), LMV358A (dual), and LMV324A (quad) are rail-to-rail input, voltage feedback, low-power operational amplifiers. They feature a wide input common-mode voltage range and output swing; minimum operating voltage down to 2.1V, with a maximum recommended operating voltage of 5.5V. This amplifier series delivers a 1.5MHz gain-bandwidth product at approximately 45μA quiescent current per amplifier. The ultralow input bias current (approximately 10pA level) makes them suitable for integrator, photodiode amplifier, and piezoelectric sensor applications. Rail-to-rail input and output buffering is also used in specific IC designs for single-supply systems. Applications for this amplifier series include safety monitoring, portable devices, battery and power supply control, and signal processing and interfacing in low-power sensor systems.

Applications

ASIC input and output op-amps
Sensor interfaces
Piezoelectric sensor amplifiers
Medical devices
Mobile communications

Key features

Low power consumption
Rail-to-rail input and output, typical Vos of 0.8mV
Unity-gain stable
Gain bandwidth product 1.5MHz
Low input bias current: 10pA level, <1nA
Operating voltage 2.1V~5.5V
Low supply current: 45μA per channel
