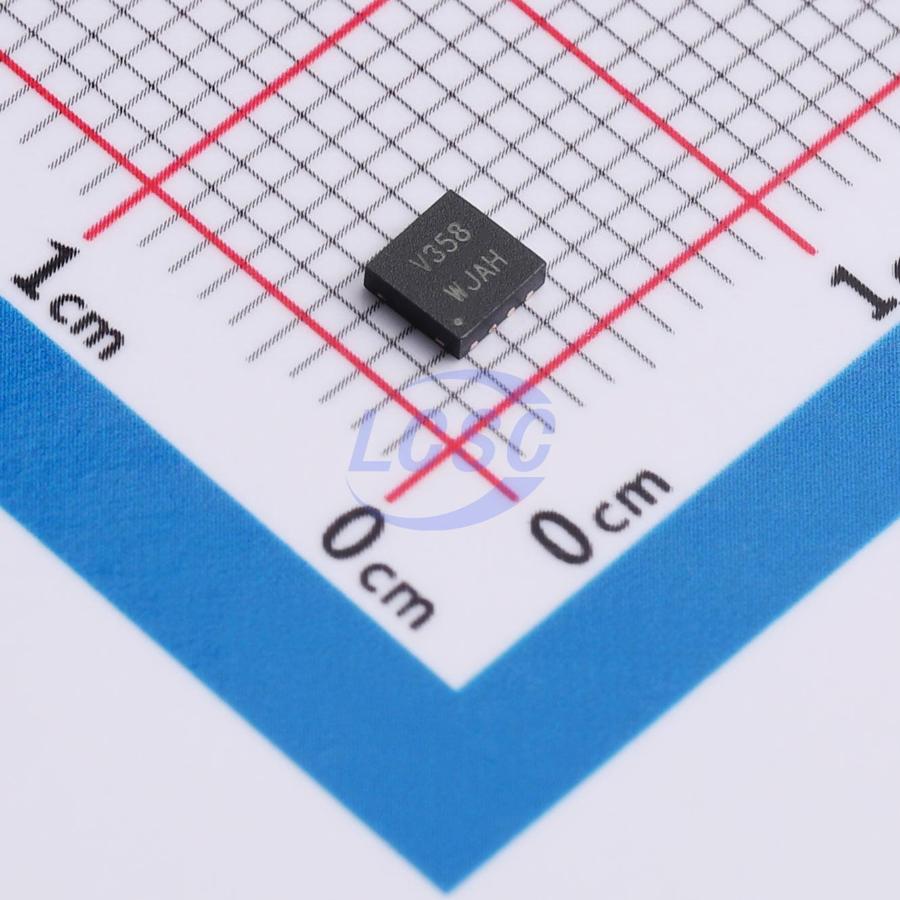

LMV358DQ3/TR
30mA 2 800uV 500V/ms 70dB 10pA 45uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output DFN-8(3x3) Instrumentation, Op Amps, Buffer Amps
DFN-8(3x3)RoHSActive
- Manufacturer
- HGSEMI
- Manufacturer part #
- LMV358DQ3/TR
- Store part #
- C52160362
- Package / case
- DFN-8(3x3)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,975 in stock
#C52160362
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.39 | ₹71.95 |
| 50+ | ₹11.43 | ₹571.50 |
| 150+ | ₹9.95 | ₹1,492.50 |
| 500+ | ₹8.84 | ₹4,420.00 |
| 2,500+ | ₹7.95 | ₹19,875.00 |
| 5,000+ | ₹7.51 | ₹37,550.00 |
5 × ₹14.39
₹71.95
excl. GST
₹84.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 5,000 per reel
LMV358DQ3/TR
₹71.95 for 5 + GST
Specifications
- Output Current
- 30mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 800uV
- Slew Rate
- 500V/ms
- Input Offset Current(Ios)
- 10pA
- Operating Temperature
- -40℃~+105℃
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Ib - Input Bias Current
- 10pA
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Quiescent Current
- 45uA
- Gain Bandwidth Product
- 1.5MHz
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Dual Supply
- -2.75V~-1.25V;1.25V~2.75V
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 5,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.175 g
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | LMV358ADQ3/TR#C52160363HGSEMI · DFN-8(3x3) | HGSEMI | DFN-8(3x3) | 4,990 | ₹17.74 · 4,990 in stock | View |
 | TLV9062DQ3/TR-HG#C53311466HGSEMI · DFN-8(3x3) | HGSEMI | DFN-8(3x3) | 4,920 | ₹25.06 · 4,920 in stock | View |
| AD8542AIDQ3/TR-HG#C54900089HGSEMI · DFN-8(3x3) | HGSEMI | DFN-8(3x3) | 5,000 | ₹41.16 · 5,000 in stock | View | |
| JRC4580DQ/TR#C42441905HGSEMI · DFN-8-EP(3x3) | HGSEMI | DFN-8-EP(3x3) | 1,895 | ₹14.04 · 1,895 in stock | View | |
 | NJM4580DQ/TR#C42441906HGSEMI · DFN-8-EP(3x3) | HGSEMI | DFN-8-EP(3x3) | 1,755 | ₹14.04 · 1,755 in stock | View |
