lingxingicDatasheet (PDF)

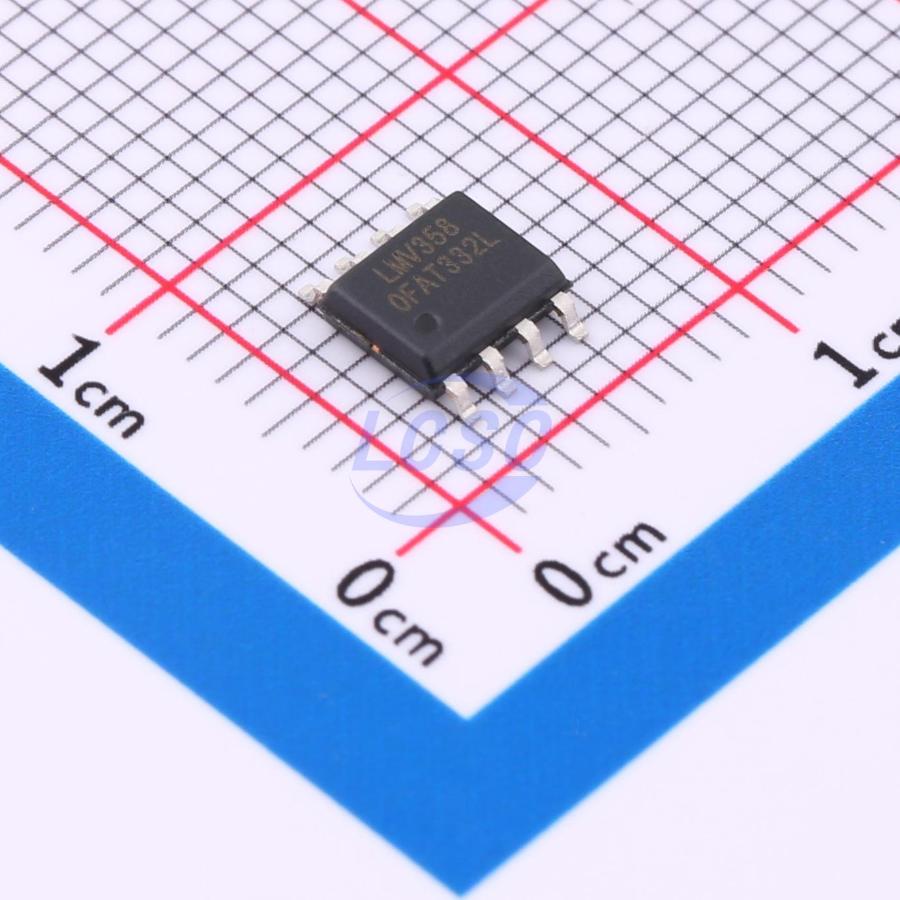

LMV358DR(LX)
Standard (General Purpose) Amplifier 2 Circuit Rail-to-Rail Input, Rail-to-Rail Output SOP-8
SOP-8RoHSActive
Channel rail-to-rail operational amplifier
- Manufacturer
- lingxingic
- Manufacturer part #
- LMV358DR(LX)
- Store part #
- C24833648
- Package / case
- SOP-8
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,450 in stock
#C24833648
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.85 | ₹88.50 |
| 100+ | ₹7.00 | ₹700.00 |
| 300+ | ₹6.07 | ₹1,821.00 |
| 1,000+ | ₹5.38 | ₹5,380.00 |
| 4,000+ | ₹4.43 | ₹17,720.00 |
| 8,000+ | ₹4.15 | ₹33,200.00 |
10 × ₹8.85
₹88.50
excl. GST
₹104.43 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 4,000 per reel
LMV358DR(LX)
₹88.50 for 10 + GST
Specifications
- Output Current
- 100mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 4mV
- Slew Rate
- 700V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+85℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 85dB
- Input Offset Voltage Drift(Vos TC)
- 2uV/℃
- Quiescent Current
- 80uA
- Gain Bandwidth Product
- 1MHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.5V~5.5V
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 4,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.188 g
Overview
LMV358 is a rail-to-rail input/output operational amplifier featuring a wide common-mode input voltage range and output voltage range.
Applications
- Sense amplifier
- DC gain block
- Audio amplifier
- Industrial control
Key features
- Operating voltage range: 2.5V ~ 5.5V
- Offset voltage < 4mV
- Offset voltage temperature drift: 2μV/℃
- Gain bandwidth: 1MHz
- Output capability: 100mA
- Rail-to-rail input and output
- Slew rate: 0.7V/μs
- Supply current: 80μA (per channel)
- Operating temperature range: -40℃ ~ +85℃
- Package: SOP8/MSOP8/TSSOP8
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MCP6002T-I/SN(LX)#C48997707lingxingic · SOP-8 | lingxingic | SOP-8 | 1,245 | ₹11.10 · 1,245 in stock | View |
 | TL062CDR(LX)#C49396711lingxingic · SOP-8 | lingxingic | SOP-8 | 4,250 | ₹17.25 · 4,250 in stock | View |
 | NJM4558(LX)#C24833653lingxingic · SOP-8 | lingxingic | SOP-8 | 1,130 | ₹7.30 · 1,130 in stock | View |
 | TL072CDR(LX)#C49396713lingxingic · SOP-8 | lingxingic | SOP-8 | 3,055 | ₹12.67 · 3,055 in stock | View |
 | TL082CDR(LX)#C49396715lingxingic · SOP-8 | lingxingic | SOP-8 | 3,200 | ₹12.67 · 3,200 in stock | View |
