HANSCHIP semiconductorDatasheet (PDF)

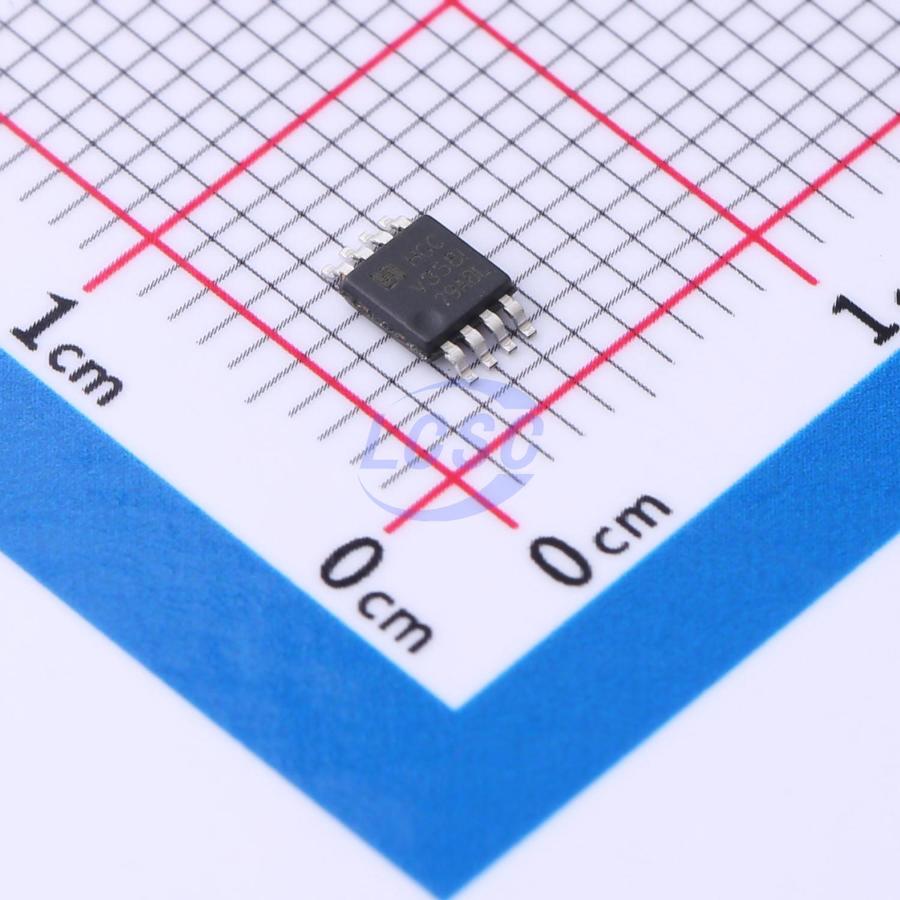

LMV358IDGKRG
84mA 2 3.5mV 600V/ms 1pA 70dB 40uA 1MHz Rail-to-Rail Input, Rail-to-Rail Output MSOP-8L Instrumentation, Op Amps, Buffer Amps RoHS
MSOP-8LROHS CompliantActive
1MHz CMoS Rail-to-Rail Io Opamp with RF Filter
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- LMV358IDGKRG
- Store part #
- C5145253
- Package / case
- MSOP-8L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
19,940 in stock
#C5145253
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.31 | ₹93.10 |
| 100+ | ₹7.54 | ₹754.00 |
| 300+ | ₹6.65 | ₹1,995.00 |
| 3,000+ | ₹5.48 | ₹16,440.00 |
| 6,000+ | ₹4.95 | ₹29,700.00 |
| 9,000+ | ₹4.68 | ₹42,120.00 |
10 × ₹9.31
₹93.10
excl. GST
₹109.86 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
LMV358IDGKRG
₹93.10 for 10 + GST
Specifications
- Output Current
- 84mA
- Number of Channels
- 2
- Vos - Input Offset Voltage
- 3.5mV
- Slew Rate
- 600V/ms
- Input Offset Current(Ios)
- 1pA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 1pA
- Common Mode Rejection Ratio(CMRR)
- 70dB
- Input Offset Voltage Drift(Vos TC)
- 2.7uV/℃
- Quiescent Current
- 40uA
- Gain Bandwidth Product
- 1MHz
- Input Voltage Noise Density
- 27nV/√Hz@1kHz
- Dual Supply
- -2.75V~-1.05V;1.05V~2.75V
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 2.1V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.078 g
Overview
LMV321, LMV358, and LMV324 are rail-to-rail input and output, voltage feedback, low-power op amp families. They feature a wide input common-mode voltage range and output swing, with a minimum operating voltage of 2.1V and a maximum recommended operating voltage of 5.5V. These amplifiers deliver a gain bandwidth product of 1.1MHz at a quiescent current of approximately 45uA per channel, along with ultra-low input bias current. Their rail-to-rail input and output characteristics make them well suited for specific IC designs in single-supply systems. Applications include signal processing and interfacing in portable devices, battery-powered equipment, and low-power sensor systems.
Applications
- ASIC input and output op-amps
- Sensor interfaces
- Medical devices
- Mobile communications
- Portable systems
Key features
- Low power consumption
- Rail-to-rail input and output, typical offset voltage 0.8mV
- Unity-gain stable
- Gain bandwidth product 1.1MHz
- Low input bias current: 10pA level, less than 1nA
- Operating voltage range 2.1V to 5.5V
- Low operating current: 45uA per channel
- Available in compact package options
