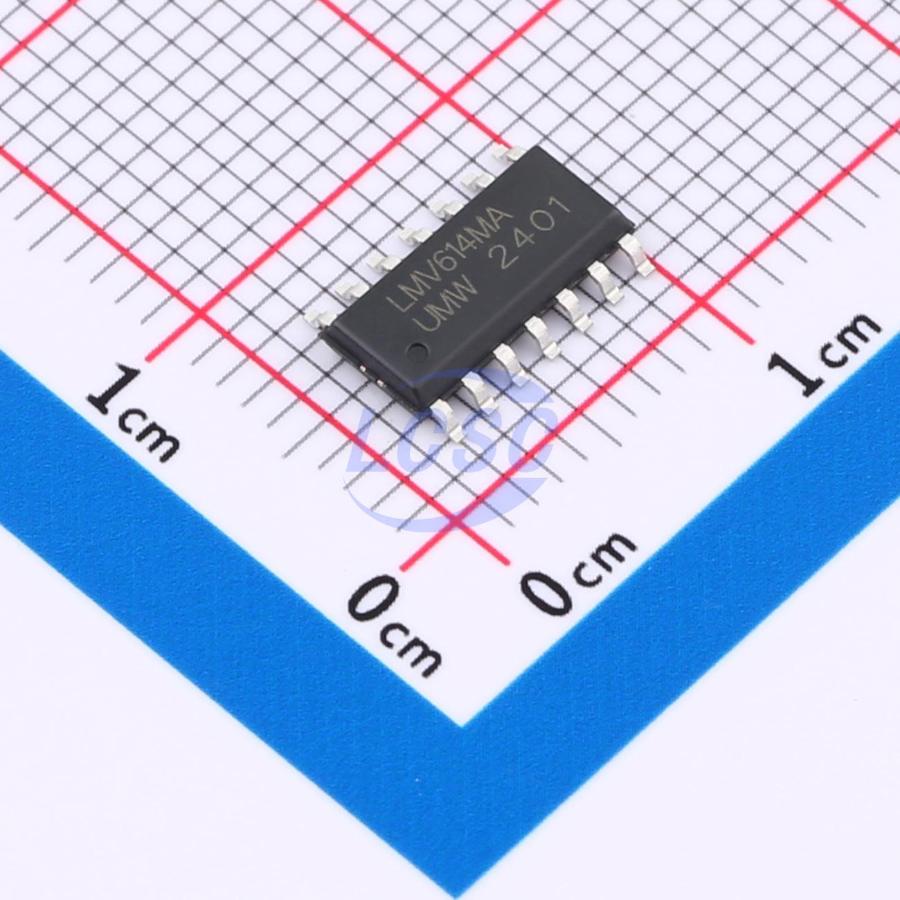

LMV614MAX(UMW)
100mA 4 5.5mV 420V/ms 35nA 78dB 210uA 1.5MHz Rail-to-Rail Input, Rail-to-Rail Output SOP-14 Instrumentation, Op Amps, Buffer Amps RoHS
SOP-14ROHS CompliantActive
Single, Dual, and Quad, 1.4-MHz, Low-Power, General-Purpose 1.8-V Operational Amplifiers
- Manufacturer
- UMW
- Manufacturer part #
- LMV614MAX(UMW)
- Store part #
- C20754796
- Package / case
- SOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
9,060 in stock
#C20754796
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.09 | ₹125.45 |
| 50+ | ₹21.92 | ₹1,096.00 |
| 150+ | ₹20.56 | ₹3,084.00 |
| 500+ | ₹18.87 | ₹9,435.00 |
| 2,500+ | ₹18.12 | ₹45,300.00 |
| 5,000+ | ₹17.67 | ₹88,350.00 |
5 × ₹25.09
₹125.45
excl. GST
₹148.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
LMV614MAX(UMW)
₹125.45 for 5 + GST
Specifications
- Output Current
- 100mA
- Number of Channels
- 4
- Vos - Input Offset Voltage
- 5.5mV
- Slew Rate
- 420V/ms
- Input Offset Current(Ios)
- 9nA
- Operating Temperature
- -40℃~+125℃
- Ib - Input Bias Current
- 35nA
- Common Mode Rejection Ratio(CMRR)
- 78dB
- Input Offset Voltage Drift(Vos TC)
- 5.5uV/℃
- Quiescent Current
- 210uA
- Gain Bandwidth Product
- 1.5MHz
- Input Voltage Noise Density
- 60nV/√Hz@10kHz
- Rail to Rail
- Rail-to-Rail Input, Rail-to-Rail Output
- Single Supply
- 1.8V~5.5V
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.287 g
Overview
The LMV61x devices are single, dual, and quad low-voltage, low-power op amps designed for low-voltage general-purpose applications. Key features include rail-to-rail input or output, a low supply voltage of 1.8V, and a wide temperature range. The input common-mode range of the LMV61x extends 200mV beyond the supply rails. At a 1.8V supply, the output swings rail-to-rail under no load and to within 30mV of the rail with a 2-kΩ load. The LMV61x achieves a gain bandwidth of 1.4 MHz while drawing a typical quiescent current of 100 μA.
Applications
- Consumer communications
- Consumer computing
- Personal digital assistants
- Audio preamplifiers
Key features
- Supply voltage: 1.8 V (typical)
- Ensured compliance with 1.8-V, 2.7-V, and 5-V specifications
- Output swing: -80 mV from rail with 600-Ω load, -30 mV from rail with 2-kΩ load
- V_CM = 200 mV beyond rail
- 100-μA supply current (per channel)
- 1.4-MHz gain bandwidth product
- Maximum offset voltage = 4 mV
- Temperature range: -40℃ to 125℃
