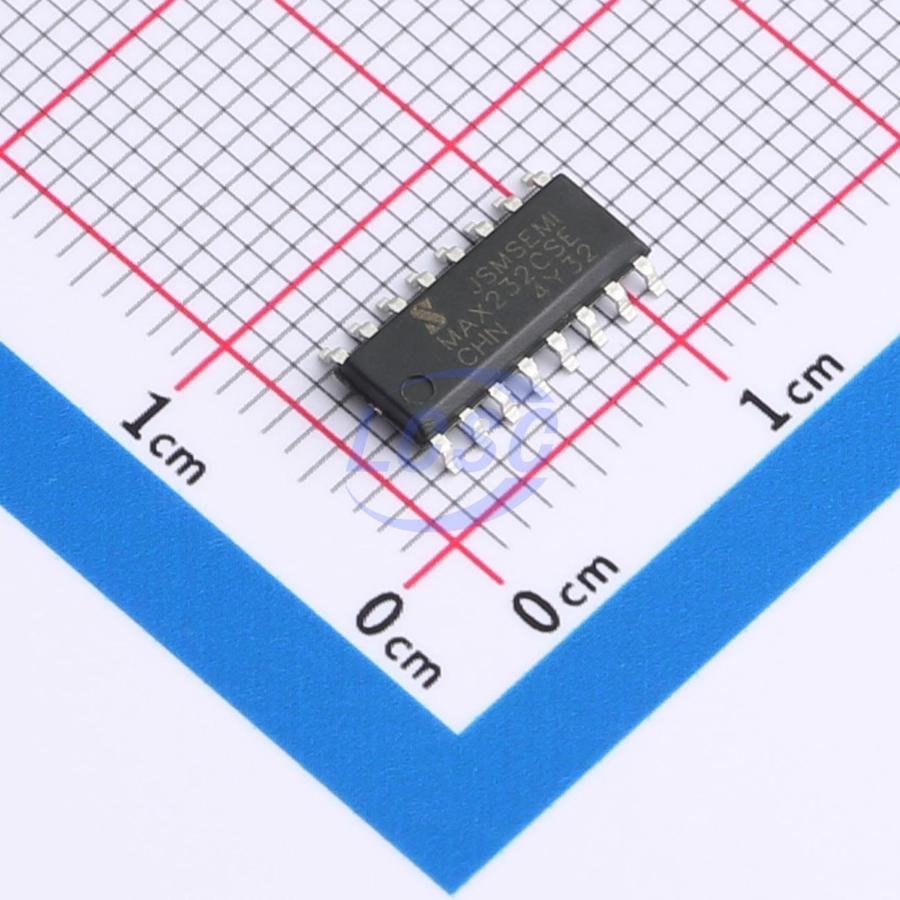

MAX232ESE+T-JSM
3V~5.5V Transceiver 500Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
MAX232 Series RS-232 Line Driver and Receiver
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MAX232ESE+T-JSM
- Store part #
- C41421781
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,410 in stock
#C41421781
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹47.42 | ₹237.10 |
| 50+ | ₹37.03 | ₹1,851.50 |
| 150+ | ₹32.59 | ₹4,888.50 |
| 500+ | ₹27.03 | ₹13,515.00 |
| 2,500+ | ₹25.18 | ₹62,950.00 |
| 5,000+ | ₹23.69 | ₹1,18,450.00 |
5 × ₹47.42
₹237.10
excl. GST
₹279.78 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX232ESE+T-JSM
₹237.10 for 5 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 500Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.331 g
Overview
The MAX232 interface chip consists of two-channel drivers, two-channel receivers, and a dual charge pump circuit, with ±15kV IEC ESD protection on the serial port. The MAX232 complies with TIA/EIA-232-F requirements, providing electrical interface functionality between asynchronous communication controllers and serial port connectors. The on-chip charge pump and four external small capacitors support single-supply operation from 3V to 5.5V. The MAX232 supports data signal transmission rates up to 500kbits, with driver output slew rates up to 30V/μs.
Applications
- Industrial PC
- Wired networking
- Data center and enterprise computing
- Battery-powered systems
- Laptops
- Handheld devices
Key features
- Compliant with TIA/EIA-232-F and ITU V.28 standards
- Supports external capacitors as small as 0.1μF
- Powered by 3V to 5.5V supply
- Data rate up to 500Kbps
- Two drivers and two receivers
- Serial pins with enhanced ESD protection: HBM ±15kV, IEC 61000-4-2: Contact Discharge ±10kV, Air Discharge ±15kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232ESE+T-JSM#C33960114JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 2,645 | ₹42.55 · 2,645 in stock | View |
 | MAX3232EIDR-JSM#C46596311JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 3,260 | ₹41.62 · 3,260 in stock | View |
 | SN65C3232EDR-JSM#C46628686JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 4,489 | ₹59.42 · 4,489 in stock | View |
 | MAX3232CDR-JSM#C46596312JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 1,910 | ₹35.43 · 1,910 in stock | View |
 | MAX3232IDR-JSM#C41382480JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 505 | ₹41.99 · 505 in stock | View |
