JSMSEMIDatasheet (PDF)

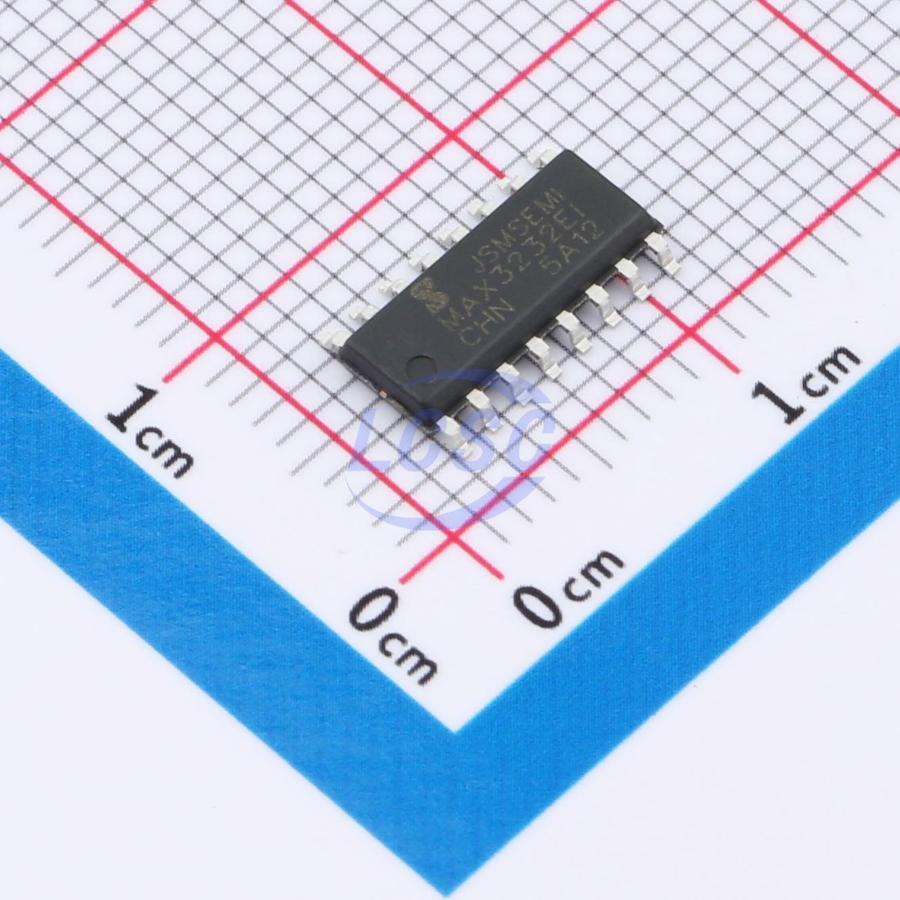

MAX3232EIDR-JSM
Transceiver 3V~5.5V 500Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MAX3232EIDR-JSM
- Store part #
- C46596311
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,260 in stock
#C46596311
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹41.62 | ₹208.10 |
| 50+ | ₹32.31 | ₹1,615.50 |
| 150+ | ₹28.31 | ₹4,246.50 |
| 500+ | ₹23.34 | ₹11,670.00 |
| 2,500+ | ₹22.97 | ₹57,425.00 |
| 5,000+ | ₹21.63 | ₹1,08,150.00 |
5 × ₹41.62
₹208.10
excl. GST
₹245.56 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3232EIDR-JSM
₹208.10 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 500Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.316 g
Overview
The MAX3232E interface IC integrates two drivers, two receivers, and a dual charge pump circuit, with ±15kV IEC ESD protection on the serial port. The device complies with TIA/EIA-232-F and provides an electrical interface between asynchronous communication controllers and serial port connectors. The internal charge pump, combined with four small external capacitors, supports single-supply operation from 3V to 5.5V. The MAX3232E supports data rates up to 500kbit/s with a driver output slew rate of up to 30V/μs.
Applications
- Industrial PC
- Wired Networking
- Data Center and Enterprise Computing
- Battery-Powered Systems
- Laptop Computers
Key features
- Compliant with TIA/EIA-232-F and ITU V.28 standards
- Supports 0.1μF small external capacitors
- Powered by 3V to 5.5V Vcc supply
- Data rates up to 500kbps
- Integrated dual drivers and dual receivers
- Enhanced ESD protection on serial pins
- HBM: ±15kV
- IEC 61000-4-2: contact discharge ±10kV, air discharge ±15kV
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MAX3232CDR-JSM#C46596312JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 1,910 | ₹35.43 · 1,910 in stock | View |
 | MAX3232ESE+T-JSM#C33960114JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 2,645 | ₹42.55 · 2,645 in stock | View |
 | MAX232ESE+T-JSM#C41421781JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 2,410 | ₹47.42 · 2,410 in stock | View |
 | SN65C3232EDR-JSM#C46628686JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 4,489 | ₹59.42 · 4,489 in stock | View |
 | MAX3232IDR-JSM#C41382480JSMSEMI · SOP-16 | JSMSEMI | SOP-16 | 505 | ₹41.99 · 505 in stock | View |
