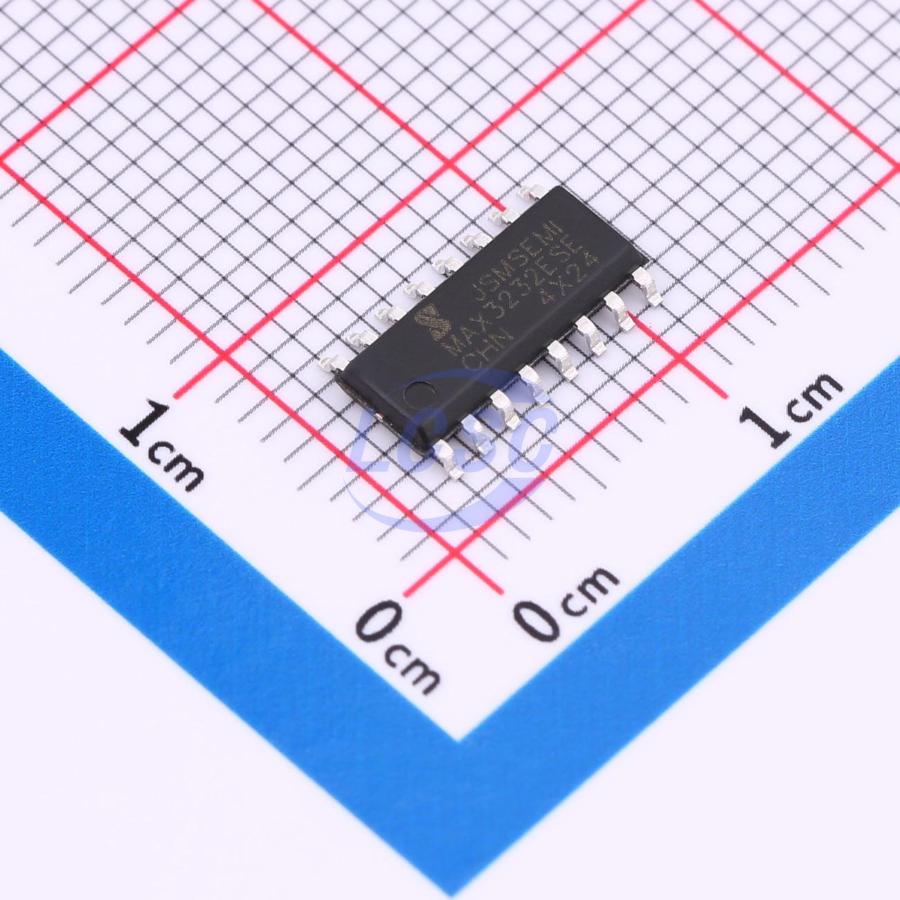

MAX3232ESE+T-JSM
Transceiver 3V~5.5V 500Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
MAX3232 RS-232 Line Driver and Receiver
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MAX3232ESE+T-JSM
- Store part #
- C33960114
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,565 in stock
#C33960114
Stock & price checked 35 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹42.55 | ₹212.75 |
| 50+ | ₹33.23 | ₹1,661.50 |
| 150+ | ₹29.24 | ₹4,386.00 |
| 500+ | ₹24.26 | ₹12,130.00 |
| 2,500+ | ₹22.97 | ₹57,425.00 |
| 5,000+ | ₹21.63 | ₹1,08,150.00 |
5 × ₹42.55
₹212.75
excl. GST
₹251.05 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3232ESE+T-JSM
₹212.75 for 5 + GST
Specifications
- Type
- Transceiver
- Voltage - Supply
- 3V~5.5V
- Data Rate
- 500Kbps
- Operating Temperature
- -40℃~+85℃
- ESD Protect
- ±15kV
- charge pump
- Yes
- Number of Drivers
- 2
- Features
- Short-Circuit Protection
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.332 g
Overview
The MAX3232 interface IC consists of two driver channels, two receiver channels, and a dual charge pump circuit, with ±15kV IEC ESD protection on the serial port. The MAX3232 complies with TIA/EIA-232-F requirements, providing electrical interface functionality between asynchronous communication controllers and serial port connectors. The on-chip charge pump and four small external capacitors support single-supply operation from 3V to 5.5V. The MAX3232 supports data signaling rates up to 500kbit/s, with a driver output slew rate of up to 30V/μs.
Applications
- Industrial PC
- Wired Networking
- Data Center and Enterprise Computing
- Battery-Powered Systems
- Laptops
- Handheld Devices
Key features
- Compliant with TIA/EIA-232-F and ITU V.28 standards
- Supports external capacitors as small as 0.1μF
- Powered by 3V to 5.5V supply
- Data rate up to 500Kbps
- Enhanced ESD protection on two driver and two receiver serial pins
- HBM: ±15kV
- IEC 61000-4-2: Contact discharge ±10kV, air discharge ±15kV
