JSMSEMIDatasheet (PDF)

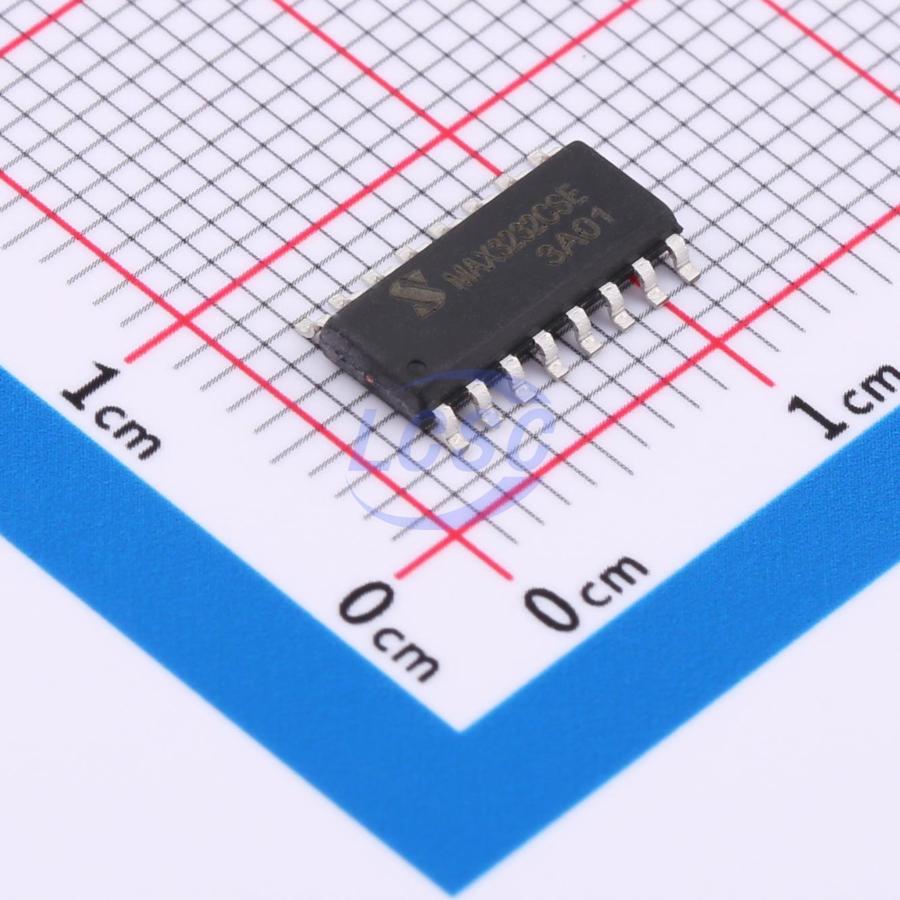

MAX3232CSE+T-JSM
3V~5.5V Transceiver 250Kbps SOP-16 Drivers, Receivers, Transceivers RoHS
SOP-16ROHS CompliantActive
RS-232 Line Transceivers
- Manufacturer
- JSMSEMI
- Manufacturer part #
- MAX3232CSE+T-JSM
- Store part #
- C7529465
- Package / case
- SOP-16
- Category
- Drivers, Receivers, Transceivers
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,766 in stock
#C7529465
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹46.50 | ₹46.50 |
| 10+ | ₹41.29 | ₹412.90 |
| 30+ | ₹38.90 | ₹1,167.00 |
| 100+ | ₹36.08 | ₹3,608.00 |
| 500+ | ₹34.77 | ₹17,385.00 |
| 1,000+ | ₹34.12 | ₹34,120.00 |
1 × ₹46.50
₹46.50
excl. GST
₹54.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
MAX3232CSE+T-JSM
₹46.50 for 1 + GST
Specifications
- Voltage - Supply
- 3V~5.5V
- Type
- Transceiver
- Data Rate
- 250Kbps
- Operating Temperature
- 0℃~+70℃
- ESD Protect
- ±8kV
- charge pump
- Yes
- Number of Drivers
- 2
- Number of Receivers
- 2
- Quiescent Supply Current
- 1mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.285 g
Overview
The MAX3232CSE +T has two receivers and two drivers, and a dual charge-pump circuit. The device meets the requirements of TIA/EIA-232-F and provides the electrical interface between an asynchronous communication controller and the serial-port connector. The charge pump and four small external capacitors allow operation from a single 3.0V to 5.5V supply. The device operates at data signaling rates up to 250kbit/s and a maximum of 35V/μs driver output slew rate.
Key features
- Exceeds ±8KV ESD Protection(HBM) for RS-232 I/O Pins
- Meets the Requirements of TIA/EIA-232-F and ITU V.28 Standards
- Operates With 3.0V to 5.5V VCC Supply
- Operates Up To 250kbit/s Data Rate
- Two Drivers and Two Receivers
- External Capacitors 4×0.1 μF
- Accepts 5.0V Logic Input With 3.3V Supply
